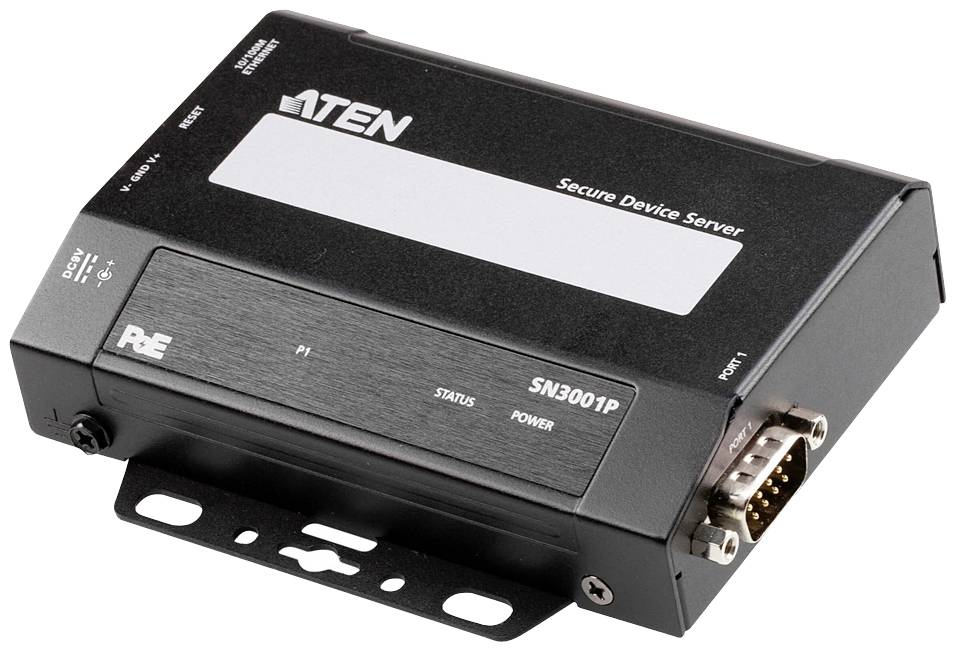

ATEN 1-Port RS-232 Secure Device Server
EAN:
Part number:
Item no:
Highlights & Details
ATEN 1-Port RS-232 Secure Device Server
- 1 serial RS-232 port for secure serial data transfer via Ethernet
- Secure Real COM, Secure TCP Server/Client, Secure Serial Tunneling Server/Client, Console Management (SSH), and Direct Console Management (SSH)
- Standard operating modes – Real COM, TCP Server/Client, Serial Tunneling Server/Client, UDP, Console Management (Telnet) and Console Management Direct (Telnet)
- Real COM-, Real TTY- and Fixed TTY-drivers for Windows, Linux and UNIX
- Convenient console management access via Java Viewer (SSH/Telnet) or third-party clients such as PuTTY
- Simple console port access via Java Viewer and SUN Solaris ready ("break-safe")
- Multiple users can access the same port simultaneously - up to 16 connections per port
Technical specifications
- Product type
Secure Device Server
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
210 g
- Length
117 mm
- Width
98 mm
- Height
26 mm
- Dim
(L x W x H) 117 x 98 x 26 mm
- Depth
0.000 mm
- No. of 10 Gb LAN ports
1 x
- Power consumption (ON)
0.975 W
- No. of serial ports
1 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887623 ATEN 1-Port RS-232 Secure Device Server
Description
ATEN ALTUSUS™ SN3000 Series Secure Device Servers are external IP-based network devices that securely connect older RS-232 serial devices to an Ethernet network for remote access from any computer at any location.
The SN3000 series is ideal for industrial process control applications, as supervisory control and data acquisition (SCADA) systems are widely used in many industries to collect data from PLCs, measuring devices and sensors via serial interfaces. The SN3000 series translates data bi-directional between serial and Ethernet formats and allows access to data from all data collection devices from local and remote locations over an Ethernet network.
The SN3000 series has a number of useful operating modes. It supports secure TCP server/client, secure serial tunneling server/client, secure real-COM and console management modes for security-critical applications such as Telecommunications, access control and remote site management. In addition, the IEEE 802.3af-compatible models can be supplied with power from a PoE-PSE-device without additional power supply.
This text is machine translated.
The SN3000 series is ideal for industrial process control applications, as supervisory control and data acquisition (SCADA) systems are widely used in many industries to collect data from PLCs, measuring devices and sensors via serial interfaces. The SN3000 series translates data bi-directional between serial and Ethernet formats and allows access to data from all data collection devices from local and remote locations over an Ethernet network.
The SN3000 series has a number of useful operating modes. It supports secure TCP server/client, secure serial tunneling server/client, secure real-COM and console management modes for security-critical applications such as Telecommunications, access control and remote site management. In addition, the IEEE 802.3af-compatible models can be supplied with power from a PoE-PSE-device without additional power supply.
This text is machine translated.
Features
- Cabling technology: 10/100Base-T(X). Power source: Direct current
- PoE
- Max. power consumption: 1.22 W
- Power consumption (standard mode) 0.975 W. Supported security algorithms: 802.1x RADIUS
- 2048 bit RSA
- TLS LED indicators: LAN
- Power
- Status Weight: 210 g
- Dimensions (WxDxH) 117 x 98 x 26 mm
- Package width 59 mm
Scope of delivery
- 1x Secure Device Server
- 1x terminal strip
- 1x foot pad set (4 pieces)
- 1x mounting kit for DIN rail
- 1x user manual
