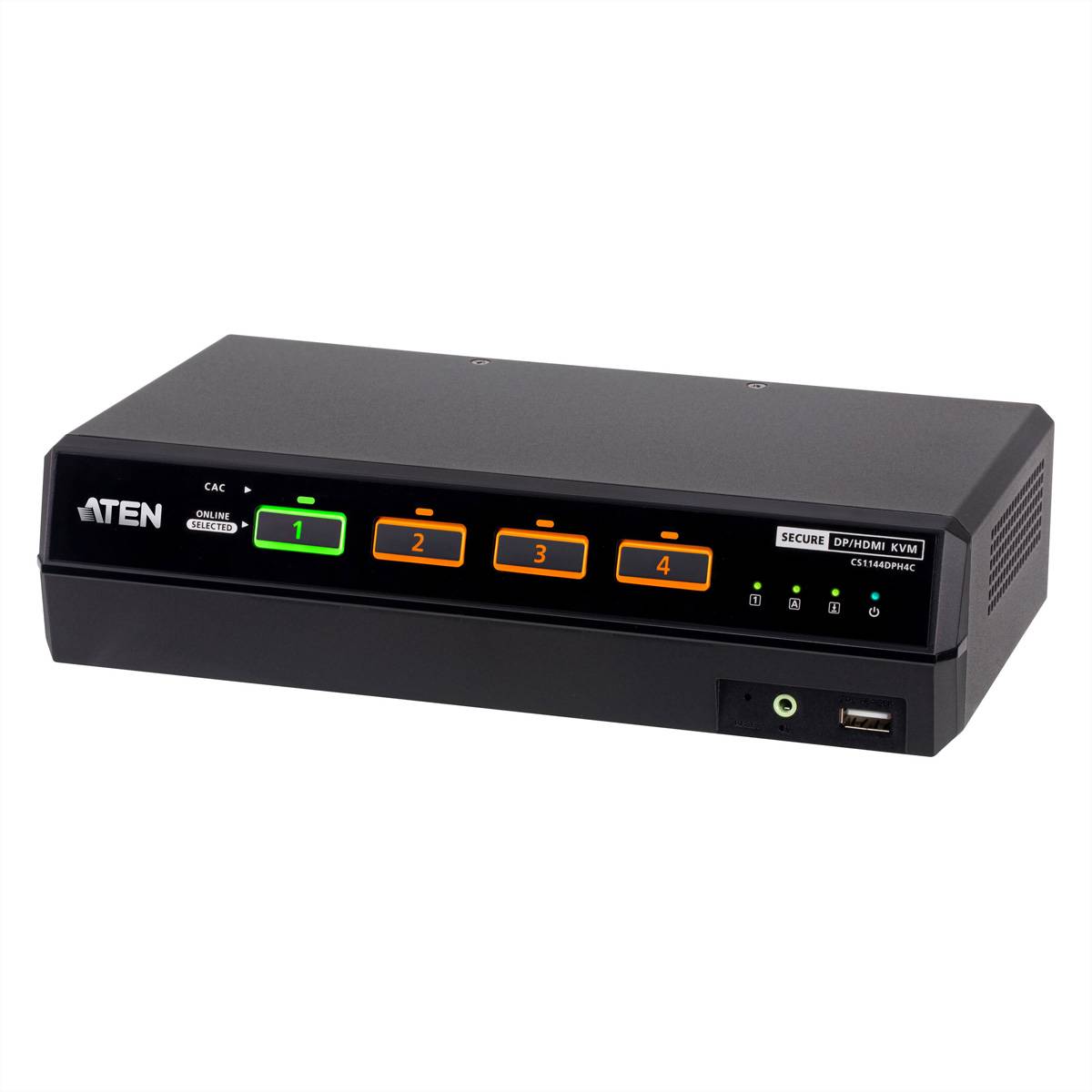

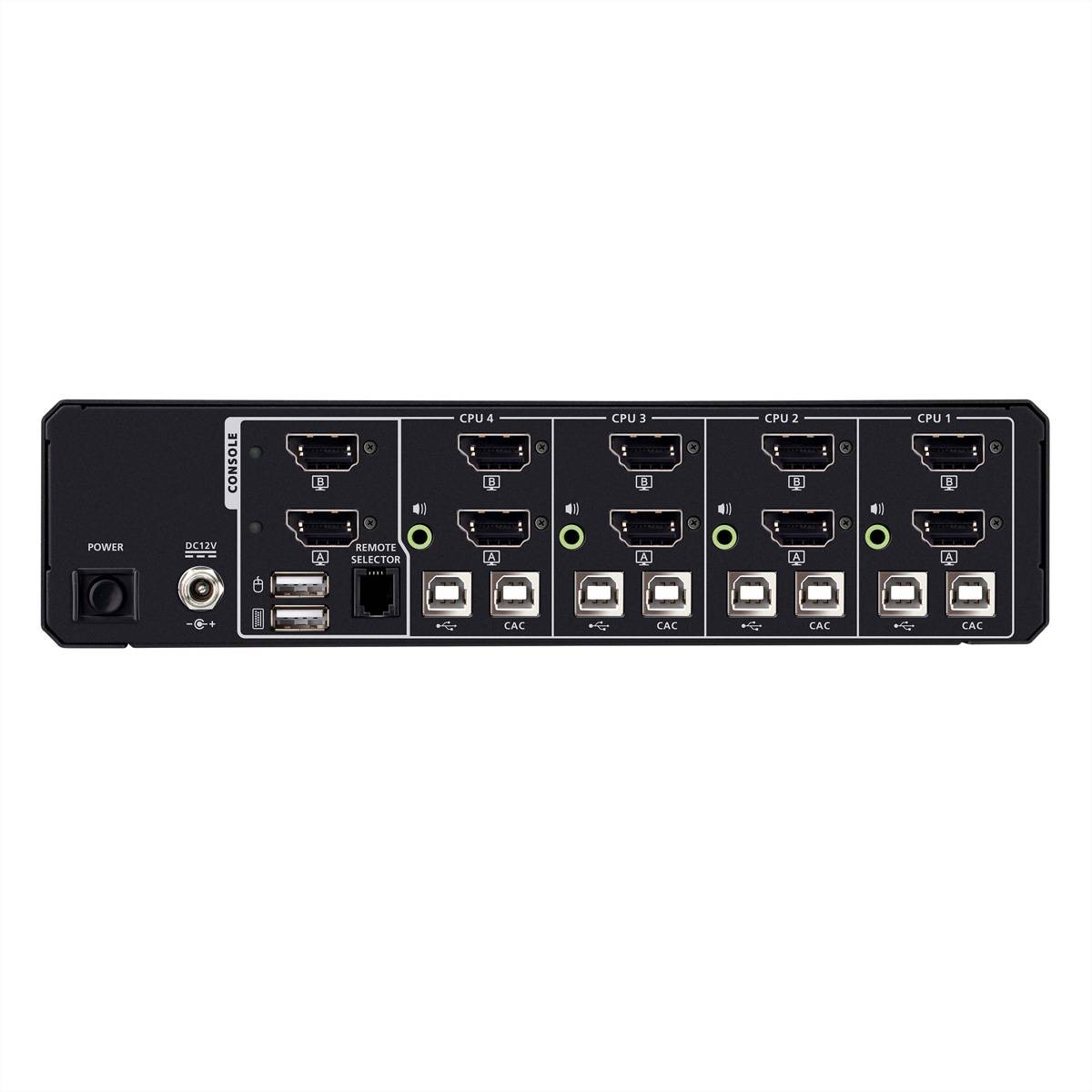

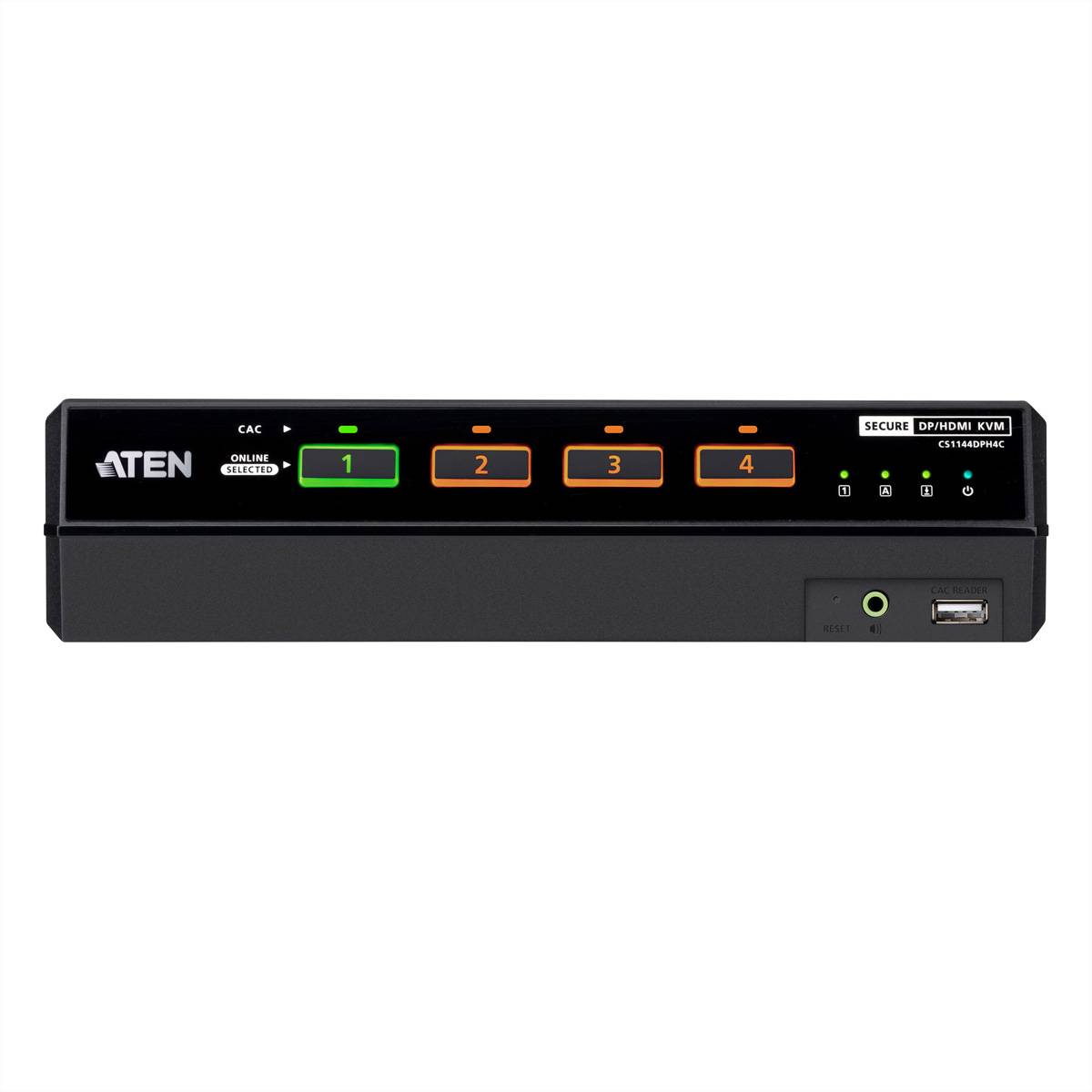

ATEN ATEN CS1144DPH4C 4-Port USB 5K DP/HDMI, KVM changeover switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ATEN ATEN CS1144DPH4C 4-Port USB 5K DP/HDMI, KVM changeover switch
- Rack mounting, black
- Number of computers: 4
- Keyboard Port type: USB Mouse port type: USB Video Port type: HDMI/DisplayPort
- 5K ultra HD 5120 x 2880 pixels
- Case material: metal
- Direct current 29.16 W External power supply
Technical specifications
- HD type 5K ultra HD
- Power source: Direct current
- Product type
KVM changeover switch
- Factory colour
Black
- Weight
1.57 kg
- Width
144.9 mm
- Height
60 mm
- Dim
(W x H x D) 144.9 x 60 x 245 mm
- Depth
245 mm
- Display resolution
5120 x 2880 Pixel
- Frame rate
144 Hz
- No. of DisplayPort
8 x
- No. of HDMI ports
8 x
- No. of USB A 2.0 ports
1 x
- Material (details)
Metal
- Power consumption (ON)
29.16 W
- Input voltage
100 - 240 V
- Push button
yes
- Operating temperature (T-T)
0 - 40 °C
- Console USB ports quantity
2
- Headphone outputs
5
- DC-in jack
yes
- External power adapter
yes
- Number of computers controlled
4
- USB 2.0 Type-B ports quantity
8
- Manual
yes
- Audio connections
yes
- Console DisplayPorts ports quantity
2
- Console HDMI ports quantity
2
- Rack mounting
yes
- Rubber feet
yes
- Operating relative humidity (H-H)
0 - 80 %
- RJ-11 ports quantity
1
- Storage temperature (T-T)
-20 - 60 °C
- Built-in display
no
Documents & Downloads
Datasheet
Datasheet 3796814 ATEN ATEN CS1144DPH4C 4-Port USB 5K DP/HDMI, KVM changeover switch
User & Safety Instructions
User & Safety Instructions 3796814 ATEN ATEN CS1144DPH4C 4-Port USB 5K DP/HDMI, KVM changeover switch
Description

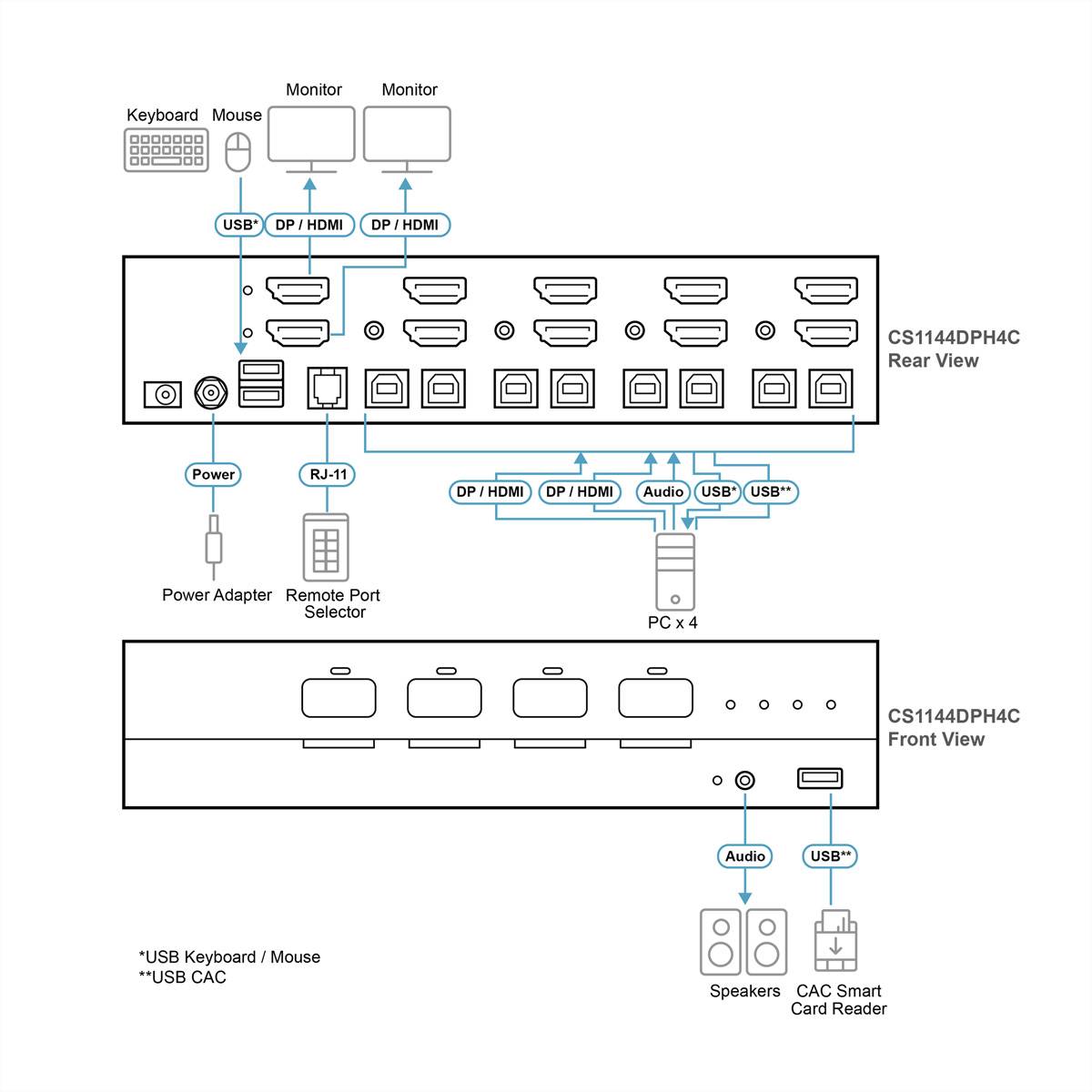

Meets the security requirements of PSD PP v4.0 The ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C has been specially designed to meet the stringent security requirements of defense and messaging services. The ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C complies with the PSD PP v4.0 (protection profile for peripheral sharing device version 4.0) standard, which has been certified by the National Information Assurance Partnership (NIAP). The ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C provides isolation between computer sources and peripherals, while a single keyboard, mouse, monitor, speaker set and common access card (CAC) reader can be shared from the connected computers of various security classes. PSD PP v4.0 compliance ensures that shared peripheral functions provide maximum user security when switching the port focus and prevent unauthorized data flows or leaks between the connected sources.
This text is machine translated.
Scope of delivery
- 1x CS1144DPH4C 4-port USB 5K DisplayPort/HDMI Dual display universal secure KVM switch
- 1x power supply, 1x foot pad set, 1x port name plates
- 1x HDMI cable lock set, 1x user manual
