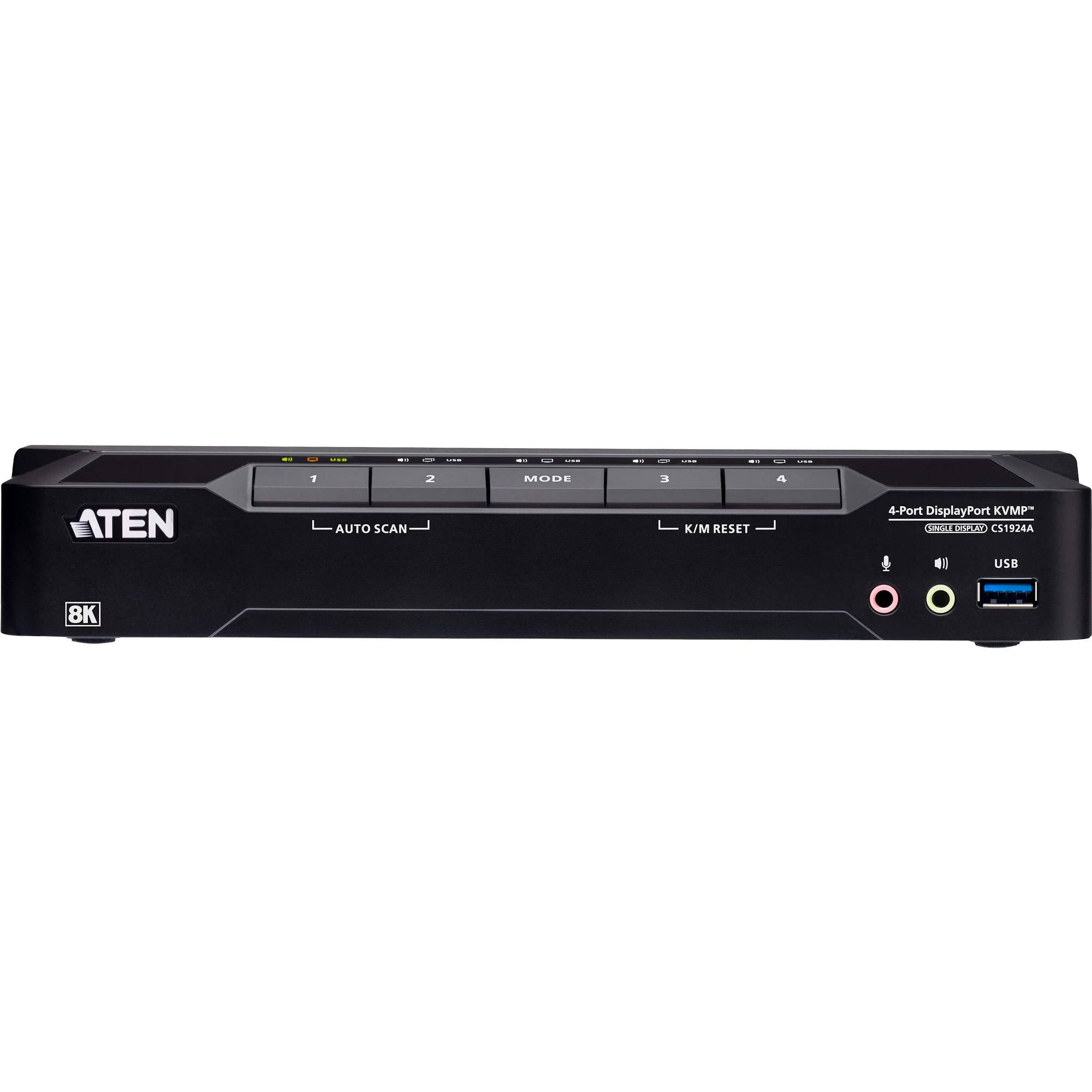

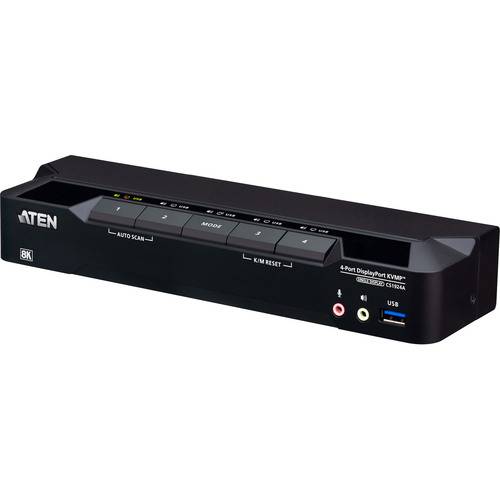

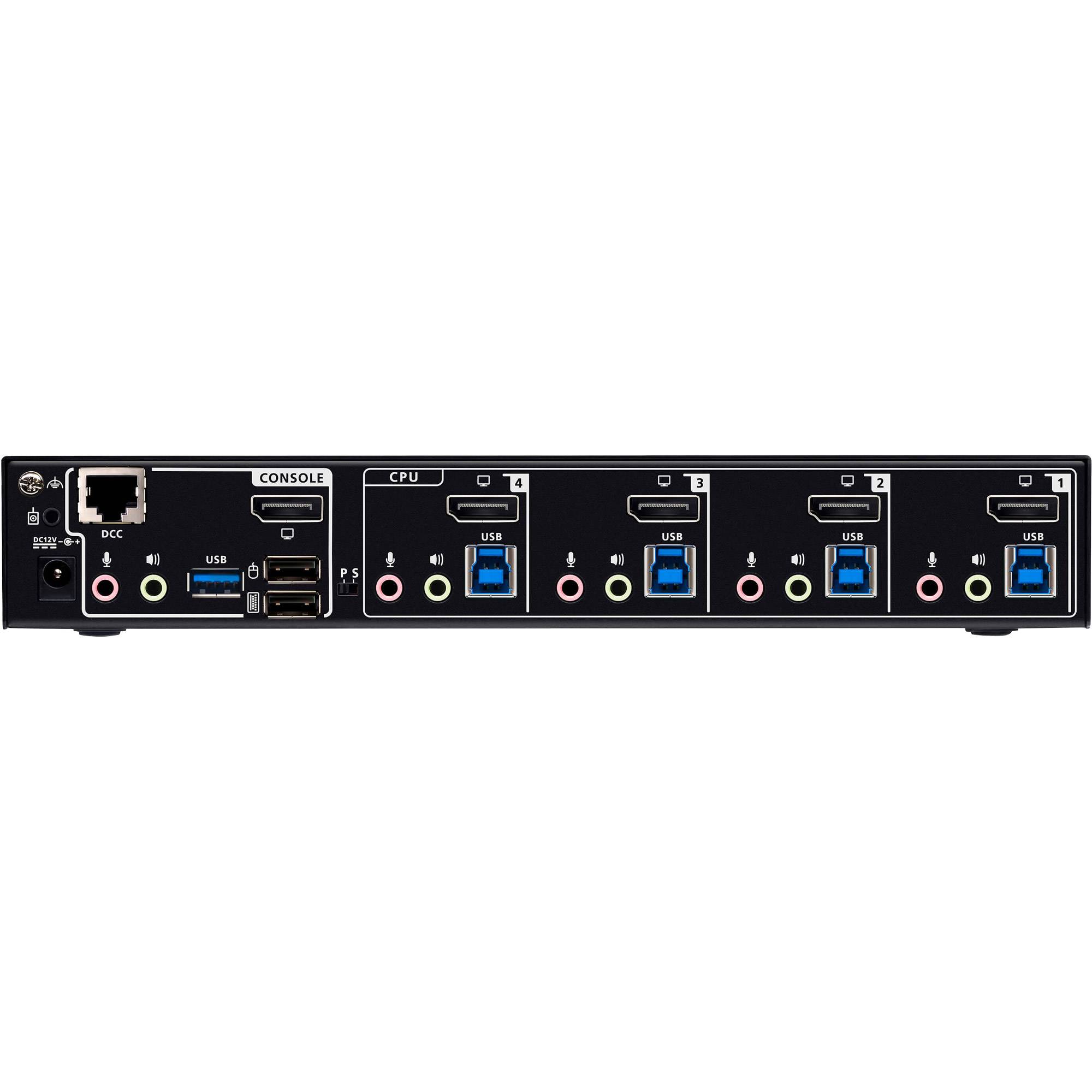

ATEN ATEN CS1924A 4-Port USB 3.0 8K DisplayPo KVM changeover switch DisplayPort 7680 x 4320 Pixel
EAN:
Part number:
Item no:
Highlights & Details
ATEN ATEN CS1924A 4-Port USB 3.0 8K DisplayPo KVM changeover switch
- Black
- Number of computers: 4
- Keyboard Port type: USB Mouse port type: USB video Port type: DisplayPort
- 8K Ultra HD 7680 x 4320 pixels
- Direct current 3.18 W
Technical specifications
- USB-Plug USB Typ-A, USB Typ-B
- HD type 8K Ultra HD
- Power source: Direct current
- Product type
KVM changeover switch
- No. of switchable PCs
4 pc(s)
- Video via
DisplayPort
- Video resolution
7680 x 4320 Pixel
- Rack mount option
Yes
- Switch function
Hot key
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
620 g
- Length
26.00 cm
- Width
73 mm
- Height
43 mm
- Dim
(L x W x H) 26.00 cm x 73 mm x 43 mm
- Depth
260 mm
- Display resolution
7680 x 4320 Pixel
- Frame rate
240 Hz
- No. of DisplayPort
4 x
- Power consumption (ON)
3.18 W
- Input voltage
12 V
- Push button
yes
- Operating temperature (T-T)
0 - 50 °C
- Storage relative humidity (H-H)
0 - 80 %
- Number of microphone inputs
4
- USB hub
yes
- Console USB ports quantity
2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
- Headphone outputs
4
- DC-in jack
yes
- Number of computers controlled
4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
- Video bandwidth
60 Hz
- Console DisplayPorts ports quantity
1
- Console RJ-45 ports quantity
1
- Rack mounting
no
- Quick installation guide
yes
- Operating relative humidity (H-H)
0 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- Built-in display
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3796799 ATEN ATEN CS1924A 4-Port USB 3.0 8K DisplayPo KVM changeover switch DisplayPort 7680 x 4320 Pixel
Description
Control four computers with a single USB keyboard and mouse, while the USB peripherals are shared and you enjoy videos in ultra-high resolution.
The CS1924A, based on ATEN's proven enterprise design, is part of Aten's first 8K-supported KVM switch series. It offers professional performance and reliable control of several computers from a single console.
Ultra high resolution for versatile professional applications
The CS1924A delivers up to 8K@60 Hz and 4K@120 Hz and offers precise, clear pictures for demanding tasks. It enables users to control multiple computers from a single console, supports efficient multitasking and high-resolution workflows and also ensures a tidy and organized workplace.
Extend to multiple monitors and full screen compatibility
The daisy-chain function also enables multi-display configurations with a single keyboard and mouse, WAS optimizes the workflow with multiple monitors and increases productivity in complex tasks. Thanks to DisplayPort Dual-Mode (DP++)-support, the switch can be connected to HDMI or DVI-screens via compatible adapter, which enhances the compatibility with a variety of monitors.
Flexible and intuitive switching for efficient workflows
Various switching methods, including front-panel push buttons, a remote port selector, hotkeys, mouse switch, and RS-232 commands, allow users to seamlessly control connected computers. This flexibility enables fast, efficient workflow management tailored to individual preferences and ensures smooth transitions between multiple systems.
Efficient shared use of peripherals and easy installation
The integrated USB 3.1 Gen 1 hub provides data transfer speeds of 5 Gbps, enabling fast sharing of peripherals between connected computers. All required DisplayPort and USB cables and a power supply are included and allow quick plug-and-play setup, so users have a tidy, organized and fully functional workplace right from the start.
This text is machine translated.
Features
- Up to 7680 × 4320 at 60 Hz, 5120 × 2880 at 60 Hz and 4096 × 2160 at 120 Hz
- Supports daisy-chaining for Dual display configurations by connecting two CS1924A devices, allowing two screens to be controlled from a single connection

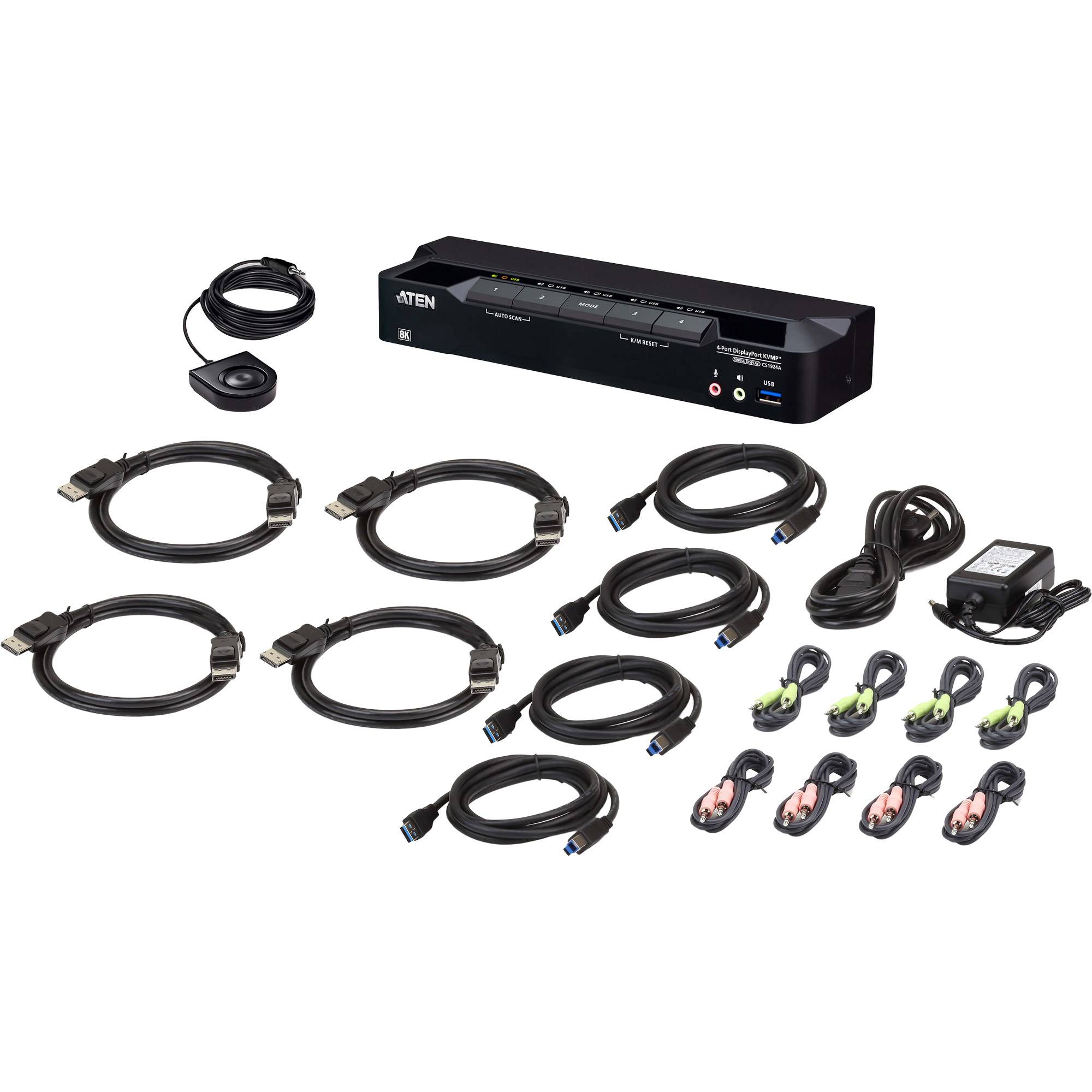

- All DisplayPort-/USB-cable and power supply included in the delivery for an easy installation
- Computer selection via push buttons, remote port selector, hotkeys, mouse, and RS-232 commands
