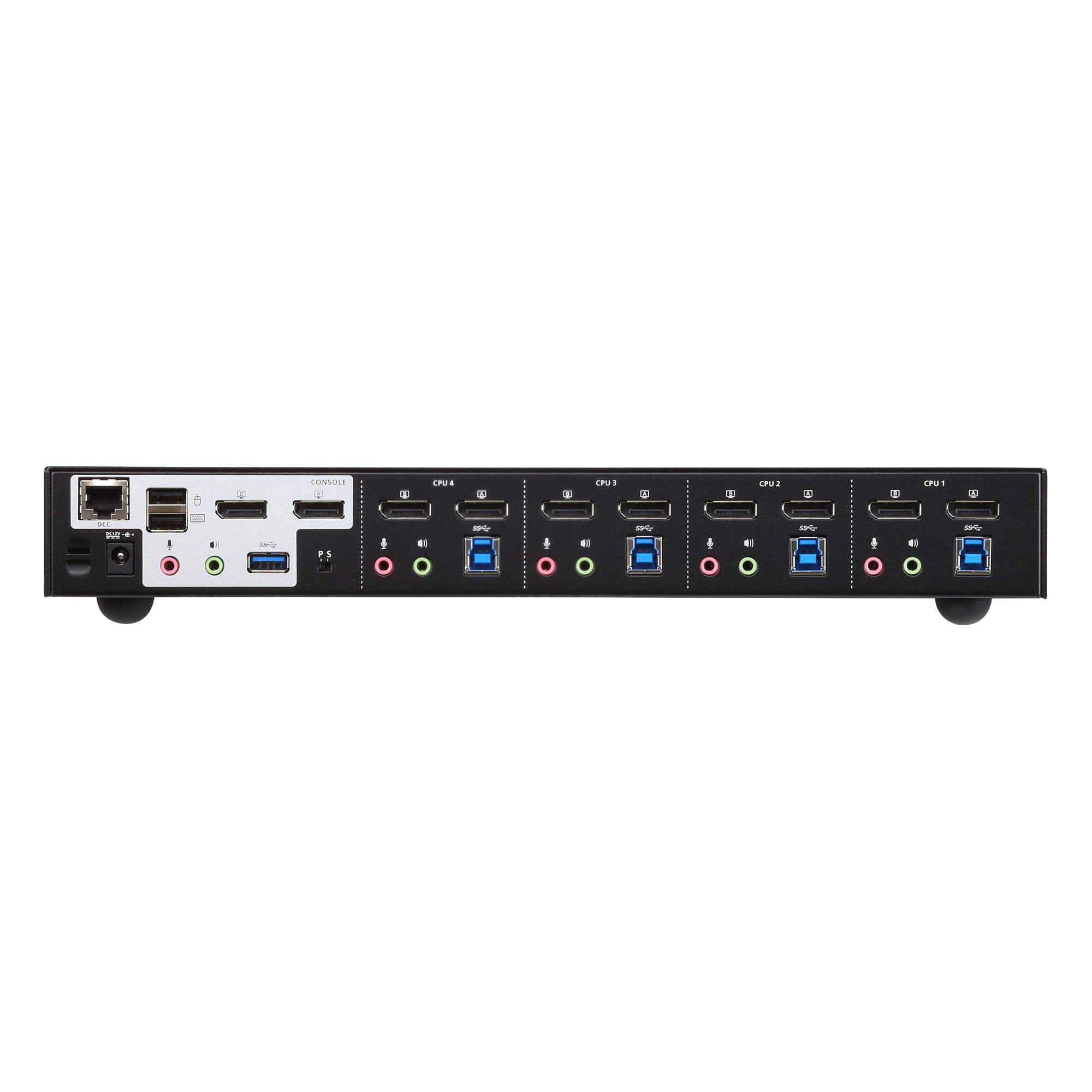

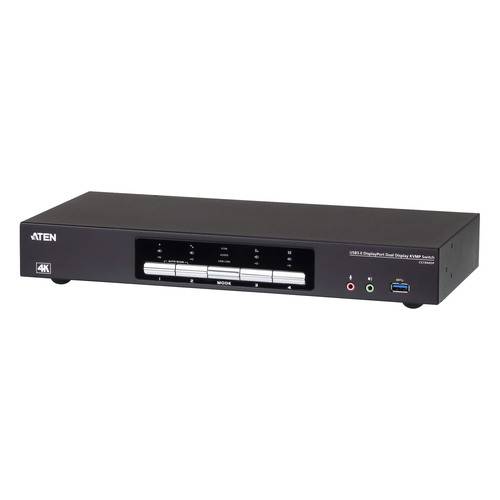

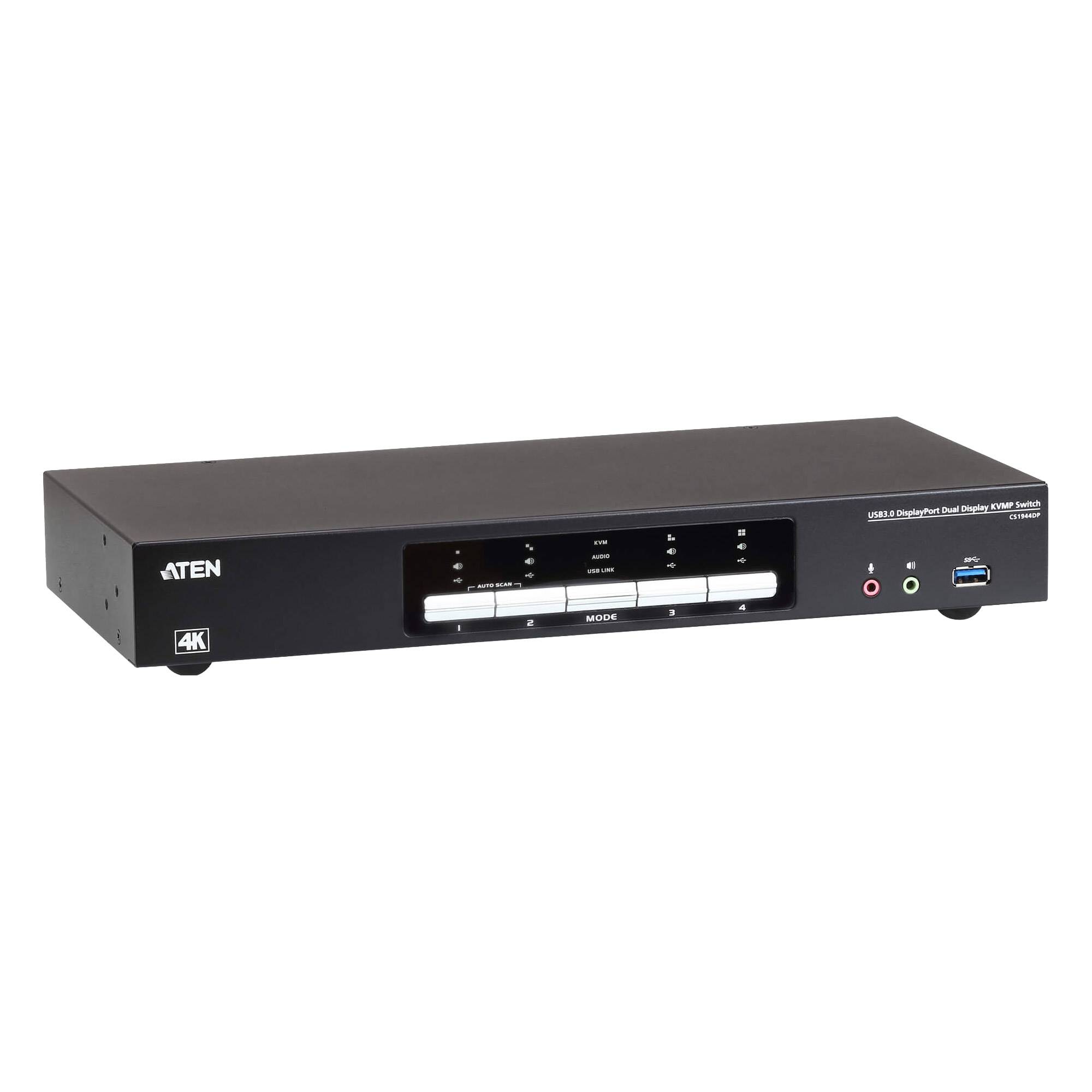

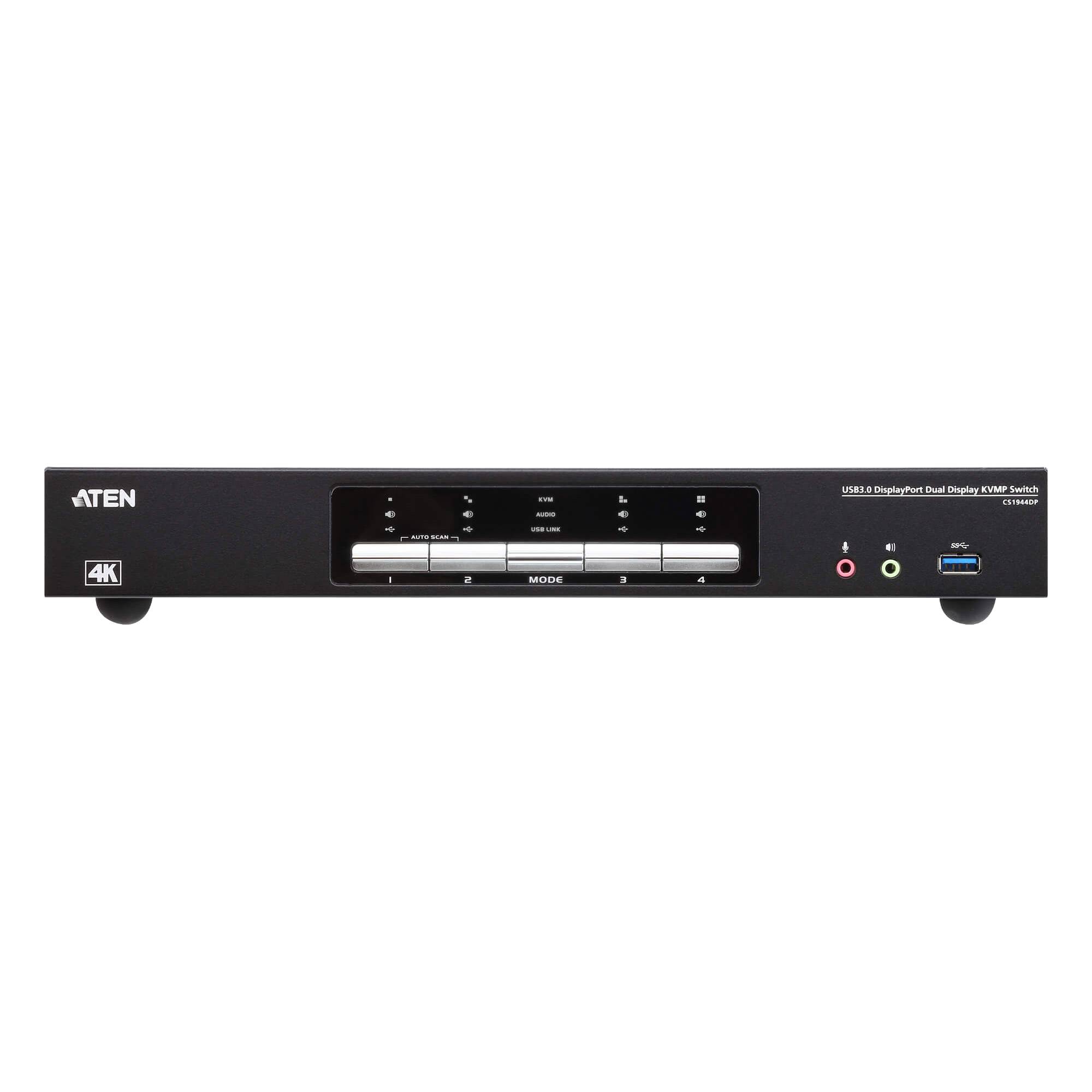

ATEN ATEN CS1944DPA 4-Port USB 3.0 8K DP KVM, KVM changeover switch DisplayPort 7680 x 4320 Pixel
EAN:
Part number:
Item no:
Highlights & Details
ATEN ATEN CS1944DPA 4-Port USB 3.0 8K DP KVM, KVM changeover switch
- Black
- Number of computers: 4
- Keyboard Port type: USB Mouse port type: USB video Port type: DisplayPort
- 8K Ultra HD 7680 x 4320 pixels
- Direct current 3.18 W
Technical specifications
- USB-Plug USB Typ-A, USB Typ-B
- HD type 8K Ultra HD
- Power source: Direct current
- Product type
KVM changeover switch
- No. of switchable PCs
4 pc(s)
- Video via
DisplayPort
- Video resolution
7680 x 4320 Pixel
- Switch function
Key
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
620 g
- Length
26.00 cm
- Width
71.8 mm
- Height
43 mm
- Dim
(L x W x H) 26.00 cm x 71.8 mm x 43 mm
- Depth
260 mm
- Display resolution
7680 x 4320 Pixel
- Frame rate
240 Hz
- No. of DisplayPort
8 x
- Power consumption (ON)
3.18 W
- Input voltage
12 V
- Push button
yes
- Operating temperature (T-T)
0 - 50 °C
- Storage relative humidity (H-H)
0 - 80 %
- Number of microphone inputs
6
- USB hub
yes
- Console USB ports quantity
2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
4
- Headphone outputs
6
- DC-in jack
yes
- Number of computers controlled
4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
- Video bandwidth
60 Hz
- Console DisplayPorts ports quantity
1
- Console RJ-45 ports quantity
1
- Rack mounting
no
- Quick installation guide
yes
- Operating relative humidity (H-H)
0 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- Built-in display
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3796797 ATEN ATEN CS1944DPA 4-Port USB 3.0 8K DP KVM, KVM changeover switch DisplayPort 7680 x 4320 Pixel
Description
Support advanced multi-screen workflows with a dual-screen 8K KVM switch for creative, financial and professional applications.
4 DisplayPort PCs, 2 DisplayPort monitors, one KVM console
The CS1944DPA is a 4-port KVM switch, with which you can switch between projects easily on a desktop with 4 PCs and two screens. With a single keyboard and mouse you can keep your workplace clear and at the same time simplify the control of four DisplayPort computers via two DisplayPort screens. Whether you're a specialist looking for a way to make your day-to-day office work more productive, work as content creators, work in the home office, or looking for an immersive entertainment solution, the CS1944DPA is definitely the key to transforming your workspace.
Enhance your multi-tasking productivity with this KVM console with two screens:
● A flawless visual experience with up to 4K@120 and 8K@60
● ultra-wide image formats of 21:9 and 32:9 for an impressive viewing experience
● A 2-port USB 3.0 hub for sharing USB peripherals that supports data transfer rates up to 5 Gbps
● Compatibility with multiple systems, including Windows, MacOS, and Linux
This text is machine translated.
Features
- Up to 7680 × 4320 at 60 Hz, 5120 × 2880 at 60 Hz and 4096 × 2160 at 120 Hz
- Daisy-chain connectable quad-screen control for connecting two CS1944DPAs to manage up to four PCs and four screens with one keyboard and mouse
- All DisplayPort-/USB-cable and power supply included in the delivery for an easy installation. Computer selection via push buttons, remote port selector, hotkeys, mouse, and RS-232 commands
