Buy ATEN AV Converter VC840-AT-G [HDMI - BNC]

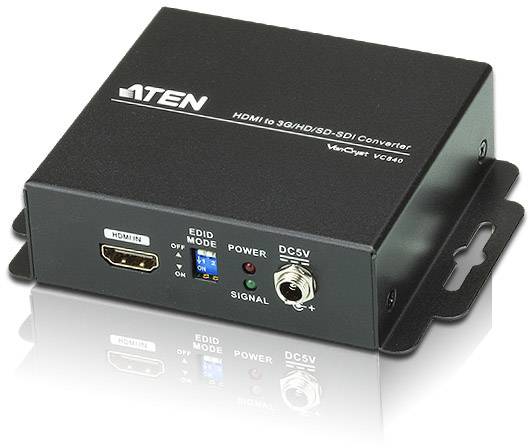

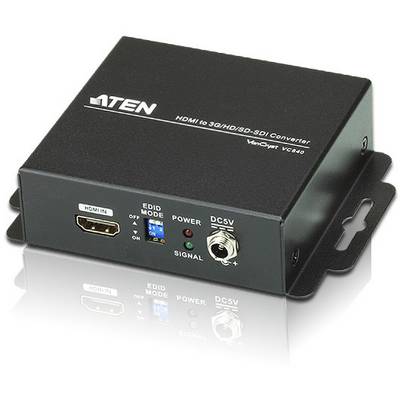

Black HDMI to 3G/HD/SD-SDI Converter with HDMI input, LED indicators for Power and Signal, DC 5V connection on the front panel.

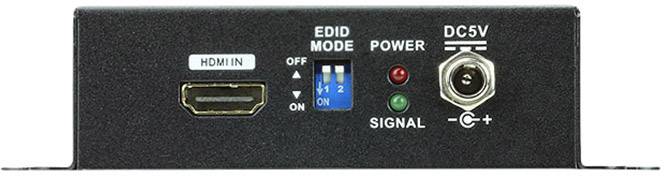

ATEN AV Converter VC840-AT-G [HDMI - BNC]-1

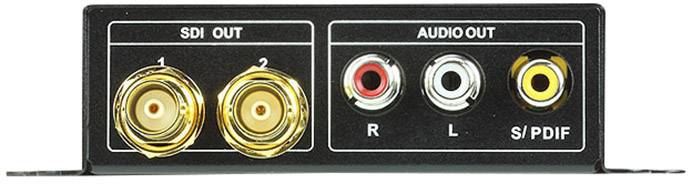

The image shows the rear panel of an electronic device with connections. On the left are two 'SDI OUT' ports, and on the right are three 'AUDIO OUT' sockets (R, L, S/PDIF).

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ATEN VC840 video converter

Highlights & Details

Converts the picture and sound of an HDMI input signal in real time and without loss In various 3G/HD/SD-SDI formats
Supports analogueue stereo and digital sound output via coaxial connection
2 SDI outputs with stabilized clock signal for two screens.
Selectable EDID settings and EDID learning function

Technical specifications

Product type: AV Converter

Connection type: BNC
HDMI
RCA

No. of A connectors: 1 x

Type A: HDMI socket

No. of B connections: 2 x

Type B: BNC socket
RCA socket (phono)

Factory colour: Black

Version: Converter

Cable use: AV

Signal flow direction: Unidirectional (uni)

Weight: 290 g

Length: 12.2 cm

Width: 10.7 cm

Height: 3.04 cm

Dim: (L x W x H) 12.2 x 10.7 x 3.04 cm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1879847 ATEN AV Converter VC840-AT-G [HDMI - BNC]

User & Safety Instructions

User & Safety Instructions 1879847 ATEN AV Converter VC840-AT-G [HDMI - BNC]

Description

The 3G HDMI to VC840/HD/SD-SDI converter professionally converts HD signals in real time. The SDI and HDMI signal conversion is fully digital. This means that the image and sound transmission is completely lossless. The VC840 has two SDI outputs with stabilized clock signal for two monitors. The VC840 is undoubtedly the safest way to convert signals when you need to view and transmit A/V content.

This text is machine translated.
