Buy ATEN CL1000M KVM console VGA Keyboard 1920 x 1200 Pixel

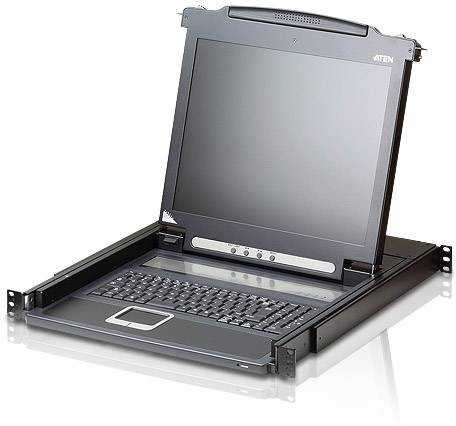

A pull-out KVM switch with screen and keyboard in a rack cabinet. Used for managing multiple servers from a single point.

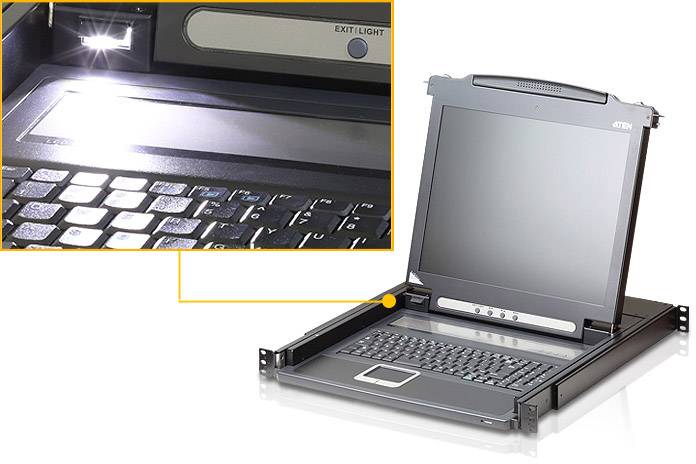

A KVM switch with a pull-out monitor shows a keyboard and a trackpad. A small light illuminates the keyboard.

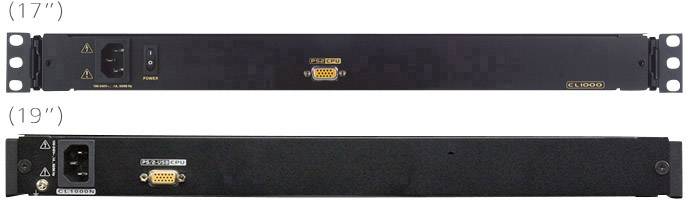

Two rackmount devices, with a 17-inch model on top featuring a power connection and VGA port, and a 19-inch model below with similar connections.

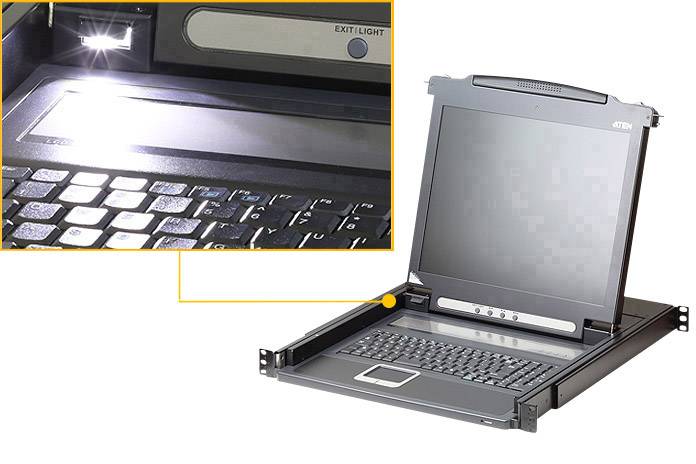

A laptop with a fold-out screen in the server cabinet, a close-up reveals an illuminated keyboard for improved visibility in a dark environment.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ATEN CL1000M KVM console

Highlights & Details

Exclusive LED lighting – developed by Aten for lighting the Keyboard and touchpad for visibility in low light
Integrated KVM console with a 17" or 19" LCD monitor With LED-background lighting in a rail housing with upper and lower distance For a problem-free use in a 1U high system rack

Technical specifications

Product type: KVM console

No. of switchable PCs: 1

Video via: VGA

Video resolution: 1920 x 1200 Pixel

Controller: Keyboard

Stackable: No

Rack mount option: Yes

Distributor/switch features: Rack-mounting option

Power supply (LOV): mains-powered

Factory colour: Black

Weight: 12.02 kg

Length: 48 cm

Width: 53.83 cm

Height: 4.4 cm

Dim: (L x W x H) 48 x 53.83 x 4.4 cm

Depth: 0.000 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1879637 ATEN CL1000M KVM console VGA Keyboard 1920 x 1200 Pixel

User & Safety Instructions

User & Safety Instructions 1879637 ATEN CL1000M KVM console VGA Keyboard 1920 x 1200 Pixel

Description

The CL1000 is an LCD KVM console, which serves as a front end for standard KVM switches. The CL1000 has an integrated 17" or 19" LCD panel with LED backlight, a full keyboard and a touchpad in a 1U slide-away™ housing that can be mounted in a rack.
Users who already have a switch can take advantage of the space-saving and efficient advantages of the CL1000 LCD KVM console without unnecessary costs for the purchase of a KVM switch. This model provides convenient access to pre-installed KVM switches on the rack.

This text is machine translated.
