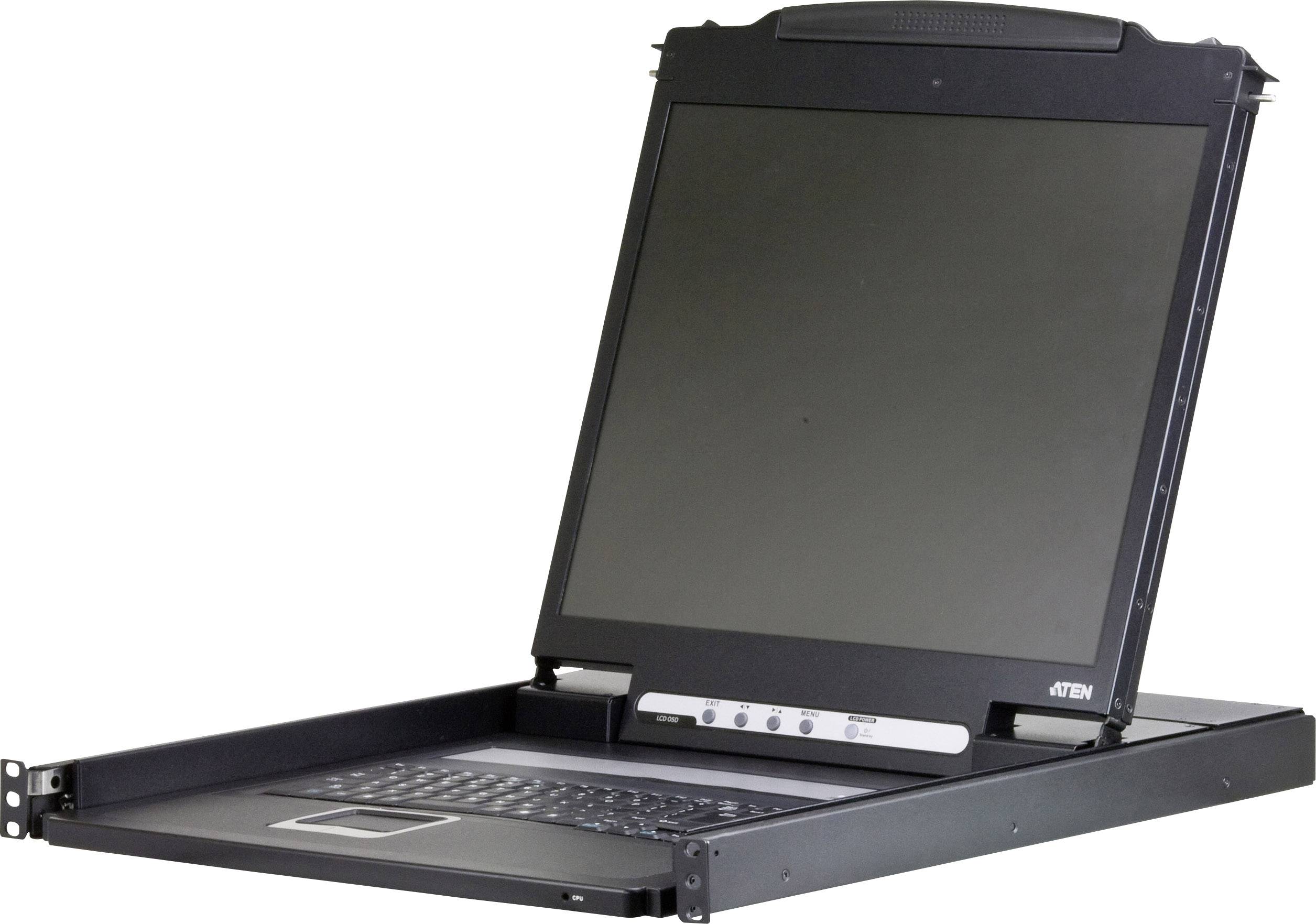

A folding monitor with integrated keyboard in a rack-mountable enclosure, suitable for server racks.

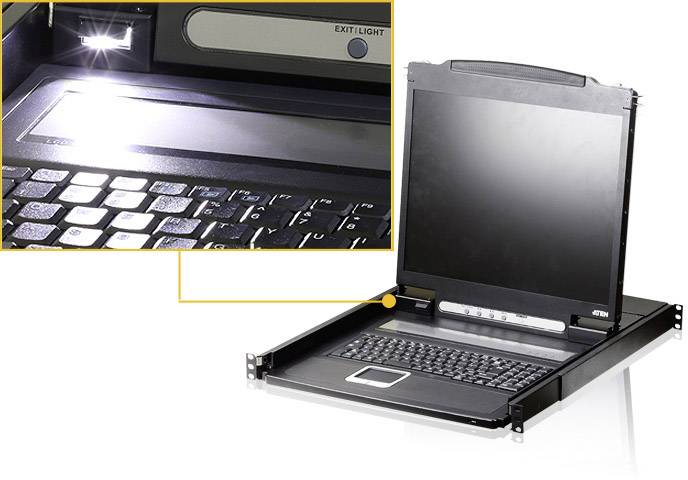

A rackmount laptop with a pull-out screen displays an illuminated keyboard and the print 'EXIT/LIGHT' above the keyboard.

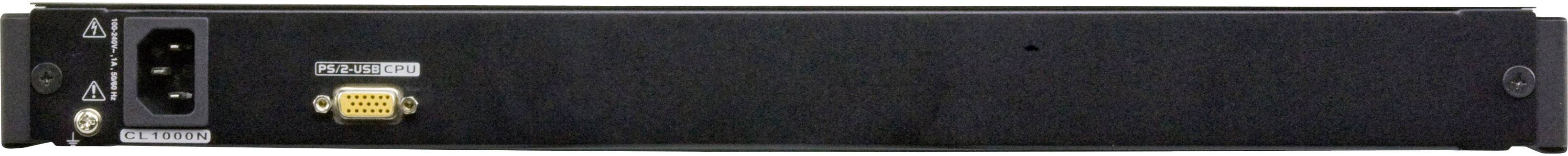

A black electronic device with a power socket and a VGA port on the rear, suitable for rack mounting.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ATEN CL1000N-ATA-XG KVM console

Highlights & Details

Integrated KVM console with 19-inch LCD screen
Exclusive LED lighting
Direct access to the console on the Rack

Technical specifications

Product type: KVM console

No. of switchable PCs: 1

Video resolution: 1280 x 1024 Pixel

Controller: PS/2

No. of USB 2.0 ports: 1 x

Rack mount option: Yes

Switch function: Mouse click

Factory colour: Black

Weight: 11060 g

Length: 44 mm

Width: 483 mm

Height: 585 mm

Port: 1 port

Dim: (L x W x H) 44 x 483 x 585 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1609603 ATEN CL1000N-ATA-XG 1 port KVM console PS/2 1280 x 1024 Pixel

User & Safety Instructions

User & Safety Instructions 1609603 ATEN CL1000N-ATA-XG 1 port KVM console PS/2 1280 x 1024 Pixel

Description

The CL1000N is a KVM Konsolmodul with built-in 19-inch LCD screen with LED backlighting, full-fledged keyboard and touchpad, in a 1U slot for 19-inch barrier is mounted. This model gives you the option of direct access to the console on the rack to get it on and the KVM switches to access there are installed.

This text is machine translated.

Features

Exclusive LED lighting - developed by calls for lighting the keyboard and touchpad for visibility in poor lighting conditions
Integrated KVM console with 19-inch LCD screen with LED-background lighting in retractable housing with free space on the top and bottom so that you can easily in a 1U slot in the rack can be used
LCD module up to 115° rotatable to set a ergonomic viewing angle
Improved design - can be installed by a single person (optional)
Compatible with most of the KVM Switches
Internal power supply
A high graphics resolution: • up to 1280 x 1024 at 75 Hz • Supports DDC, DDC2, DDC2B
DDC emulation for LCD monitor the LCD monitor automatically takes over the optimum picture settings of the individual connected computer
Supported languages for keyboard: English (US); English (GB); French; German; German (Swiss) Greek Hungarian Italian Japanese Korean;;;;;;;;; Russian Spanish Swedish Traditional Chinese.
