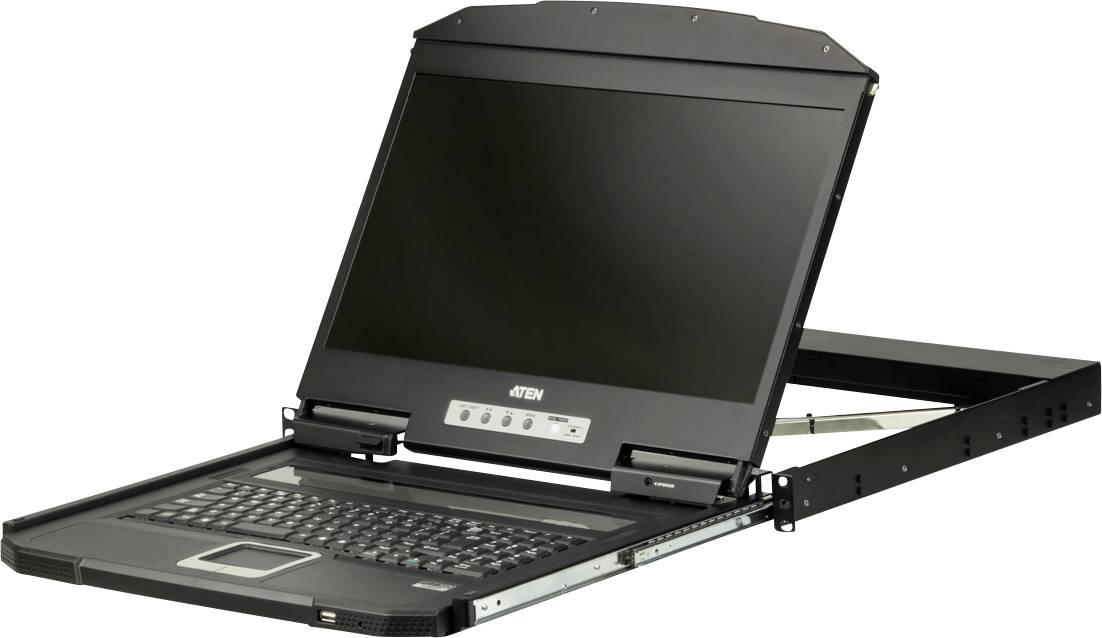

ATEN CL3100NX D KVM console VGA 1366 x 768 Pixel
EAN:
Part number:
Item no:
ATEN CL3100NX D KVM console
Technical specifications
- Product type
KVM console
- Video via
VGA
- Video resolution
1366 x 768 Pixel
- Rack mount option
Yes
- Switch function
Hot key
- Distributor/switch features
+ audio ports
- Factory colour
Black
- Weight
9.07 kg
- Length
42.80 mm
- Width
480 mm
- Height
477 mm
- Dim
(L x W x H) 42.80 x 480 x 477 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2341540 ATEN CL3100NX D KVM console VGA 1366 x 768 Pixel
Description
1U Single Rail widescreen LCD console (USB / VGA) with ultra-short depth
The CL3100 USB VGA LCD console is a single rail LCD KVM console with short depth and an 18.5" widescreen LCD monitor with LED backlight and integrated keyboard and touchpad. The short design fits in all 19" device cabinets and is particularly suitable for flat racks. The CL3100 offers an ideal space-saving solution for special environments, such as OB trucks (OB trucks) and compact control rooms.
The CL3100 is a dedicated front-end sliding console for compatible VGA KVM switches. For added convenience, users can manage the computer from an external console. The CL3100 offers a connection for an external USB mouse on the front side of the device. On the back side there are connections for the second KVM console (USB keyboard/mouse and VGA monitor). The CL3100 offers two mini stereo connections for connecting audio speakers.
This text is machine translated.
The CL3100 USB VGA LCD console is a single rail LCD KVM console with short depth and an 18.5" widescreen LCD monitor with LED backlight and integrated keyboard and touchpad. The short design fits in all 19" device cabinets and is particularly suitable for flat racks. The CL3100 offers an ideal space-saving solution for special environments, such as OB trucks (OB trucks) and compact control rooms.
The CL3100 is a dedicated front-end sliding console for compatible VGA KVM switches. For added convenience, users can manage the computer from an external console. The CL3100 offers a connection for an external USB mouse on the front side of the device. On the back side there are connections for the second KVM console (USB keyboard/mouse and VGA monitor). The CL3100 offers two mini stereo connections for connecting audio speakers.
This text is machine translated.
Features
- Keyboard layout German
- exclusive LED lighting – developed by Aten for illumination of the keyboard and the touch pad for visibility in poor light conditions
- The integrated KVM-console with single rail design and an 18.5” LCD monitor with LED-background lighting enables the working in the smallest space
- 18.5" LCD screen with resolution of 1366 x 768 at 60 Hz
- supports an external console with USB / VGA ports; supports input video resolutions up to 1920 x 1200 at 60 Hz
Scope of delivery
- 1x CL3100 LCD KVM console with standard rack mounting set
- 1x LIN5-23X5-X1BG USB VGA KVM cable (VGA, USB, audio; 1.8 m/6 ft)
- 1x LIN5-04A2-J15G firmware upgrade cable
- 1x LIN2-418K-E12G power cable
- 1x User Guide
