ATEN CL3800NW D KVM console HDMI Keyboard 1920 x 1080 Pixel
EAN:
Part number:
Item no:
ATEN CL3800NW D KVM console
Technical specifications
- Product type
KVM console
- Video via
HDMI
- Video resolution
1920 x 1080 Pixel
- Controller
Keyboard
- Audio headphones
No
- Audio microphone
No
- Rack mount option
Yes
- Switch function
Hot key
- Distributor/switch features
+ audio ports
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2341550 ATEN CL3800NW D KVM console HDMI Keyboard 1920 x 1080 Pixel
Description
Short USB HDMI DVI VGA dual rail LCD console with support of USB peripherals

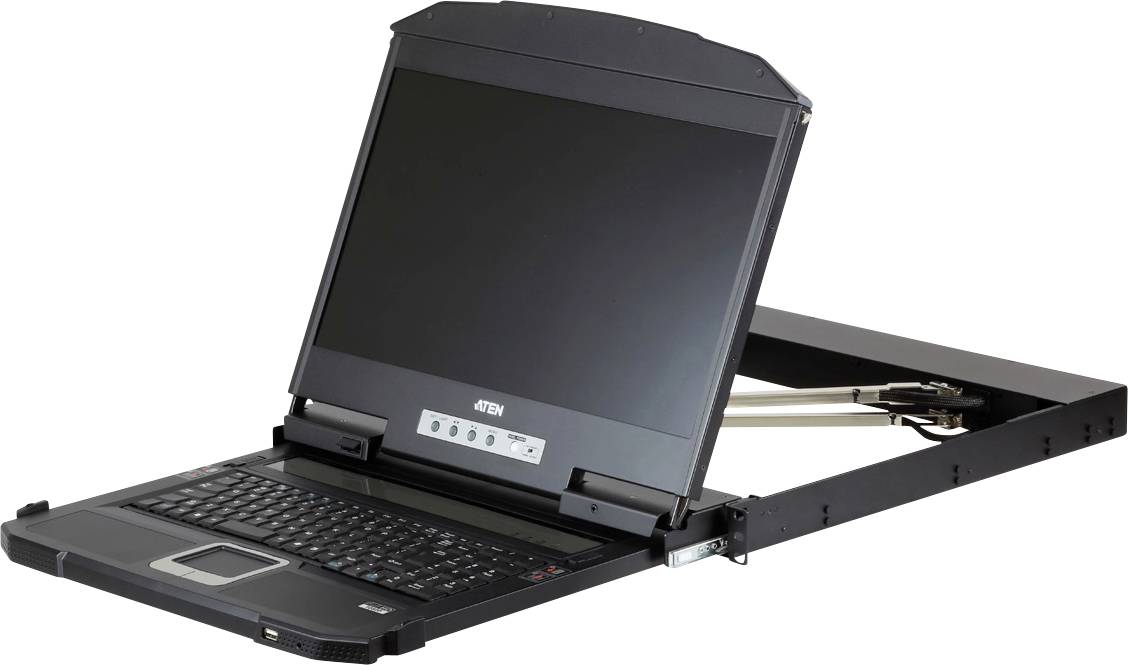

The CL3800 USB HDMI DVI VGA LCD console is a dual rail LCD KVM console with short depth and an 18.5" wide-screen LCD monitor with LED-background lighting and integrated keyboard and touchpad. The short design fits in all 19" device cabinets and is particularly suitable for flat racks. The CL3800 not only saves valuable space on the rack, but also offers a space-saving solution for special environments such as OB trucks (OB trucks) and compact control rooms.
The CL3800 supports three types of video inputs – HDMI, DVI, and VGA – and offers maximum installation flexibility by allowing users to connect the console and computer through one of three types of video sources. The CL3800's Full HD widescreen LCD monitor provides excellent video quality and a generous viewing area.
This text is machine translated.
The CL3800 USB HDMI DVI VGA LCD console is a dual rail LCD KVM console with short depth and an 18.5" wide-screen LCD monitor with LED-background lighting and integrated keyboard and touchpad. The short design fits in all 19" device cabinets and is particularly suitable for flat racks. The CL3800 not only saves valuable space on the rack, but also offers a space-saving solution for special environments such as OB trucks (OB trucks) and compact control rooms.
The CL3800 supports three types of video inputs – HDMI, DVI, and VGA – and offers maximum installation flexibility by allowing users to connect the console and computer through one of three types of video sources. The CL3800's Full HD widescreen LCD monitor provides excellent video quality and a generous viewing area.
This text is machine translated.
Features
- exclusive LED lighting – developed by Aten for illumination of the keyboard and the touch pad for visibility in poor light conditions
- Built-in LCD KVM console with an 18.5" widescreen Full HD LCD monitor with LED backlight in a dual rail top and bottom case for easy use in a 1U high system rack
- the short design allows you to work with your rack-mounting device in the smallest space
- supports three types of video inputs – HDMI, DVI, and VGA
- 18.5" LCD screen with full HD resolution of 1920 x 1080; the external console supports 1920 x 1200
- Audio support for connecting speakers
- Operational versatility
- supports an external console with USB / HDMI / DVI / VGA connections
- Additional hot-pluggable USB mouse port on the front (also functions as a USB peripheral port)
- Console selection via hot keys
- Standard 105-key keyboard
Scope of delivery
- 1x CL3800 LCD KVM console with standard rack mounting set
- 1x LIN5-28V1-V11G USB HDMI KVM cable (HDMI, USB, audio; 1.8 m/6 ft)
- 1x firmware upgrade cable
- 1x LIN2-418K-E12G power cable
- 1x User Guide
