Name: ATEN CL5708IN-ATA-XG KVM console 1920 x 1200 Pixel
Brand: ATEN
SKU: 1879642

A folded-out rackmount KVM switch with screen and keyboard, suitable for server rooms for controlling multiple computers.

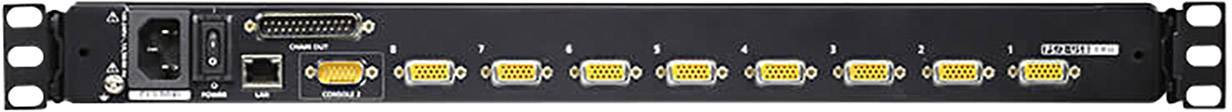

Rear view of a rackmount switch with multiple VGA ports and power connection. Also includes a serial port and status indicator LEDs.

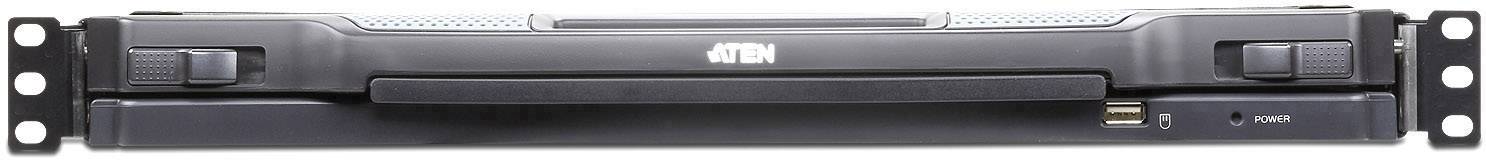

Server rack console in an enclosure with closed front flaps and a handle, suitable for IT environments.

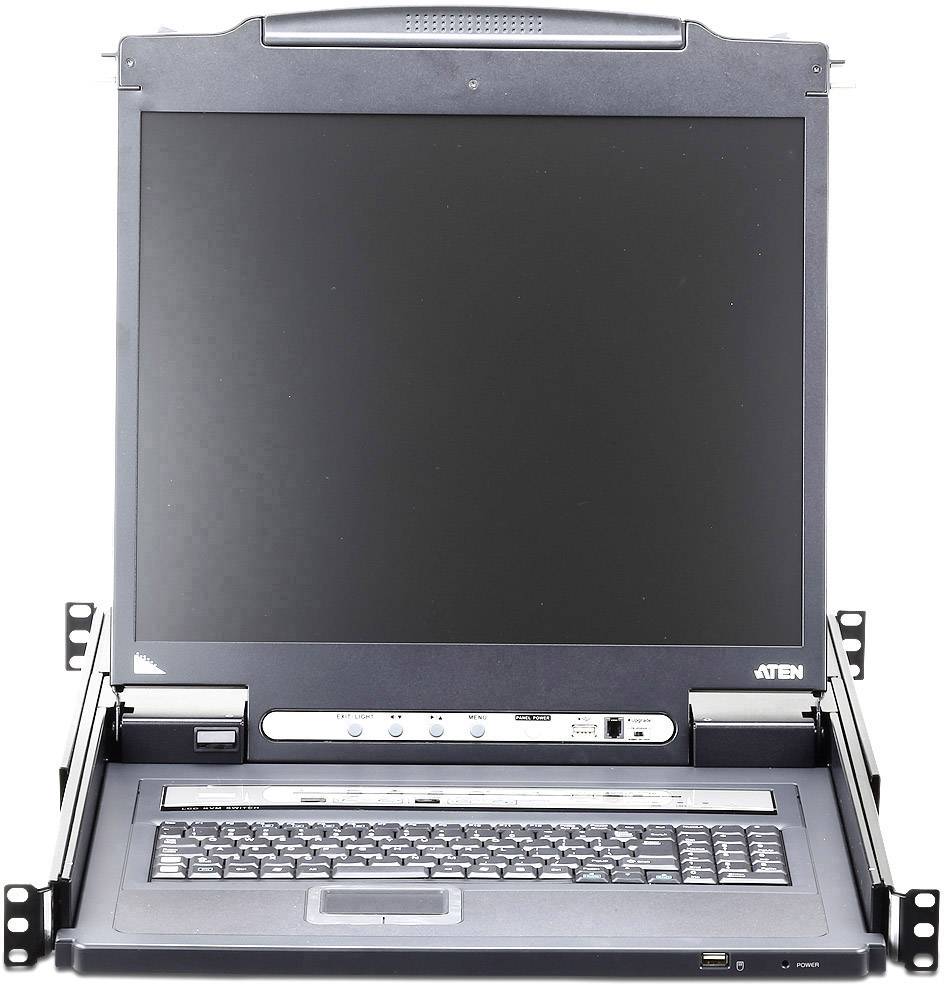

A rack server screen and keyboard in a black enclosure, unfolded for access, with multiple control elements.

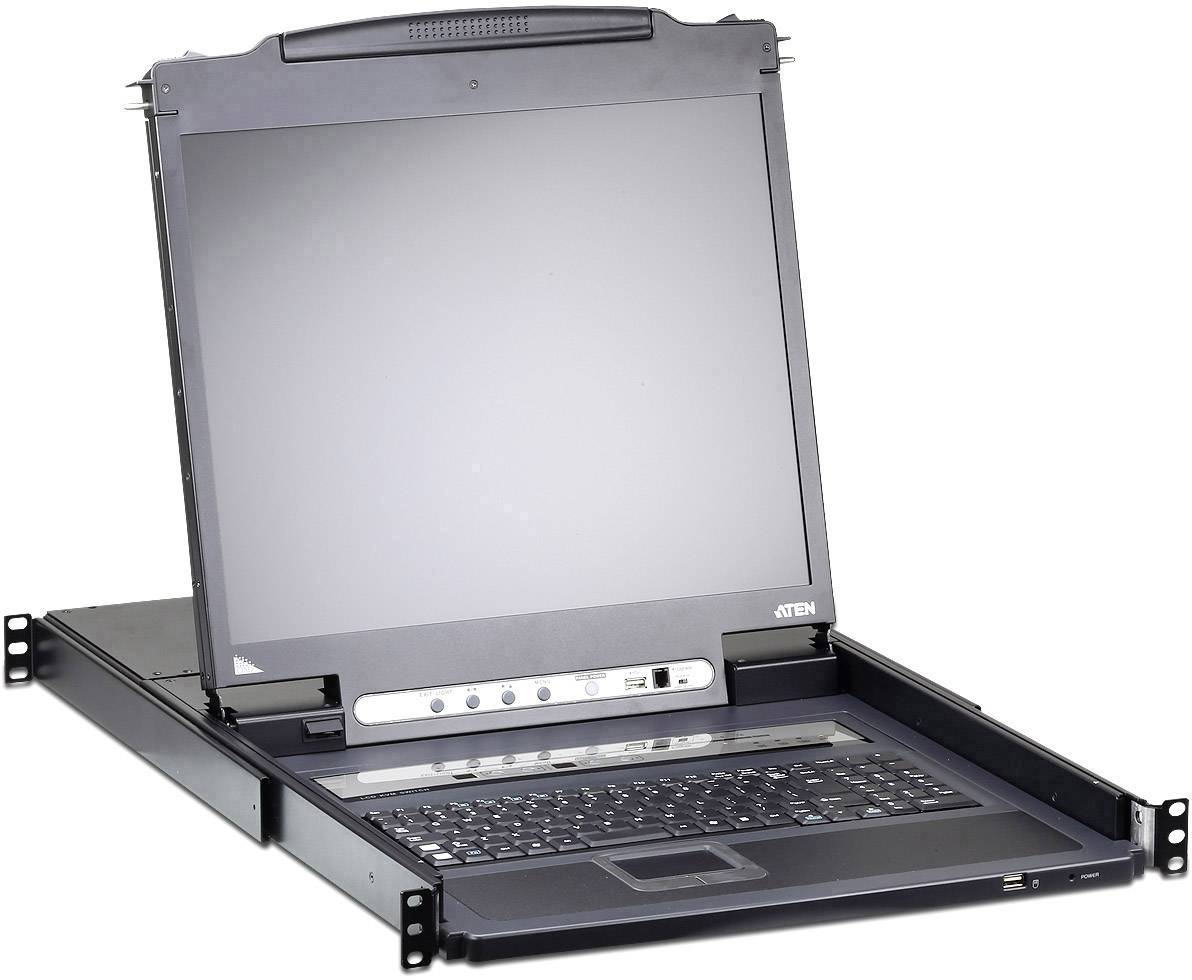

A retractable LCD KVM console in an open state with an integrated screen and keyboard. Suitable for server racks.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ATEN CL5708IN-ATA-XG KVM console

Exclusive LED lighting - developed by Aten for illumination of the keyboard And touch pad for visibility in low light
Integrated KVM console with 17" or 19" LCD screen with LED backlight in Slideaway™ export
Daisy-chain up to 31 additional devices and control 256 computers from a single console (for compatible KVM switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
The USB port of the LCD module gives access to the individual computers Connected USB devices

Technical specifications

CL5708N 19" LCD

Product type: KVM console

No. of switchable PCs: 8

Video resolution: 1920 x 1200 Pixel

No. of USB 2.0 ports: 1 x

Stackable: Yes

Rack mount option: Yes

Switch function: Key

Power supply (LOV): mains-powered

Factory colour: Black

Weight: 13.39 kg

Length: 48 cm

Width: 68.92 cm

Height: 4.4 cm

Dim: (L x W x H) 48 x 68.92 x 4.4 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1879642 ATEN CL5708IN-ATA-XG KVM console 1920 x 1200 Pixel

User & Safety Instructions

User & Safety Instructions 1879642 ATEN CL5708IN-ATA-XG KVM console 1920 x 1200 Pixel

Description

The CL5708 is a control unit in the slide-away™ retractable housing with LCD screen that allows multiple computers to be controlled from a single PS/2 or USB console (keyboard, mouse and monitor).A single CL5708 can control up to 8 computers. Up to 31 additional KVM switches can be daisy-chained with the CL5708 to manage up to 256 computers from a single console. The CL5708 is a state-of-the-art KVM technology solution with a built-in 17- or 19-inch LCD screen with LED backlight and full keyboard with touchpad mounted in a 19-inch cabinet 1U slide-in pull-out chassis.

This text is machine translated.
