ATEN CL6708MW-ATA-AG KVM console DVI 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)

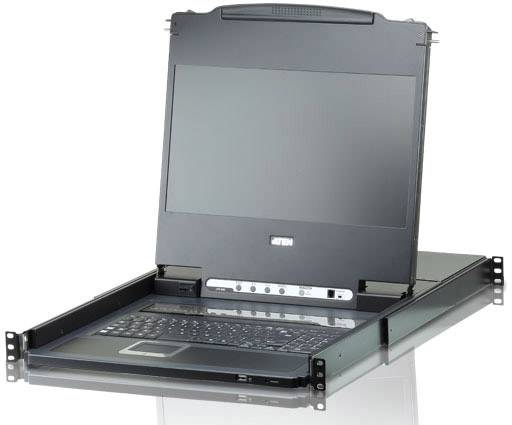

ATEN CL6708MW-ATA-AG KVM console
Highlights & Details
- KVM with a 17.3” wide-screen DVI Full HD LCD monitor
- Exclusive LED lighting - developed by Aten for lighting the Keyboard and touchpad for visibility in low light
- Superior video quality – 1920 x 1080 at 60 Hz; DDC2B
- This text is machine translated.
Technical specifications
- 17.3" TFT LCD
- Product type
KVM console
- No. of switchable PCs
8
- Video via
DVI
- Video resolution
1920 x 1080 Pixel
- Stackable
Yes
- Rack mount option
Yes
- Switch function
Key
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
12.70 kg
- Length
48 cm
- Width
68.92 cm
- Height
4.4 cm
- Dim
(L x W x H) 48 x 68.92 x 4.4 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879800 ATEN CL6708MW-ATA-AG KVM console DVI 1920 x 1080 Pixel
User & Safety Instructions
User & Safety Instructions 1879800 ATEN CL6708MW-ATA-AG KVM console DVI 1920 x 1080 Pixel
Description
Features
- HD-type: Full HD
- Maximum resolution: 1920 x 1080 pixels
- Video bandwidth: 60 Hz
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DVI-I
- Scanning interval: 1.255 s
- Product color: Black
- Rack capacity: 1U
- Material: Metal, plastic
- Display: LCD
- Screen size: 43.9 cm (17.3 inch).
Scope of delivery
- 1x CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch With standard rack mounting set
- 2x 2L-7D02U user USB DVI KVM cable set
- 1x LIN2-418K-E12G power cable
- 1x LIN5-04A2-J11G firmware upgrade cable
- 1x User Guide
