ATEN CM1942 KVM matrix switcher DisplayPort Keyboard 4096 x 2160 Pixel
EAN:
Part number:
Item no:

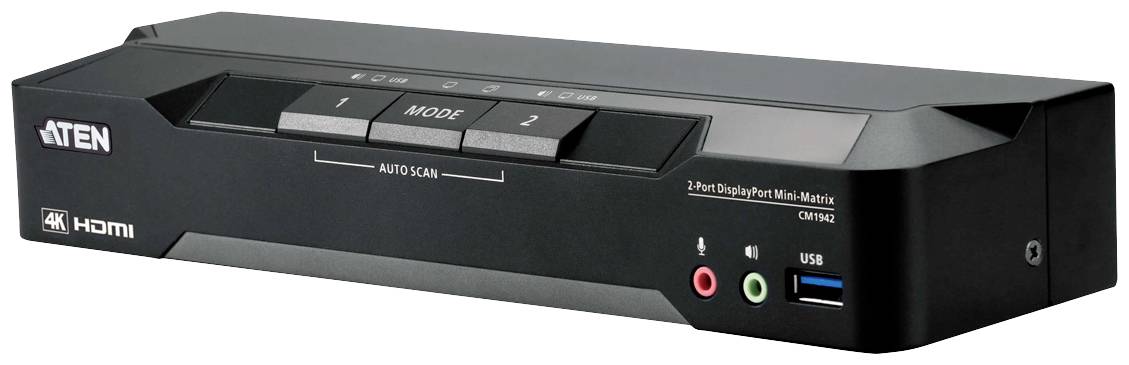

ATEN CM1942 KVM matrix switcher
Highlights & Details
- A dual-view USB/HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
- Two PC modes:
- – Single PC Mode – allows the PC's content to be displayed with current KVM focus on both screens
- – Dual PC Mode – enables separate display of content from two PCs on two screens, regardless of KVM focus
- Supports outstanding video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
- Computer selection via push buttons, hotkeys, mouse wheel, mouse pointer and remote port selector
- Borderless Switching – allows you to move the mouse pointer over the screen limits for fast switching between video sources
- Video DynaSync™ – an exclusive ATEN technology that eliminates display problems when you boot up the screen and optimizes resolution when switching between ports
- Audio-Mixer mode – mixes up to two audio sources as one audio output
- DisplayPort 1.2, HDMI and HDCP compatible
Technical specifications
- Product type
KVM matrix switcher
- No. of switchable PCs
2
- Video via
DisplayPort
- Video resolution
4096 x 2160 Pixel
- Controller
Keyboard
- Stackable
No
- Rack mount option
No
- Switch function
Hot key
- Distributor/switch features
Steel casing
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
640 g
- Length
260 mm
- Width
71.8 mm
- Height
42.5 mm
- Dim
(L x W x H) 260 x 71.8 x 42.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887621 ATEN CM1942 KVM matrix switcher DisplayPort Keyboard 4096 x 2160 Pixel
Description
Multi-tasking with seamless workflows between 2 computers and 2 screens
The CM1942 2-port 4K DisplayPort Dual display mini-matrix seamless KVM switch, which combines a 2-port DisplayPort switch and a 2-port USB 3.1 Gen 1 hub, is designed to provide immediate access to two DisplayPort computers via a single USB/HDMI console. The CM1942 has two PC operating modes that facilitate KVM switching in a 2x2 PC/monitor matrix. In single PC mode, the contents of the PC with the current KVM focus can be displayed on both screens; in dual PC mode, however, the contents of both PCs can be displayed on two screens independent of the KVM focus.
The CM1942 is designed to meet the ever-increasing demands for dual displays, ultra-fast data transfer rates, and lossless 4K video resolution. It is designed specifically for applications where multitasking is essential, such as Graphic design, financial trading and video post production.
This text is machine translated.
Features
- Keyboard port type USB
- USB mouse port type
- Video port type:DisplayPort. HD type 4K Ultra HD
- Maximum resolution 4096 x 2160 pixel
- Data transfer rate (max): 5 Gb/s. Product color: Black
- Case material: metal. Power source: Direct current
- Power consumption (standard mode) 11.58 W. Width 71.8 mm
- Depth: 260 mm
- Height: 42.5 mm
Scope of delivery
- 1x CM1942 2-port 4K DisplayPort Dual display Mini-Matrix Continuous KVM switch
- 4x DisplayPort cable
- 2x microphone cable
- 2x loudspeaker cable
- 2x USB 3.0 type A to type B cable
- 1 x remote port selector
- 1 x mains adaptor
- 1x user manual
