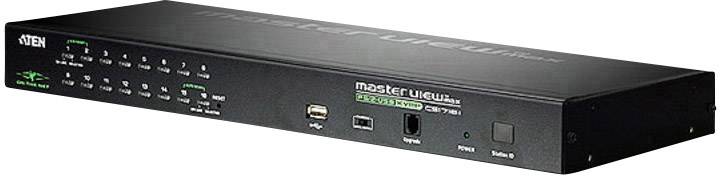

A KVM switch by ATEN, model 'MasterView', with multiple input and output ports for managing several computers.

A KVM switch by ATEN, model 'MasterView', with multiple input and output ports for managing several computers.

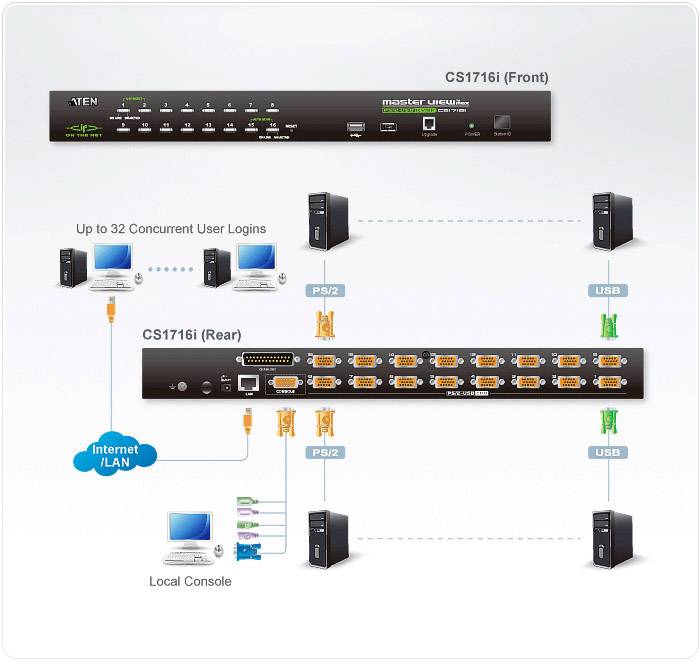

'CS1716i Switch with Front and Rear View.' Multiple servers and PCs are connected to the switch via PS/2, USB and LAN. Up to 32 simultaneous user logins are possible.

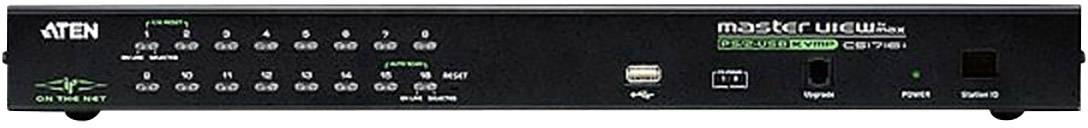

Aten KVM Switch with control panel and LEDs for managing computer connections, with USB and network ports on the front panel.

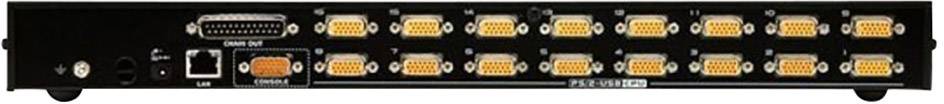

Back of an electronic device with 17 VGA ports and several other connections, including an Ethernet port.

Aten Master View CS-1754 4-Port KVM Switch with USB Ports. Allows switching between multiple computers using a single keyboard and mouse.

The 'CS1716i' shows front and rear views of a KVM switch. Labelled 'Master View', with connections for network, local console, supporting up to 32 simultaneous user logins, with connectivity to servers.

1/6

ATEN

Datasheet (PDF)

English

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ATEN CS1716I-AT-G KVM changeover switch

Highlights & Details

Controls up to 16 PCs via the Internet and additionally From a local console
Login for up to 32 remote users
Broadcast mode for simultaneous access to all PCs
Max. Resolution up to 2048 x 1536 pixels
This text is machine translated.

Technical specifications

Maximum resolution: 2048 x 1536 pixels
Supported security algorithms: 802.1x RADIUS,SSL/TLS
Scanning interval 255 s.
Number of users: 32 users
Product color: Black
Rack capacity: 1U
Material: Metallic
Power consumption (typical): 11 W.

Product type: KVM changeover switch

No. of switchable PCs: 16

Video resolution: 1600 x 1200 Pixel

No. of USB 2.0 ports: 1 x

Ethernet ports: 1

Stackable: Yes

Rack mount option: Yes

Switch function: Key

Power supply (LOV): via PSU

Factory colour: Black

Weight: 3 kg

Length: 43.72 cm

Width: 15.96 cm

Height: 4.4 cm

Dim: (L x W x H) 43.72 x 15.96 x 4.4 cm

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 1879654 ATEN CS1716I-AT-G KVM changeover switch 1600 x 1200 Pixel

User & Safety Instructions

User & Safety Instructions 1879654 ATEN CS1716I-AT-G KVM changeover switch 1600 x 1200 Pixel

Description

Features

Automatic or manual scan mode
Multi-lingual control via Internet (TCP/IP) or On Screen Display (OSD)
Mixed operation PS/2 and USB possible
Encryption 128 bit
Video DynaSync for optimum screen resolution
Firmware can be upgraded
Web-based management.

Scope of delivery

CS1716i KVM switch
PS/2 KVM cable
USB KVM cable
Console cable
Firmware upgrade cable
Mounting kit
Pedestal set (4 pieces)
Power supply unit
Software CD
User manual.
