ATEN CS1922-AT-G KVM changeover switch DisplayPort 4096 x 2160 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
ATEN CS1922-AT-G KVM changeover switch
Highlights & Details
- Supports superior video quality – 4K UHD (3840 x 2160 at 60 Hz) and 4K DCI (4096 x 2160 at 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rate
- Computer selection via front push buttons, hot buttons and mouse
- Multi-Stream Transport (MST) enables multiple monitors via a single DisplayPort Connection
- Dual-mode DisplayPort (DP++) technology supports HDMI and DVI signals via A DisplayPort to HDMI/DVI DP++ adapter
Technical specifications
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
DisplayPort
- Video resolution
4096 x 2160 Pixel
- Audio headphones
Yes
- Audio microphone
Yes
- No. of USB 2.0 ports
2 x
- Stackable
No
- Rack mount option
No
- Switch function
Key
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
730 g
- Length
21 cm
- Width
8.8 cm
- Height
5.55 cm
- Dim
(L x W x H) 21 x 8.8 x 5.55 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879805 ATEN CS1922-AT-G KVM changeover switch DisplayPort 4096 x 2160 Pixel
User & Safety Instructions
User & Safety Instructions 1879805 ATEN CS1922-AT-G KVM changeover switch DisplayPort 4096 x 2160 Pixel
Description
Aten CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch offers the latest innovations in desktop KVM switching technology for the increasing demand for higher video quality and transmission speeds on modern computers. Aten CS1922 offers unparalleling performance in 4K resolution display, next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operation.

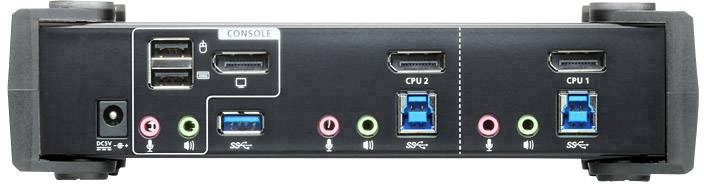

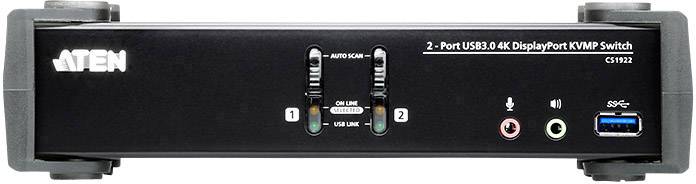

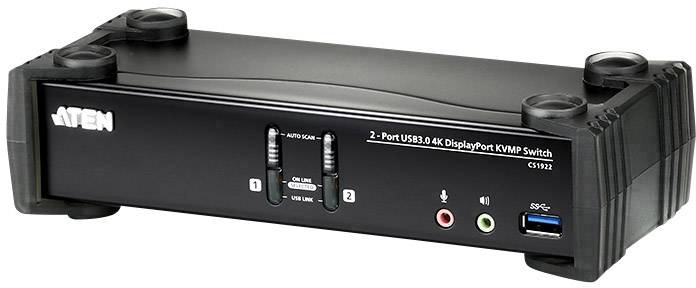

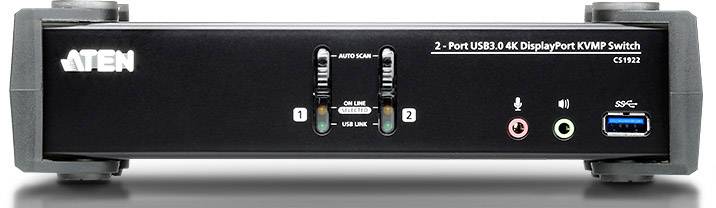

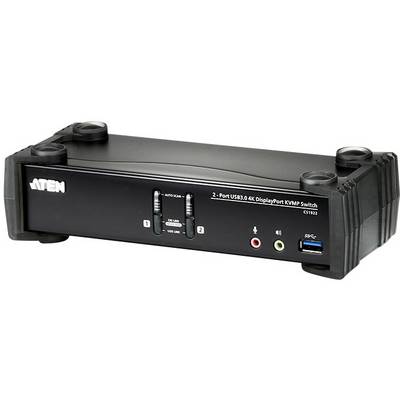

As a KVM switch, the CS1922 allows users to access two DisplayPort computers via a single USB keyboard, USB mouse and monitor console. The CS1922 offers three convenient switching methods – with push buttons on the front, mouse or quick buttons for flexible access to any computer connected to the installation.
The unique switching function allows the KVM control to focus a computer while the USB peripheral focus is on a computer. This eliminates the need to purchase a separate USB hub or individual peripherals – such
as print servers, modem splitters, etc. with its rich features, the CS1922 is perfectly suited to exceed all requirements in the areas of graphic design, animation and video editing. For example, CAD/CAM (computer-aided design/production). The CS1922 allows you to share the sound from any of the connected computers. HD audio transmitted via DisplayPort offers you a different experience.
This text is machine translated.
As a KVM switch, the CS1922 allows users to access two DisplayPort computers via a single USB keyboard, USB mouse and monitor console. The CS1922 offers three convenient switching methods – with push buttons on the front, mouse or quick buttons for flexible access to any computer connected to the installation.
The unique switching function allows the KVM control to focus a computer while the USB peripheral focus is on a computer. This eliminates the need to purchase a separate USB hub or individual peripherals – such
as print servers, modem splitters, etc. with its rich features, the CS1922 is perfectly suited to exceed all requirements in the areas of graphic design, animation and video editing. For example, CAD/CAM (computer-aided design/production). The CS1922 allows you to share the sound from any of the connected computers. HD audio transmitted via DisplayPort offers you a different experience.
This text is machine translated.

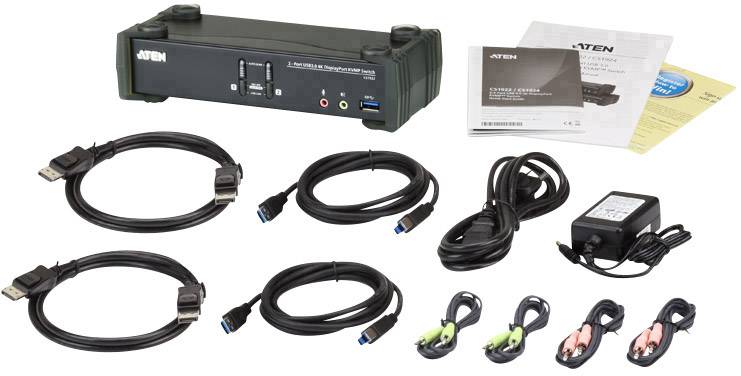

Scope of delivery
- 1x CS1922 2-port USB 3.0 4K DisplayPort KVMP™ Switch
- 2x LIN5-20K1-K13G DisplayPort cable
- 2x LIN6-11C1-E12G USB 3.0 cable
- 2x LIN5-0205-21CG audio cable
- 2x LIN5-0205-21DG audio cable
- 1x 0AD8-8005-40MG power supply
- 1x LIN2-418K-E12G DC cable
- 1x User Guide
