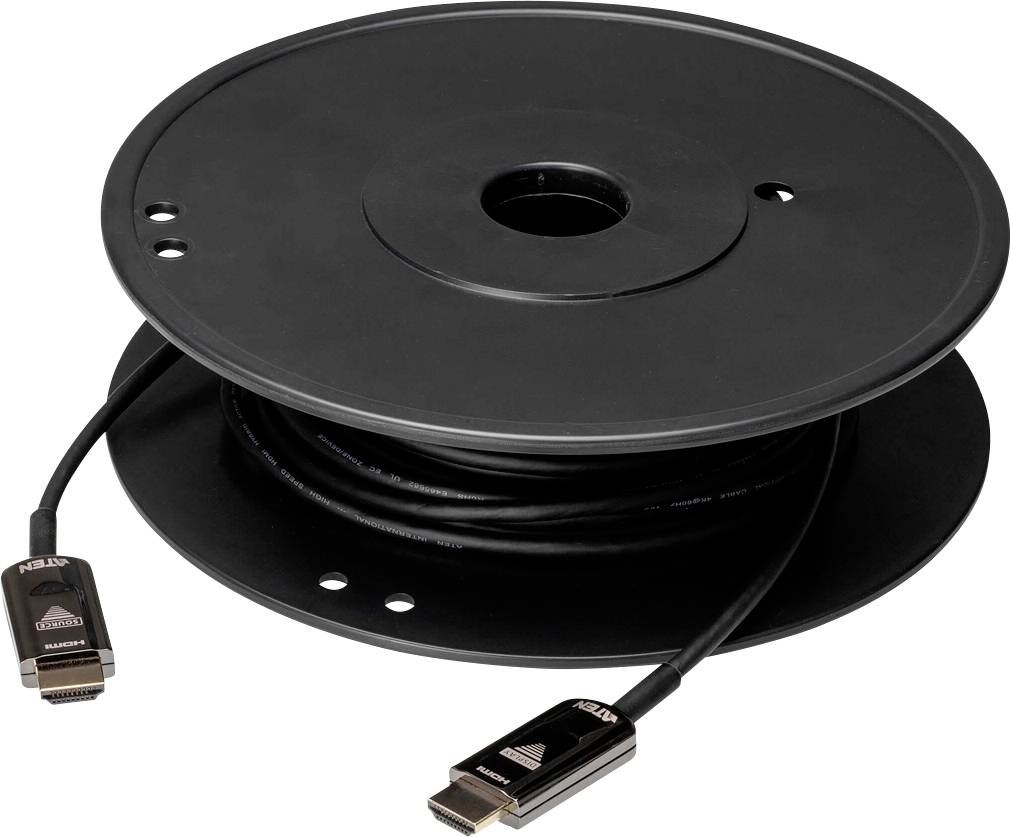

A black cable reel with a coiled HDMI cable. Two HDMI plugs are visible at the ends of the cable.

Product type

HDMI cable

Connection type

HDMI

Version

Cable

Connection type

HDMI-A to HDMI-A

Connections

HDMI-A plug

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: HDMI cable

Connection type: HDMI

Version: Cable

Connection type: HDMI-A to HDMI-A

Connections: HDMI-A plug
HDMI-A plug

Connector version: straight

Cable version: HDMI High Speed

Video resolution: 4096 x 2160 Pixel

Cable length: 20.00 m

Factory colour: Black

Cable features: 4K UHD

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor

Cable design: Round

Type A: HDMI plug

Type B: HDMI plug

Height: 0.000 mm

Length: 2000.00 mm

Width: 0.000 mm

Weight: 0.946 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2342402 ATEN HDMI Cable HDMI-A plug, HDMI-A plug 20.00 m Black VE781020 4K UHD HDMI cable

Description

The Aten VE781020 True 4K HDMI 2.0 active optical cable uses the AOC technology, which enables a conversion between input signals and optical signals for data transmissions with optimum high bandwidth. The EMI-resistant optical cables are available in a length of 20 M with full support of True 4K resolutions. It is fully compatible with the HDCP 2.2 standards and meets the HDMI 2.0 specifications including 3D, Deep Color and data rates up to 18 Gbps. By the support of Dolby True HD and DTS-HD master audio the optical cables guarantee a loss-free audio signal transmission. Therefore, the VE781020 optical cable is an ideal solution to increase the range of your digital signage in a variety of environments such as traffic stations, shopping centers and hospitals

This text is machine translated.

Features

Supports resolutions up to True 4K (4096 x 2160 at 60 Hz 4:4:4)
HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
Extends True 4K signals by up to 20 m.
Reduced EMI and RFI for less noise
High data transfer rates of 18 Gbps
Supports multi-audio channel - Dolby TrueHD and DTS-HD master audio
Robust cable tensile strength (max. 10 kg) and pressure load resistance (max. 50 kg)
Plug-and-Play
