Buy ATEN KH1508AI-AX-G KVM changeover switch VGA USB, PS/2 1280 x 1024 Pixel, 1600 x 1200 Pixel

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

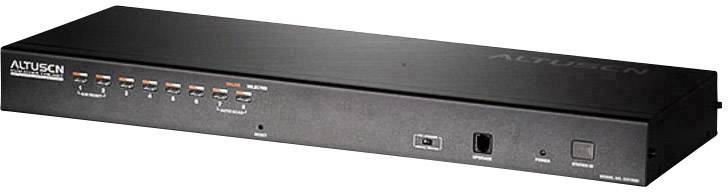

ATEN KH1508AI-AX-G KVM changeover switch

High port density – RJ-45 jacks for up to 8 ports in A 1U housing
Daisy-chain up to 15 more devices and control 128 computers from a single console
Supports up to 64 user accounts – control by up to 32 simultaneous users
Outstanding image quality – up to 1600 x 1200 at 60 Hz to 40 m maximum
Remote authentication possible: RADIUS, LDAP, LDAPS and MS Active Directory
This text is machine translated.

Datasheet 1879821 ATEN KH1508AI-AX-G KVM changeover switch VGA USB, PS/2 1280 x 1024 Pixel, 1600 x 1200 Pixel

User & Safety Instructions 1879821 ATEN KH1508AI-AX-G KVM changeover switch VGA USB, PS/2 1280 x 1024 Pixel, 1600 x 1200 Pixel

A dedicated USB port for direct connection of a laptop simplifies the use as a console

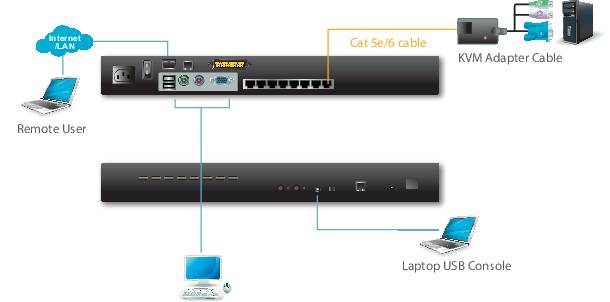

a bus system for KVM access to the remote station via IP
multi-platform compatible: Windows, Mac,
Sun and Linux End Session - Administrators can terminate running sessions
supports event logging and Windows log server
Local log event
Adapter ID - stores port information
Port Sharing - allows multiple users to share access to the same server
Integration with the ALTUSEN CC2000
power over the NET™ integration management software for remote power supply
Firmware update possible
IPv6 compatible
Panel Array Mode#8482 (Miniature Image)
Keyboard Broadcast Feature – Key inputs can be sent to all connected servers simultaneously
supports 128-bit SSL data encryption and 1024-bit RSA certificates to secure the user protocol in the browser
Flexible encryption technology allows any combination of 56-bit, 168-bit 3DES, 256-bit AES, 128-bit RC4 or randomly
configurable user and group access rights for server access and control
Full-screen view or scalable image
Message board for communication between remote users
Mouse DynaSync™ - synchronizes the local and remote mouse pointer movements
Screen keyboard with special characters for numerous languages
Function for terminating macros
Access at BIOS level
