ATEN KL1116VN-AXA-XG KVM console 1920 x 1200 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

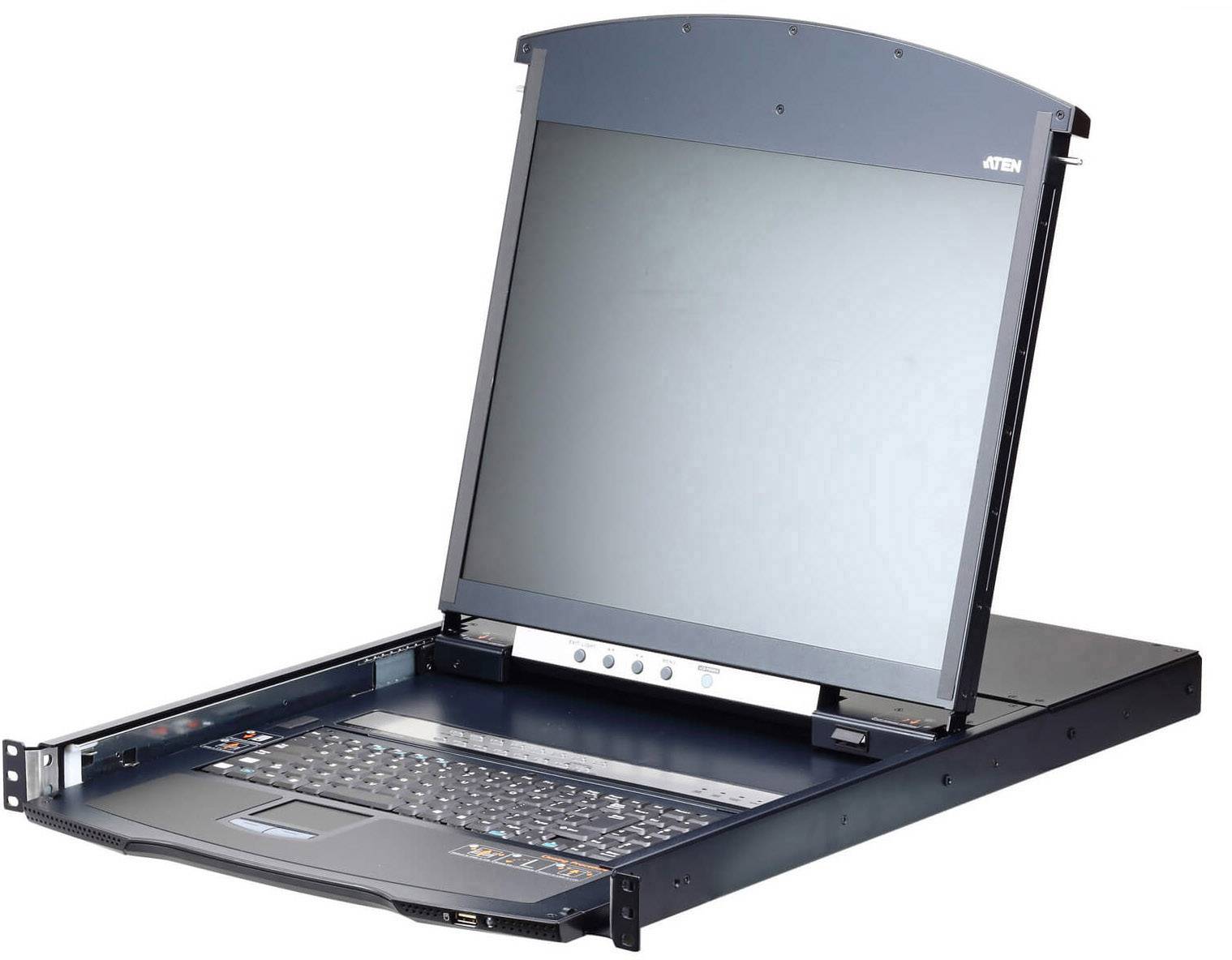

ATEN KL1116VN-AXA-XG KVM console

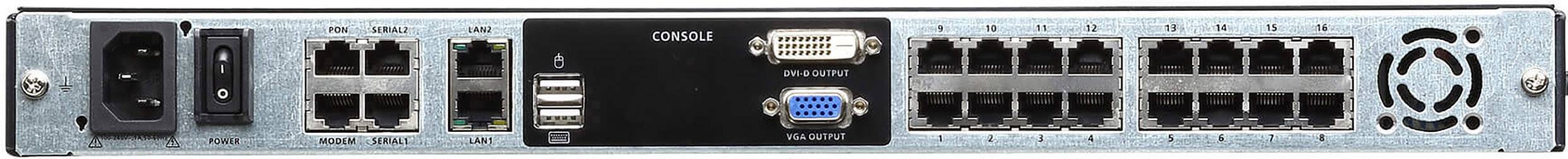

- One bus for local and one bus for remote KVM Over IP access
- High video resolutions – up to 1920 x 1200 at 60 Hz with 24-bit color depth on the external local console of the switch and on remote monitors; up to 1280 x 1024 at 75 Hz on the switch's built-in LCD screen
- Virtual media enable applications, OS patching, software installations, and diagnostic tests
- This text is machine translated.
Technical specifications
- 1280 x 1024 pixels maximum resolution
- Keyboard port type: PS/2
- Mouse port type: PS/2
- Video port type: VGA
- Scanning interval: 1.255 s.
- Product color: Black
- Rack capacity: 1U
- Material: Metallic
- Display: LCD
- Diagonal screen size 43.2 cm (17 in)
- Product type
KVM console
- No. of switchable PCs
16
- Video resolution
1920 x 1200 Pixel
- No. of USB 2.0 ports
1 x
- Ethernet ports
2
- Stackable
Yes
- Rack mount option
Yes
- Switch function
Key
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
15.28 kg
- Length
48 cm
- Width
70.12 cm
- Height
4.4 cm
- Dim
(L x W x H) 48 x 70.12 x 4.4 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879700 ATEN KL1116VN-AXA-XG KVM console 1920 x 1200 Pixel
User & Safety Instructions
User & Safety Instructions 1879700 ATEN KL1116VN-AXA-XG KVM console 1920 x 1200 Pixel
Description
Scope of delivery
- 1x KL1116VN cat 5 dual rail LCD KVM over IP Switch with a rack mounting kit
- 2x SA0142 serial adapter (RJ45-F TO DB9-M.
- DTE on DCE)
- 1x LIN2-418K-E12G power cable
- 1x User Guide
