ATEN KL1508AiN-AXA-XG 8 ports KVM console VGA 1600 x 1200 Pixel
EAN:
Part number:
Item no:
Highlights & Details
ATEN KL1508AiN-AXA-XG KVM console
- Exclusive LED lighting - developed by calls for lighting the keyboard and touchpad for visibility in poor lighting conditions
- Integrated KVM console with 17 or 19-inch LCD screen with LED-background lighting in double rail version
- A single console controls up to 8 computers
- Daisy-chain up to 15 other KVM switches for the control of a maximum of 128 computers *
- A bus system for KVM access to the remote location via IP
- Space-saving RJ-45 sockets and Cat.5e/6-wiring.
Technical specifications
- Product type
KVM console
- No. of switchable PCs
8
- Video via
VGA
- Video resolution
1600 x 1200 Pixel
- No. of USB 2.0 ports
2 x
- Ethernet ports
9
- Stackable
Yes
- Rack mount option
Yes
- Switch function
Hot key
Key
- Factory colour
Black
- Weight
15230
- Length
44 mm
- Width
480 mm
- Height
701.2 mm
- Port
8 ports
- Dim
(L x W x H) 44 x 480 x 701.2 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1609610 ATEN KL1508AiN-AXA-XG 8 ports KVM console VGA 1600 x 1200 Pixel
Description
1 - local/remote share access 8-Port-Cat-5 Dual Rail LCD KVM-over-IP switch with Daisy Chain Port
KL1508 Ai

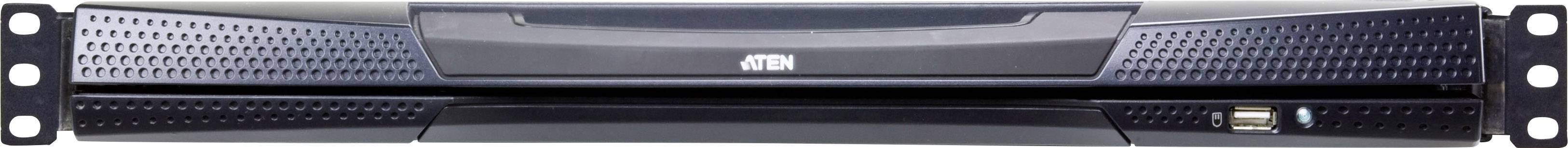

The KVM-Switch KL1508 Ai is an LCD KVM switch in double rail version, which allows up to 8 computers from a single console (keyboard, monitor and mouse) to control. It has a built-in LCD screen, a full-fledged keyboard and touchpad and is in a 1U slot for 19-inch cabinets in a retractable housing mounted.
The LCD monitor and the keyboard module with touch-pad can be independently from the cabinet. In order to create more space in the data center, the keyboard module with touch-pad can be inserted, while the slim LCD screen for monitoring the computer unfolded and flat lying on the cabinet remains - so you can easily be monitored the activity of the computer.
The KL1508 Ai are local and remote sysops include the possibility over an IP network to monitor and manage multiple computers. Because it is the TCP/IP protocol used for communication, the KL1508 Ai from any computer in the LAN, WAN or Internet can be controlled - regardless of whether it is in the same room, at the other end of the street or on a different continent.

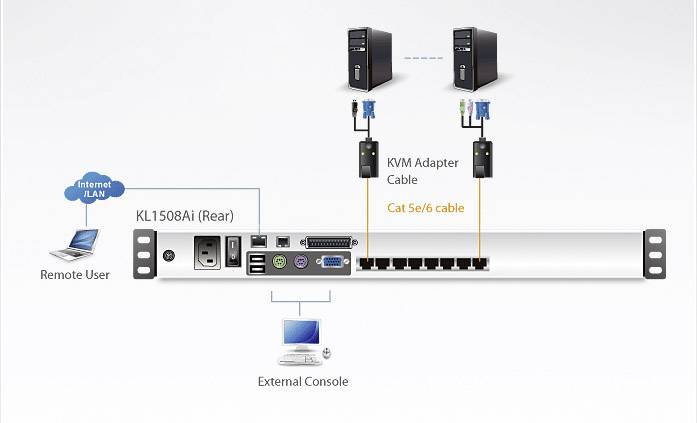

The compact and tightly arranged RJ-45 jacks for Cat 5e/6 network cables provide for a space-saving, efficient cable management. At the same time ensures the use of KVM adapter cables to connect the different computers, such as PCs, Mac or sun and even serial devices within the same installation.

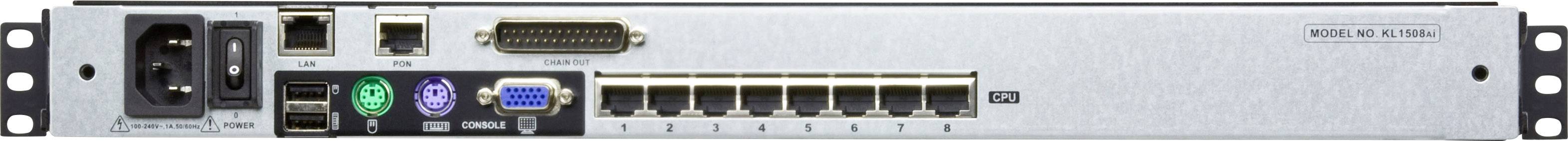

The device also has on its back side connections for an external keyboard and mouse as well as a monitor, so that you can control the switch also has a local console. Furthermore, the device with an external USB mouse port on the keyboard module, so that if necessary, instead of the touch-pad also an external use a mouse.
To the advanced properties is one of the miniature Image Display Panel Array Mode, with which you can view the image of up to 8 computers at the same time, as well as the message board, practically in real time via the logged-in user can communicate with each other - no matter where you are on our planet. The KL1508 Ai is the ideal solution to manage your server room.
This text is machine translated.
KL1508 Ai
The KVM-Switch KL1508 Ai is an LCD KVM switch in double rail version, which allows up to 8 computers from a single console (keyboard, monitor and mouse) to control. It has a built-in LCD screen, a full-fledged keyboard and touchpad and is in a 1U slot for 19-inch cabinets in a retractable housing mounted.
The LCD monitor and the keyboard module with touch-pad can be independently from the cabinet. In order to create more space in the data center, the keyboard module with touch-pad can be inserted, while the slim LCD screen for monitoring the computer unfolded and flat lying on the cabinet remains - so you can easily be monitored the activity of the computer.
The KL1508 Ai are local and remote sysops include the possibility over an IP network to monitor and manage multiple computers. Because it is the TCP/IP protocol used for communication, the KL1508 Ai from any computer in the LAN, WAN or Internet can be controlled - regardless of whether it is in the same room, at the other end of the street or on a different continent.
The compact and tightly arranged RJ-45 jacks for Cat 5e/6 network cables provide for a space-saving, efficient cable management. At the same time ensures the use of KVM adapter cables to connect the different computers, such as PCs, Mac or sun and even serial devices within the same installation.
The device also has on its back side connections for an external keyboard and mouse as well as a monitor, so that you can control the switch also has a local console. Furthermore, the device with an external USB mouse port on the keyboard module, so that if necessary, instead of the touch-pad also an external use a mouse.
To the advanced properties is one of the miniature Image Display Panel Array Mode, with which you can view the image of up to 8 computers at the same time, as well as the message board, practically in real time via the logged-in user can communicate with each other - no matter where you are on our planet. The KL1508 Ai is the ideal solution to manage your server room.
This text is machine translated.
Features
- KVM-adapter cable with automatic signal conversion allow more flexible connection combinations (PS/2, USB, sun and serial), in order to be able to control all computer types
- Additional Konsolport - manage the LCD KVM switch connected computer via an external console (monitor, USB or PS/2 keyboard and USB or PS/2 mouse)
- Supports numerous platforms: PC, Mac, sun and serial
- Supports an external USB mouse
- The double rail casing is slightly less high than a 1U-shaft and is therefore comfortably in a free slot in 19-inch cabinet space
- Double rail system - the LCD screen can be independently from the keyboard/touch pad module 30-35
- LCD module up to 120° rotatable to set a ergonomic viewing angle
- Konsolarretierung-locks the inserted console in a safe position when it is not used
- The LCD on/-off switch helps you to save power and extends the service life of the display
- * Compatible KVM switches: KH1508 A/KH 1516 A, KH0116, ACS 1208 A/ACS 1216 A, CS1708A/CS1716A, KH1508/KH 1516.
- Management
- Up to 64 user accounts
- Up to 32 simultaneous logins
- End a session administrators can stop running sessions
- Adapter ID - saves the port information, so that the administrator after plugging of the server to other ports the adapter and the switch is not reconfigure.
- Port forwarding - enables the shared access from multiple users on the same server
- Remote-controlled switch on and off via power over the net™ devices
- Integration with the ALTUSEN CC 2000 Management Software
- Supports event logging and Windows Log Server
- Local Log Event
- Firmware update possible
- IPv6-compatible
- Easy-to-use user interface.
- Simple computer selection via push-buttons, hot keys, on-screen menu (OSD) or graphical user interface in web browser
- Single, multi-lingual user interface for local console, web browser and application programs - Reduced familiarization times and increased productivity
- Multi-platform compatible (Windows, Mac OS X, Linux, Sun)
- Supports most common web browsers: Internet Explorer, Firefox, Safari, Opera, Chrome, Mozilla, Netscape
- User interface via web browser allows administrators to system administration without prior Java installation
- Miniature image display (Panel Array Mode)
- Keyboard broadcast function * key entries can be sent to all connected server at the same time
- * Only via the local console
- Increased Security
- Remote Authentication possible: RADIUS, LDAP, LDAPS and MS Active Directory
- Supports TLS 1.2 data encryption and 2048-bit RSA certificates with the user to secure protocol in the browser
- Flexible encryption technology allows any combination of 56-Bit OF THE, 168-Bit-3 OF THE, 256-bit AES, 128-bit RC4 or randomly for independent encryption of the keyboard/mouse and graphics signals
- Supports IP/MAC Filter for extra safety.
- Configurable user and group access rights for server access and control
- The Virtual Desktop
- Image quality and graphics tolerance to optimize the data transfer speed adjustable, monochrome picture display, threshold and noise level setting for compression of the transmission bandwidth for situations in which less bandwidth is available
- The remote station can be represented as full screen or scaled Virtual Desktop
- The message board function makes it possible for registered users to communicate with each other
- Mouse Dyna Sync™ synchronizes the local and remote mouse pointer movements
- Screen keyboard with special characters for many languages
- Access to BIOS-level
- Supported keyboard languages: supported languages for keyboard: English (US); English (GB); French; German; German (Swiss) Greek Hungarian Italian Japanese Korean;;;;;;;;; traditional Chinese Russian Spanish Swedish
Scope of delivery
- 1 x KVM Switch KL1508 Ai with double rails LCD console | 1 x LIN 2-418 K-E 12G power cable | 1 x standard rack mounting kit | 1 x LIN 5-04 A2-J 11G cable for firmware update | 1 x user manual
