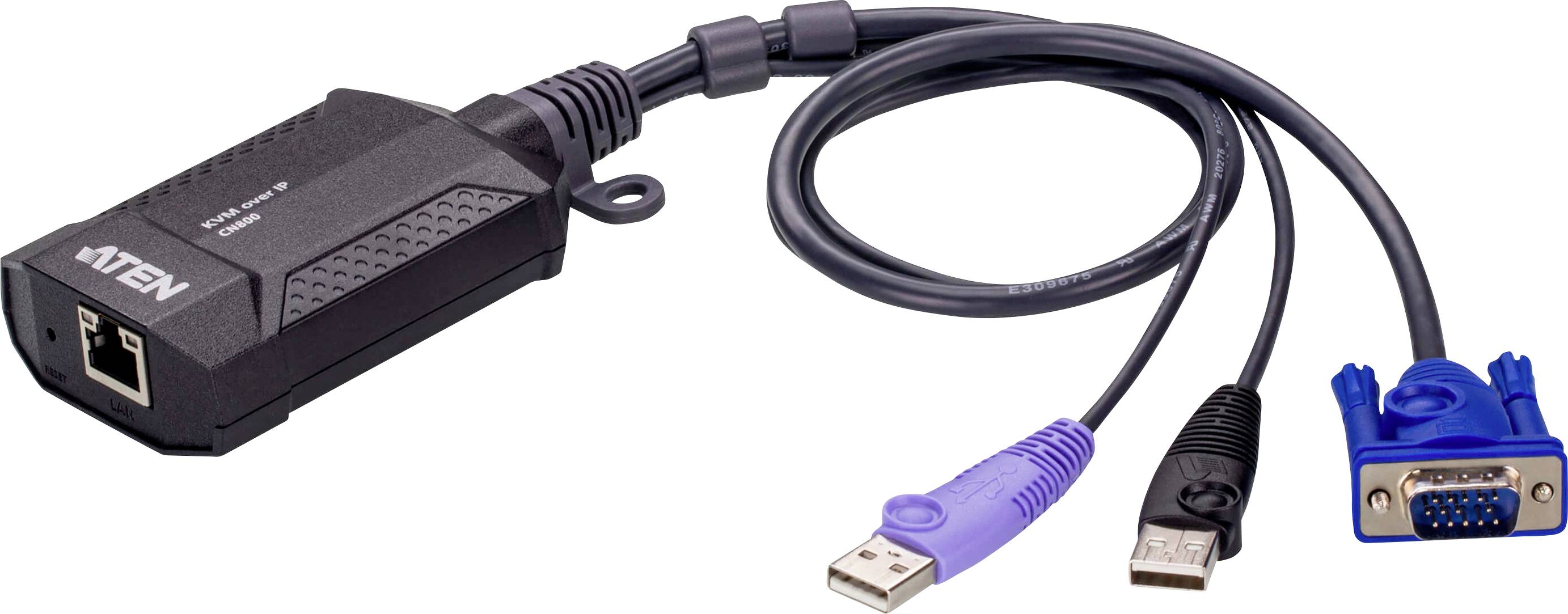

ATEN KVM Adapter [1x USB, VGA - 1x RJ45 socket] 0 cm Black, Violet
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ATEN CN800-AT keyboard/video/mouse (KVM) switch black, violet
- Black, Violet
- Keyboard Port type: USB Mouse Port type: USB
- 1920 x 1200 pixels
- Housing material: Plastic
- Direct current 3.47 W
- This text is machine translated.
Technical specifications
- Power source: Direct current
- Product type
KVM Adapter
- Connection type
USB
RJ45
VGA
- No. of A connectors
1 x
- Type A
USB
VGA
- No. of B connections
1 x
- Type B
RJ45 socket
- Cable length
0 cm
- Factory colour
Black
Violet
- Connector version
straight
- Cable use
KVM
- Version
Adapter
- Depth
93.2 mm
- Height
24.4 mm
- Width
56.6 mm
- Display resolution
1920 x 1200 Pixel
- Material (details)
Plastic
- 10/100/1000 Mbps ports
1 x
- Power consumption (ON)
3.47 W
- Weight
170 g
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Ethernet LAN
yes
- Operating relative humidity (H-H)
0 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- Built-in display
no
Documents & Downloads
Datasheet
Datasheet 3465721 ATEN KVM Adapter [1x USB, VGA - 1x RJ45 socket] 0 cm Black, Violet
User & Safety Instructions
User & Safety Instructions 3465721 ATEN KVM Adapter [1x USB, VGA - 1x RJ45 socket] 0 cm Black, Violet
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
