ATEN PE6216G-AX-G PE6216G-AX-G Power management unit
EAN:
Part number:
Item no:
Highlights & Details

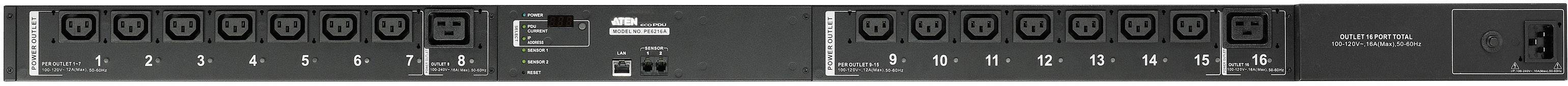

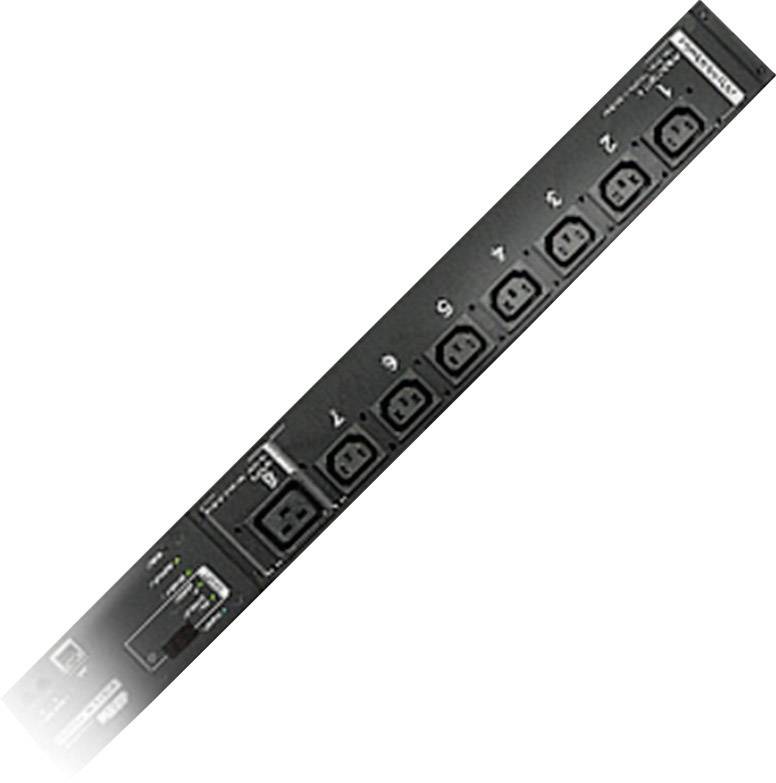

ATEN PE6216 20A/16-A-Eco-PDU with 16 outputs and measuring and switching function
- Remote-controlled power control (On, Off, On and off) by means of individual sockets
- Indication of current, voltage and kWH in real time in a browser-based interface for monitoring on PDU level
- Proactive overload protection (POP) - turns off power outlet in the current overloads automatically in order to protect devices management
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, car sense, Ping, Telnet
Technical specifications
- Product type
Power management unit
- Outlets
16
- No. of IEC C19 16A sockets
2
- No. of IEC C13 10A sockets
14
- Factory colour
Black
- Cable length
0 mm
- Weight
5.972
- Width
0.000 mm
- Height
0.000 mm
- Depth
0.000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879828 ATEN PE6216G-AX-G PE6216G-AX-G Power management unit
Description
Gence-Produktreihe has within its NO CALLS a completely new generation of power distributors (PDUs), which have the power consumption in the data center to effective way optimized. The NRGence eco PDU PE6216 has 16 output sockets and is equipped with various IEC or NEMA configurations available.

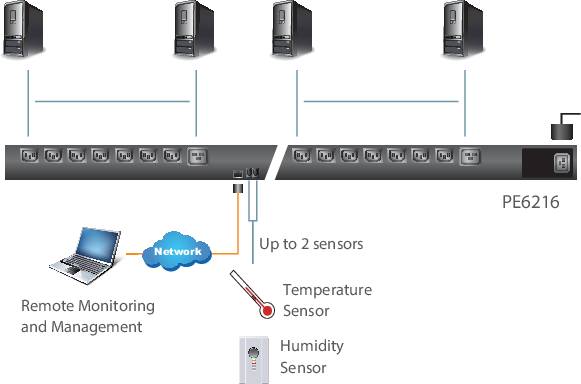

It offers a secure, centralized, intelligent management of the power supply (power on, power off, reboot) of the IT systems (servers, storage devices, KVM switches, network units, serial devices, etc.) in the data center as well as the possibility for the monitoring of the ambient conditions in the data center via sensors*.
The eco PDU PE6216 ensures a remote control of the power supply along with a measurement of the network parameters in real time - so you can connect the power supply to the PDU connected devices at any time and almost any location on PDU or socket level control and monitor.
The status of the socket outputs can be individually, so that the user the devices individually can be switched on or off. The eco PDU provides comprehensive analyzes and reports - thanks to precise measurements of current, voltage, power and watt-hours in real time.
The NRGence eco PDU supports v1, v2 and v3 SNMP management software from other vendors, and with our own software NRGence eco sensor, you can quickly and easily manage numerous devices. It has an intuitive and user-friendly graphical user interface that your PDU configure devices and the condition of the power supply to all connected devices can monitor.
Thanks to the extended security at a very simple operation is the most reliable and at the same time the most practical, cost-effective eco PDU solution, in order to take the power supply of many computer systems remote and the feed more efficiently.
This text is machine translated.
It offers a secure, centralized, intelligent management of the power supply (power on, power off, reboot) of the IT systems (servers, storage devices, KVM switches, network units, serial devices, etc.) in the data center as well as the possibility for the monitoring of the ambient conditions in the data center via sensors*.
The eco PDU PE6216 ensures a remote control of the power supply along with a measurement of the network parameters in real time - so you can connect the power supply to the PDU connected devices at any time and almost any location on PDU or socket level control and monitor.
The status of the socket outputs can be individually, so that the user the devices individually can be switched on or off. The eco PDU provides comprehensive analyzes and reports - thanks to precise measurements of current, voltage, power and watt-hours in real time.
The NRGence eco PDU supports v1, v2 and v3 SNMP management software from other vendors, and with our own software NRGence eco sensor, you can quickly and easily manage numerous devices. It has an intuitive and user-friendly graphical user interface that your PDU configure devices and the condition of the power supply to all connected devices can monitor.
Thanks to the extended security at a very simple operation is the most reliable and at the same time the most practical, cost-effective eco PDU solution, in order to take the power supply of many computer systems remote and the feed more efficiently.
This text is machine translated.
Features
- Power distributor
- Space-saving design for rear 0 U-rack mounting
- Output side sockets according to IEC or NEMA
- Front LED display with 3 x 7 segments for current/IP address of the PDU/socket strip
- Remote users can use the condition of the PDU/outlet strip via the web browser track
- Function for safe shutdown of the connected systems
- Separate circuits for the power supply of the device and the output side plug-in the user interface is also available after release of the power protection switch by overloading
Scope of delivery
- 1 x PE6216 Eco PDU
- 1x power cord
- 1 x kit for rack mounting
- 1x CD-ROM (User's Guide, Eco Sensor Software)
- 1x user manual.
