ATEN True 4K HDMI HDMI® input Repeater 5 m
EAN:
Part number:
Item no:

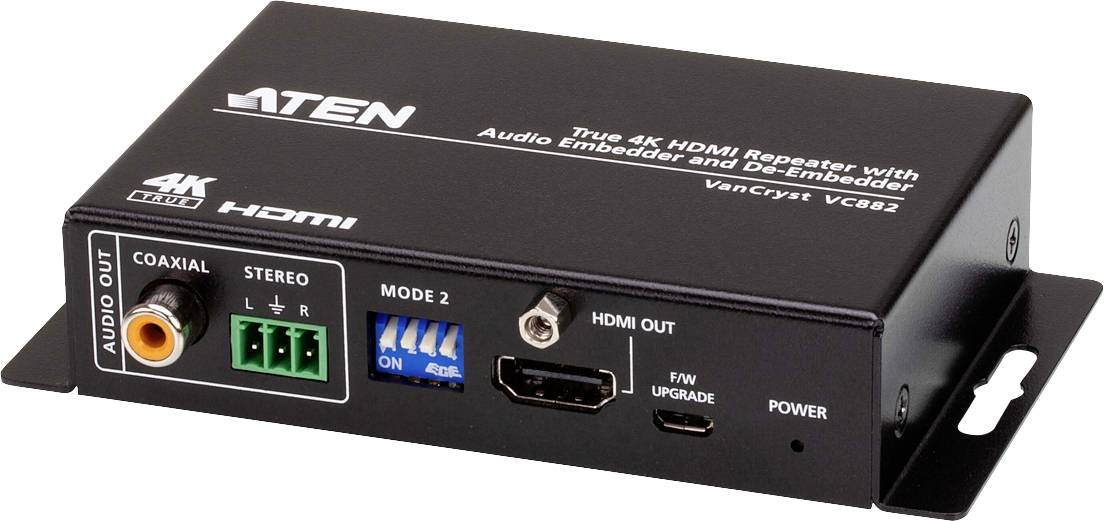

ATEN true 4K HDMI repeater with audio embedded and de-embedded
Highlights & Details
- Embedded audio into the HDMI output or de-embedded audio from the HDMI signal and outputs the extracted signal via an alternative audio system
- Simple selection of the embedding/de-embedding mode via 2/4-pin DIP switches
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports True 4K/HDR formats – HDR10, HDR10+, Dolby Vision and Hybrid Log Gamma (HLG)
- Supports HDMI audio formats – LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1
- Compact, portable metallic casing, developed for HDMI Lock-PRO
- Firmware can be retrofitted
Technical specifications
- Product type
Repeater
- Interfaces (input)
HDMI® input
- Interfaces (output)
HDMI® output
- Resolution (max.)
4096 x 2160 p
- Range (max.)
5 m
- Factory colour
Black
- Weight
240 g
- Length
122.2 mm
- Width
82.2 mm
- Height
25 mm
- Dim
(L x W x H) 122.2 x 82.2 x 25 mm
- Power supply (LOV)
mains-powered
- Type A
HDMI plug
- Type B
HDMI plug
- Frame rate
60 Hz
- HDCP
Yes
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887629 ATEN True 4K HDMI HDMI® input Repeater 5 m
Description
The VC882 is a true 4K HDMI repeater with audio embedded and de-embedded device that can embed or de-embed the HDMI audio signal while supporting HDMI signal transmission over a distance of up to 5 meters with true 4K resolution. Along with embedding a separate audio in an outgoing HDMI signal, the VC882 also enables audio extraction from the HDMI signal and the output of the extracted signal via an alternative audio system.
In terms of audio aspect, the VC882 works with versatile pass-through of HDMI-audio formats – LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1. The VC882 also supports the ARC function, which makes the requirement of bulky cables redundant with the connection of an AV receiver or a home cinema system to a TV set. WAS on the video aspect, the VC882 supports True 4K (4096 x 2160 @ 60Hz 4:4:4) in HDR10, HDR10+, Dolby Vision and Hybrid Log gamma (HLG) formats to deliver breathtaking sharp images. It is HDCP 2.2-compatible for the protection of contents. The compact chassis design, true 4K signal transmission, and embedded/de-embedded capability make the VC882 Ideal suitable for training and conference rooms, video productions, and home cinema installations.
This text is machine translated.
In terms of audio aspect, the VC882 works with versatile pass-through of HDMI-audio formats – LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1. The VC882 also supports the ARC function, which makes the requirement of bulky cables redundant with the connection of an AV receiver or a home cinema system to a TV set. WAS on the video aspect, the VC882 supports True 4K (4096 x 2160 @ 60Hz 4:4:4) in HDR10, HDR10+, Dolby Vision and Hybrid Log gamma (HLG) formats to deliver breathtaking sharp images. It is HDCP 2.2-compatible for the protection of contents. The compact chassis design, true 4K signal transmission, and embedded/de-embedded capability make the VC882 Ideal suitable for training and conference rooms, video productions, and home cinema installations.
This text is machine translated.
Features
- Type AV repeater
- Maximum resolution 4096 x 2160 pixel
- Maximum possible transmission distance: 5 m. Transmission technology: Cable-bound
- USB-plug Micro-USB
- Audio connections 3-pin terminal. Width 82.2 mm
- Depth: 122.2 mm
- Height 25 mm. Package width 59 mm
- Packaging depth 239 mm
- Packaging height 160 mm. Shipping box width 250 mm
- Length of shipping box 325 mm
- Shipping box height 175 mm
Scope of delivery
- 1x VC882 True 4K HDMI repeater with audio embedded and de-embedded device
- 1 x mains adaptor
- 1x user manual
