1/4

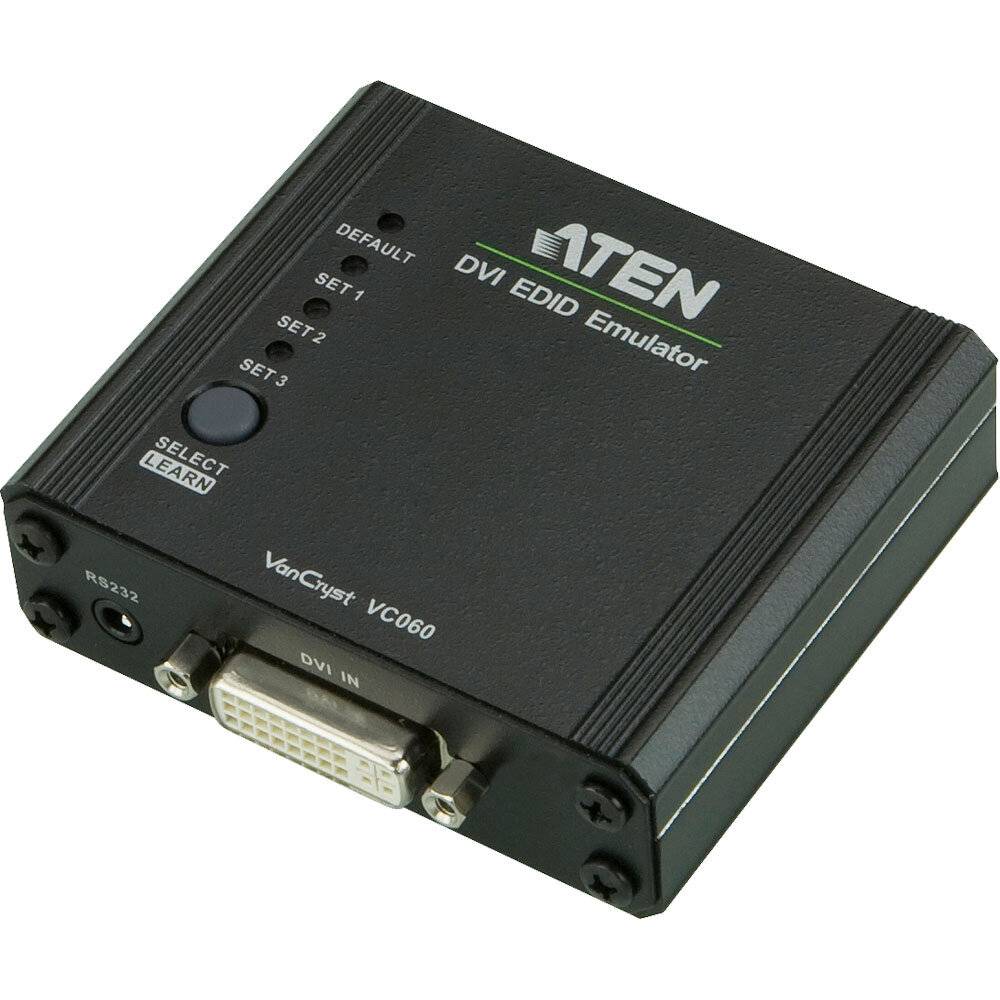

ATEN VC060 DVI EDID emulator [1x DVI socket 29-pin - 1x DVI socket 29-pin] Black
EAN:
Part number:
Item no:
Datasheet (PDF)
ATEN VC060 DVI EDID emulator [1x DVI socket 29-pin - 1x DVI socket 29-pin] Black
Highlights & Details
- Supports resolutions up to 1920 x 1200 pixels
- EDID assistant for simplified management of the EDID settings
- 3 different EDID modes Standard, learning, programming
- No external power supply required
Technical specifications
- Product type
TV/monitor EDID emulator
- Connection type
DVI
- No. of A connectors
1 x
- Type A
DVI socket 29-pin
- No. of B connections
1 x
- Type B
DVI socket 29-pin
- Factory colour
Black
- Video resolution
1920 x 1200 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
EDID emulator
- Range of use
Monitors/TV adapters
- Cable version
DVI-I Dual Link
- Signal flow direction
Unidirectional (uni)
- Halogen-free
No
- UKCA
yes
![ATEN VC060 DVI EDID emulator [1x DVI socket 29-pin - 1x DVI socket 29-pin] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/620663_LB_00_FB/image.jpg?x=100&y=100)
![ATEN VC010-AT VGA EDID emulator [1x VGA socket - 1x VGA socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/620660_LB_00_FB/image.jpg?x=100&y=100)
![ATEN VC080 HDMI EDID emulator [1x HDMI socket - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/620664_LB_00_FB/image.jpg?x=100&y=100)
Documents & Downloads
Datasheet
Datasheet 620663 ATEN VC060 DVI EDID emulator [1x DVI socket 29-pin - 1x DVI socket 29-pin] Black
User & Safety Instructions
User & Safety Instructions 620663 ATEN VC060 DVI EDID emulator [1x DVI socket 29-pin - 1x DVI socket 29-pin] Black
Description
The ATEN VC 060 is a DVI EDID emulator, the EDID a screen saves and emulates a reliable availability of the EDID, so that permanently for a DVI signal source is ensured, and these in the optimal resolution sends the image signal.
The DVI EDID emulator from ATEN is a handy tool when it comes to in a video installation maximum display results. The EDID emulator offers three flexible selection and switching options for the different EDID modes: Standard Mode, programming mode and learning mode. It includes an easy-to-use EDID wizard via which the user the EDID settings easily view, save and manage.
This text is machine translated.
The DVI EDID emulator from ATEN is a handy tool when it comes to in a video installation maximum display results. The EDID emulator offers three flexible selection and switching options for the different EDID modes: Standard Mode, programming mode and learning mode. It includes an easy-to-use EDID wizard via which the user the EDID settings easily view, save and manage.
This text is machine translated.
Features
- Maximum Image Quality - HDTV resolutions 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920x1200)
- Controls the EDID communication between the connected devices automatically
- Signal rates of up to 2.25 GB/s at 1080p
- LED-display of the graphics sources
- Supports wide screen monitors
- Supports Hot plugging
Scope of delivery
- DVI-Emulator
- RS-232 configuration cable
- Dc cable with USB plug
- User manual.
