ATEN VE2812AT HDMI™ HDMI extender 150 m

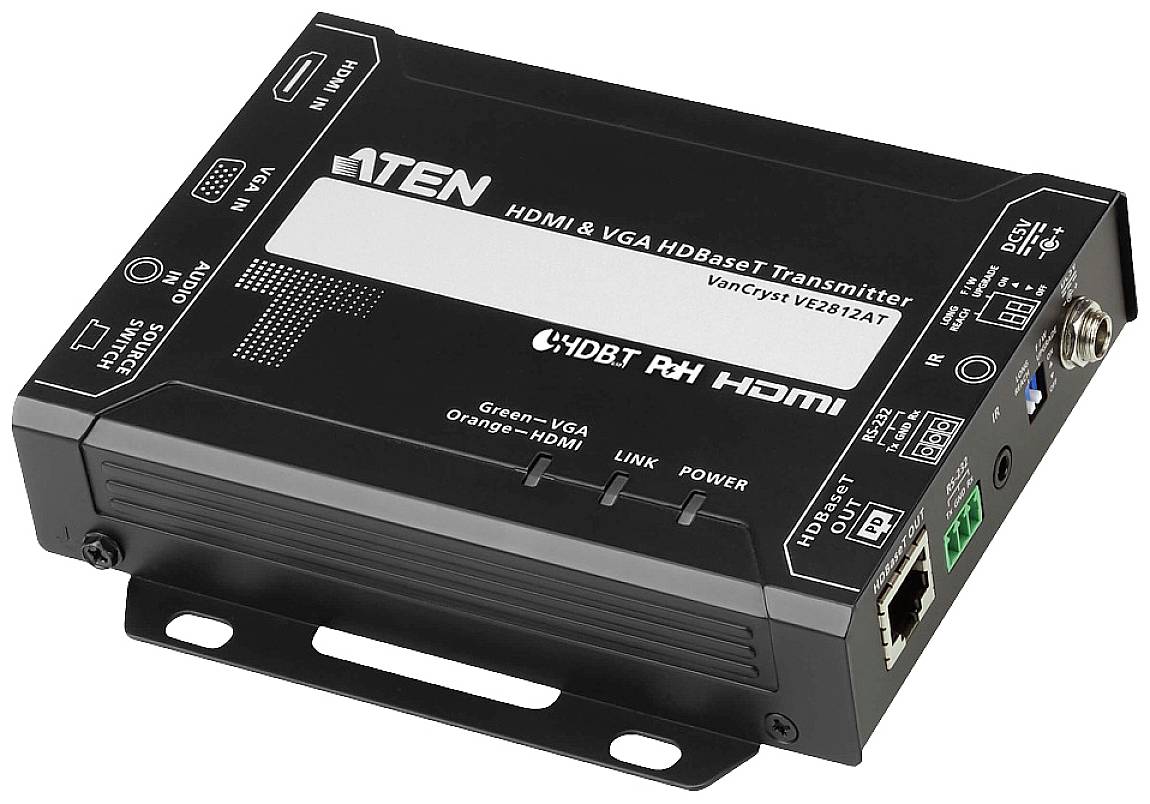

HDMI & VGA HDBaseT transmitter of Aten VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m via a single cat 5e/6/6a with the integrated PoH (power over HDBaseT) function the VE2812AT receives the power supply via the HDBaseT output of the connected device. This makes a power supply unnecessary and reduces the effort for the use of power lines behind the wall. The VE2812AT guarantees reliable HDMI signal transmission and supports 3D, Deep Color and embedded lossless HD audio formats. In addition, it provides for the transmission of VGA (with audio) up to 100 m distance. In addition, it supports the long range mode up to 150 m via a single cat 5e/6 cable at resolutions up to 1080p. For greater flexibility, the VE2812AT can serve as a video switch by connecting two sources and distributing them to an identical output. It is recommended to use the VE2812AT in combination with the VE2812R. The VE2812R can use IR/RS-232 from the VE2812R to the VE2812AT, allowing users to remotely control the VE2812AT via the RS-232 command mode through input port switching. Compatible receivers – VE2812R, VE1812R, VE811R, VE814AR, VE801R, VE802R, VE601R, VE901R or future Aten HDBaseT receiver Advanced HDMI or VGA signals via a single cat 5e/6/6a cable HDMI: 4K / 1080p up to 100 m distance over a cat 5e/6/6a supports HDBaseT long range mode – up to 150 m via a single cat 5e/6 cable at resolutions up to 1080p integrated PoH (power over HDBaseT) Function – the VE2812AT receives the power supply via the HDBaseT output of the connected device supports automatic switching – allows the VE2812AT to switch automatically to a newly connected source
