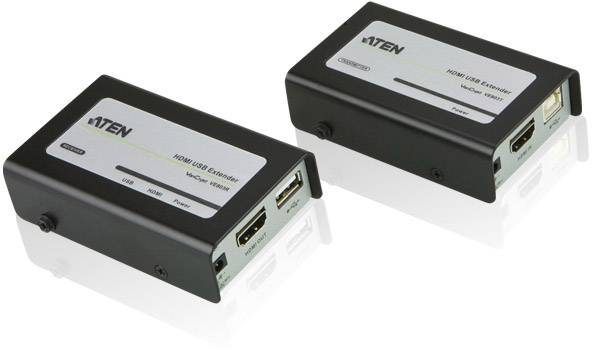

ATEN VE803-AT-G HDMI™, USB Extension via RJ45 network cable 60 m
EAN:
Part number:
Item no:
Datasheet (PDF)
ATEN VE803-AT-G HDMI™, USB Extension via RJ45 network cable 60 m
Highlights & Details

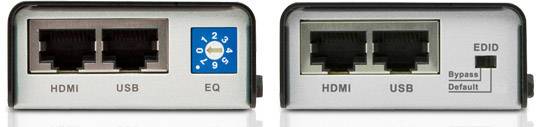

- Uses two Cat 5e Ethernet cables to connect the local and remote device
- Transmission from 1080p to 40 m; transmission from 1080i to 60 m.
- Transparent USB support - supports all USB 2.0 full-speed devices (up to 12 Mbps)
- HDMI (3D, Deep Color) and HDCP compatible – signal rates up to 2.25 Gbps
- This text is machine translated.
Technical specifications
- Supported cable types: CAT5e
- Maximum possible transmission distance: 60 m.
- Working voltage 5 V
- Product type
Extension
- Transfer type
via RJ45 network cable

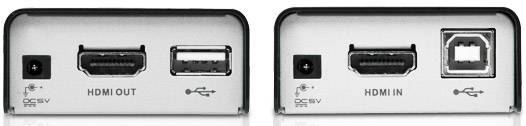

- Interfaces (input)
HDMI™
USB
- Interfaces (output)
HDMI™
USB
- Resolution (max.)
1920 x 1200 p
- Range (max.)
60 m
- Factory colour
Black
Grey
- Weight
0.32 kg
- Length
9.00 cm
- Width
5.74 cm
- Height
2.40 cm
- Dim
(L x W x H) 9.00 x 5.74 x 2.40 cm
- Cable length
240 m
- Version
Adapter
- Type A
HDMI®
- Depth
0 mm
- Cable use
VHS
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879734 ATEN VE803-AT-G HDMI™, USB Extension via RJ45 network cable 60 m
User & Safety Instructions
User & Safety Instructions 1879734 ATEN VE803-AT-G HDMI™, USB Extension via RJ45 network cable 60 m
Description
Scope of delivery
- 1x HDMI-USB-extension VE803T
- 1x HDMI-USB-extension VE803R
- 1x power supply
- 1x USB-cable (1.8 m)
- 1x Mounting Kit
- 1x User's Guide
