ATEN VE807 HDMI™ HDMI extender 60 m
EAN:
Part number:
Item no:
ATEN VE807 HDMI™ HDMI extender 60 m
Technical specifications
- Product type
HDMI extender
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
60 m
- Factory colour
Grey
- Weight
0.591
- Version
Cable extension
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
Networks
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342396 ATEN VE807 HDMI™ HDMI extender 60 m
Description
The VE807 HDMI/Audio cat 5 extender with MK wall plate is designed so that it can be conveniently mounted in a single-use junction box for the UK, Singapore, Hong Kong and other markets using MK connection boxes. It extends HDMI and audio signals up to 60 meters via a cat 5e/6 cable and supports wide-screen formats and provides for an excellent video quality.
The VE807 can be supplied with power with a second cat 5e/6 cable simply at the transmitter or receiver side. The compact wall plate design of the VE807 makes bulky cables unnecessary, which was a neat and comfortable installation. Therefore, it is a perfect solution for function rooms, museums and any facility that requires equipment or cabling to be kept away from the public eye.
This text is machine translated.
The VE807 can be supplied with power with a second cat 5e/6 cable simply at the transmitter or receiver side. The compact wall plate design of the VE807 makes bulky cables unnecessary, which was a neat and comfortable installation. Therefore, it is a perfect solution for function rooms, museums and any facility that requires equipment or cabling to be kept away from the public eye.
This text is machine translated.
Features
- Uses two cat 5e/6 cables to connect the local and remote devices - one to transmit video and the other to power.
- Remote power supply from the transmitter or receiver side
- Extends the distance between the HDMI source and the screen
- Supports superior video quality up to 1080p at 60Hz at a distance of 40 m; 1080i at 60Hz at a distance of 60m
- Designed for disposable junction boxes for the UK, Singapore, Hong Kong and other markets using MK junction boxes.
- HDMI (3D, Deep Color); HDCP compatible
- Supports 8-segment equalizer adjustment via switch
- Supports widescreen formats, supports hot-plugging, supports stereo audio
- Integrated 8 KV/15 KV ESD protection
- Plug-and-play without any software installation required
- LED display of power source/connection status
Scope of delivery

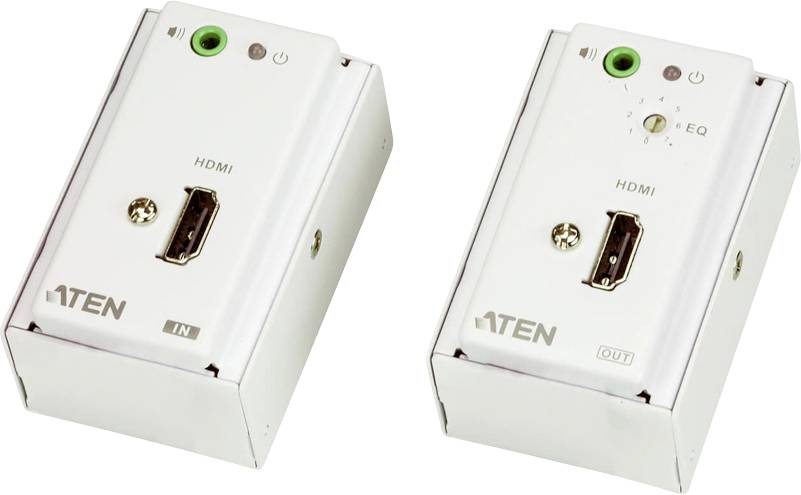

- 1x VE807 HDMI/Audio cat 5 transmitter with MK wall plate
- 1x VE807 HDMI/Audio cat 5 receiver with MK wall plate
- 1x connection block connection
- 1x 0AD6-1909-06EG power supply
- 2x MK type wall plate covers
- 8x Screw covers
- 1x screw set
- 1x User Guide
