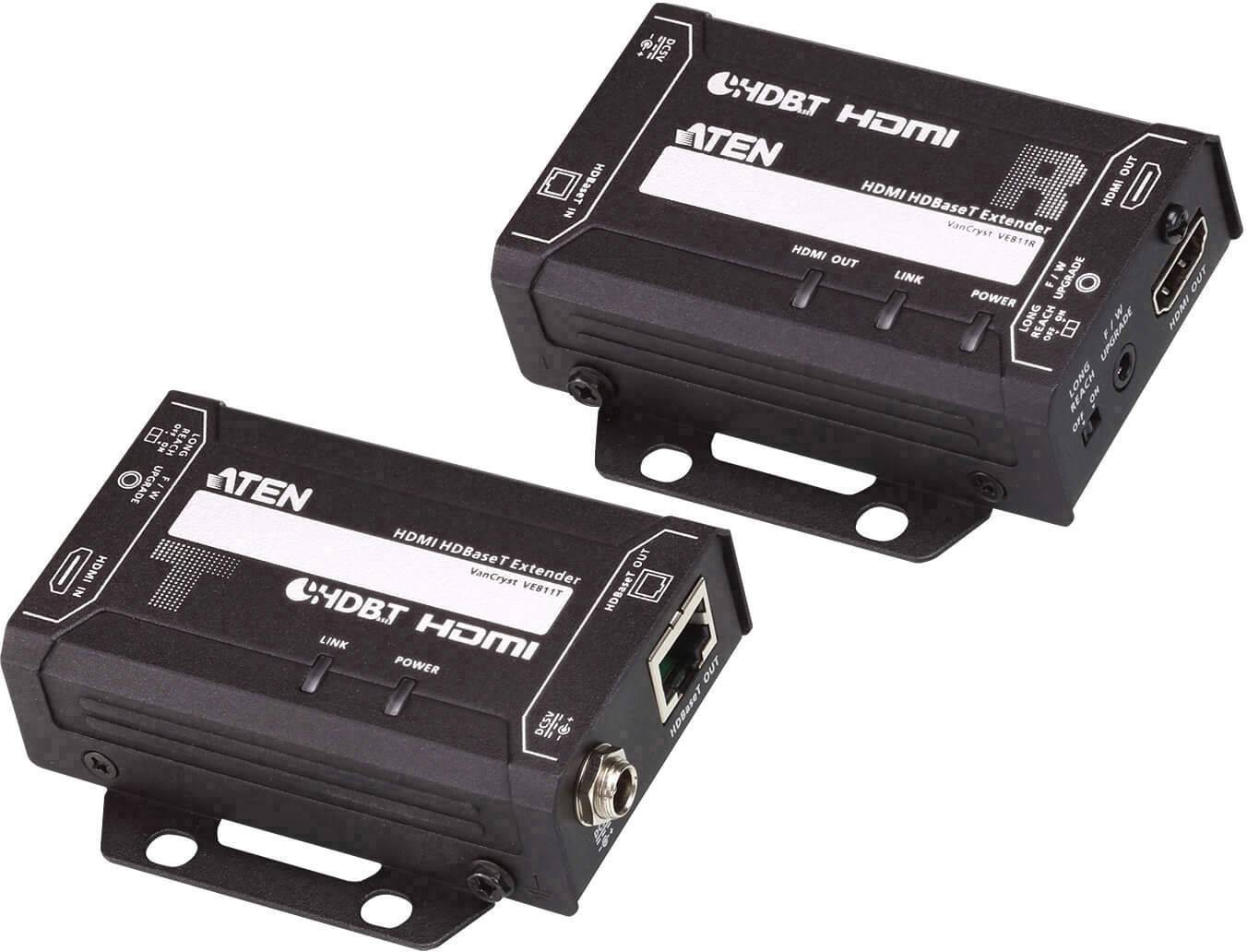

ATEN VE811-AT-G HDMI™ Extension via RJ45 network cable 150 m
EAN:
Part number:
Item no:
Datasheet (PDF)
ATEN VE811 AV transmitter & receiver Black Audio-/Video-Power amplifier
Highlights & Details
- HDBaseT connectivity – extends an HDMI connection up to 100 m. Via a single cat 5e/6/6a or Aten 2L-2910 cat 6 Cable
- Supports HDBaseT long range mode – up to 150 m. Via a single cat 5e/6 cable at resolutions up to 1080p
- HDCP 2.2 compatible
- Supports resolutions up to Ultra HD 4kx2k and 1080p Full HD
- This text is machine translated.
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
4096 x 2160 p
- Range (max.)
150 m
- Factory colour
Black
- Weight
0.33 kg
- Length
8.64 cm
- Width
7.30 cm
- Height
2.47 cm
- Dim
(L x W x H) 8.64 x 7.30 x 2.47 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879736 ATEN VE811-AT-G HDMI™ Extension via RJ45 network cable 150 m
User & Safety Instructions
User & Safety Instructions 1879736 ATEN VE811-AT-G HDMI™ Extension via RJ45 network cable 150 m
Description
Scope of delivery

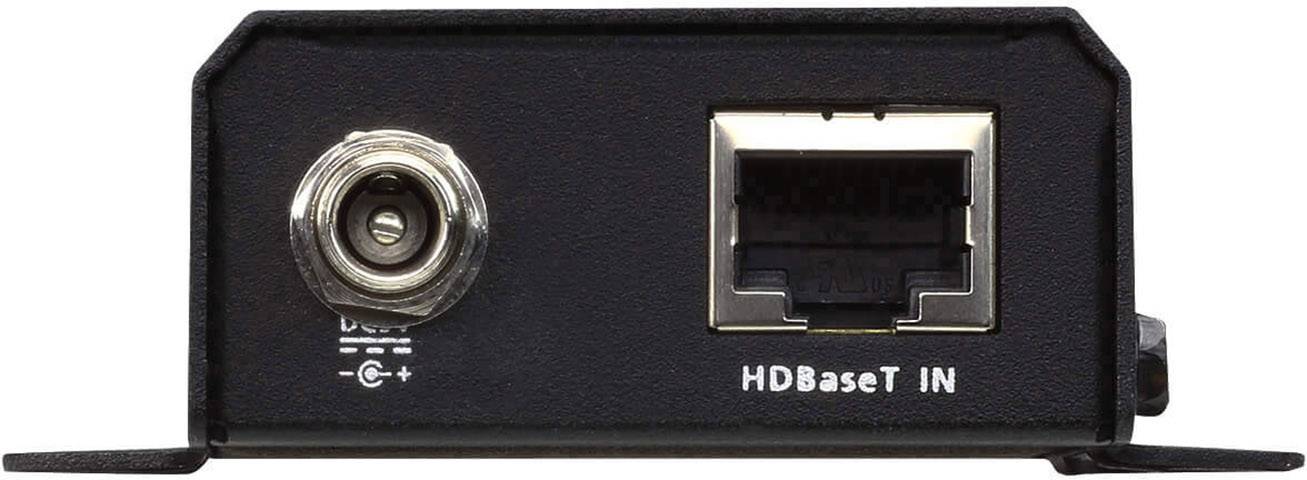

- 1x VE811T HDMI HDBaseT transmitter

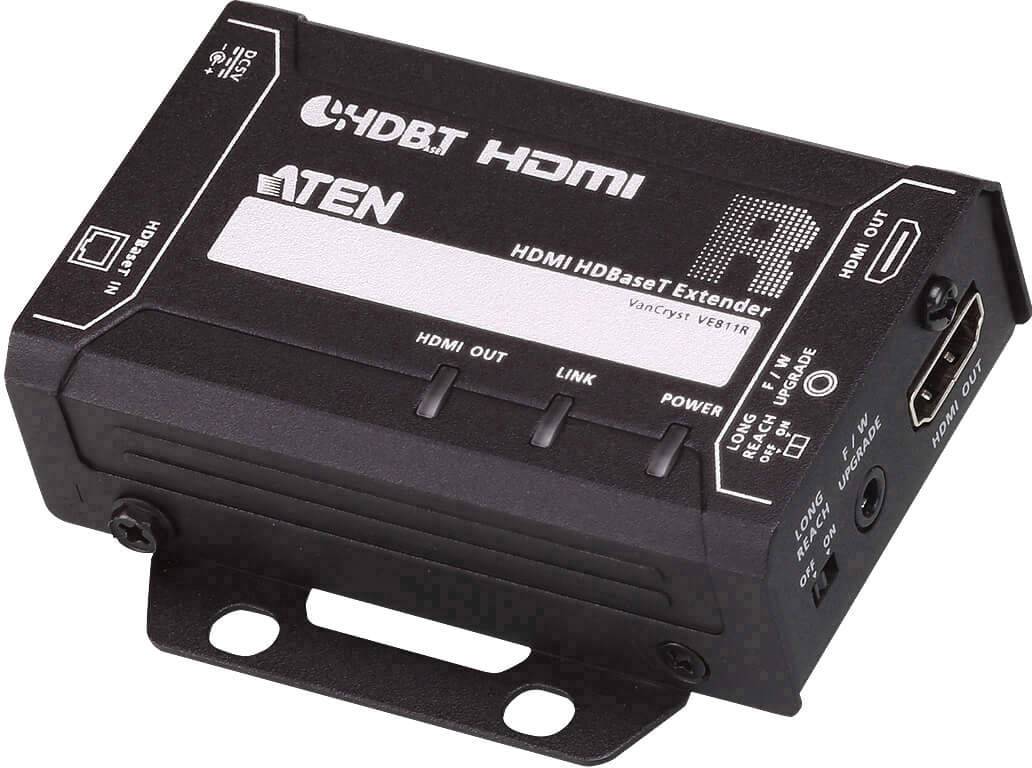

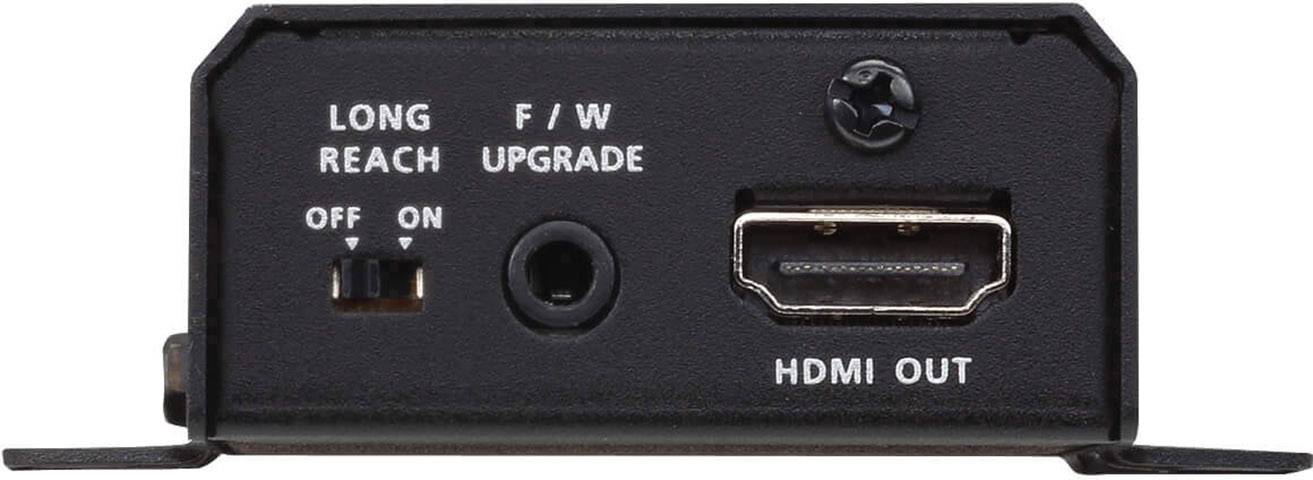

- 1x VE811R HDMI HDBaseT receiver
- 2x 0AD6-1F05-26EG Power Supplies
- 1x User's Guide
