ATEN VE883AK1 HDMI extender HDMI 3840 x 2160 Pixel

True 4K HDMI Extender (4K@300m)

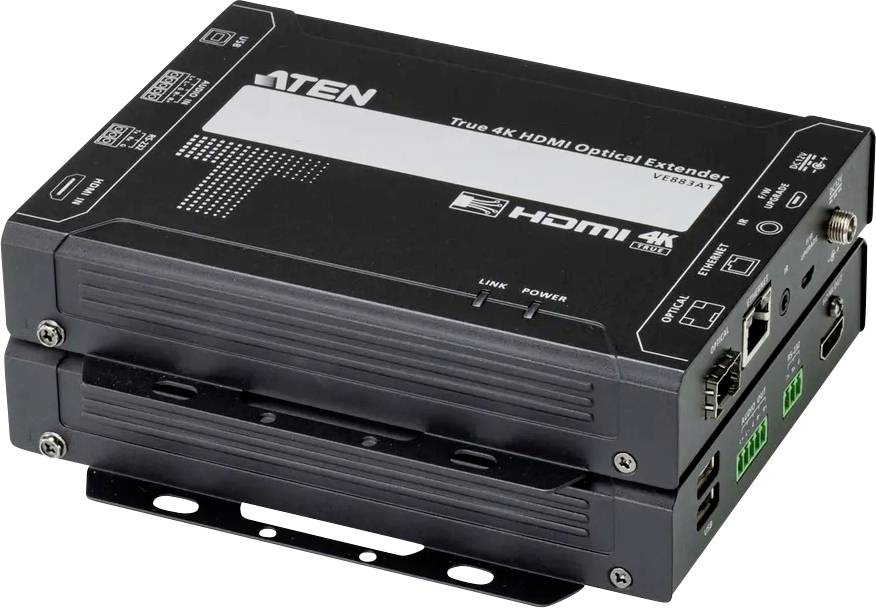

The VE883AK1 is an optical True 4K HDMI Extender consisting of a VE883AT transmitter and a VE883AR receiver to convert HDMI, Audio, USB 2.0, IR, RS-232 and Gigabit Ethernet signals of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) transmitted without loss via 300 m via a single duplex glass fiber cable. The glass-fiber cables are electrically insulated and thus immune to RFI and EMI, WAS makes a need for complex cabling. With ATEN's exclusive FarSmooth technology, the VE883AK1 prevents delays and freezes by adjusting the output rates to the input rates and ensuring that the screen is stable, even and identical to the source, especially for long-distance applications where uninterrupted video streams are required.

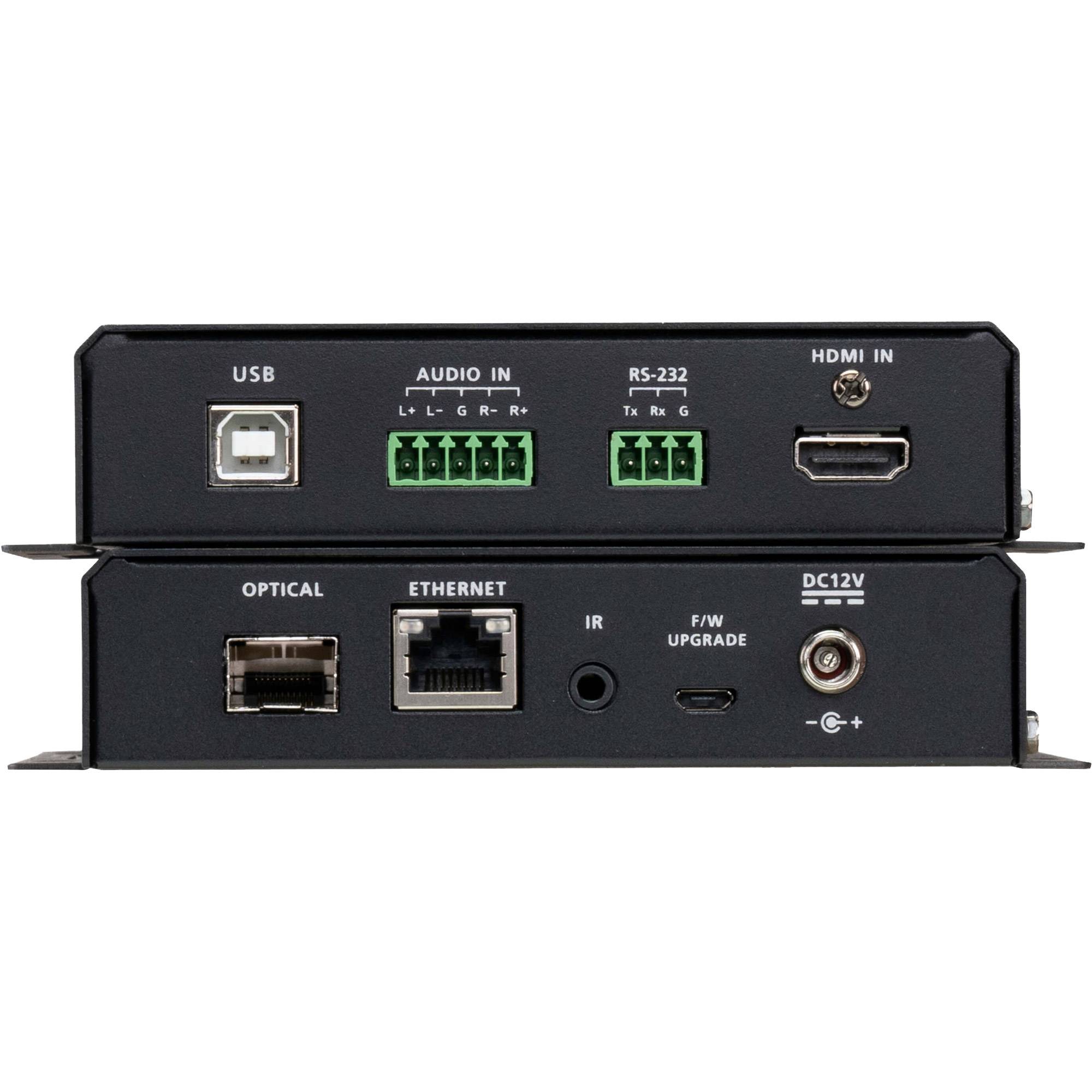

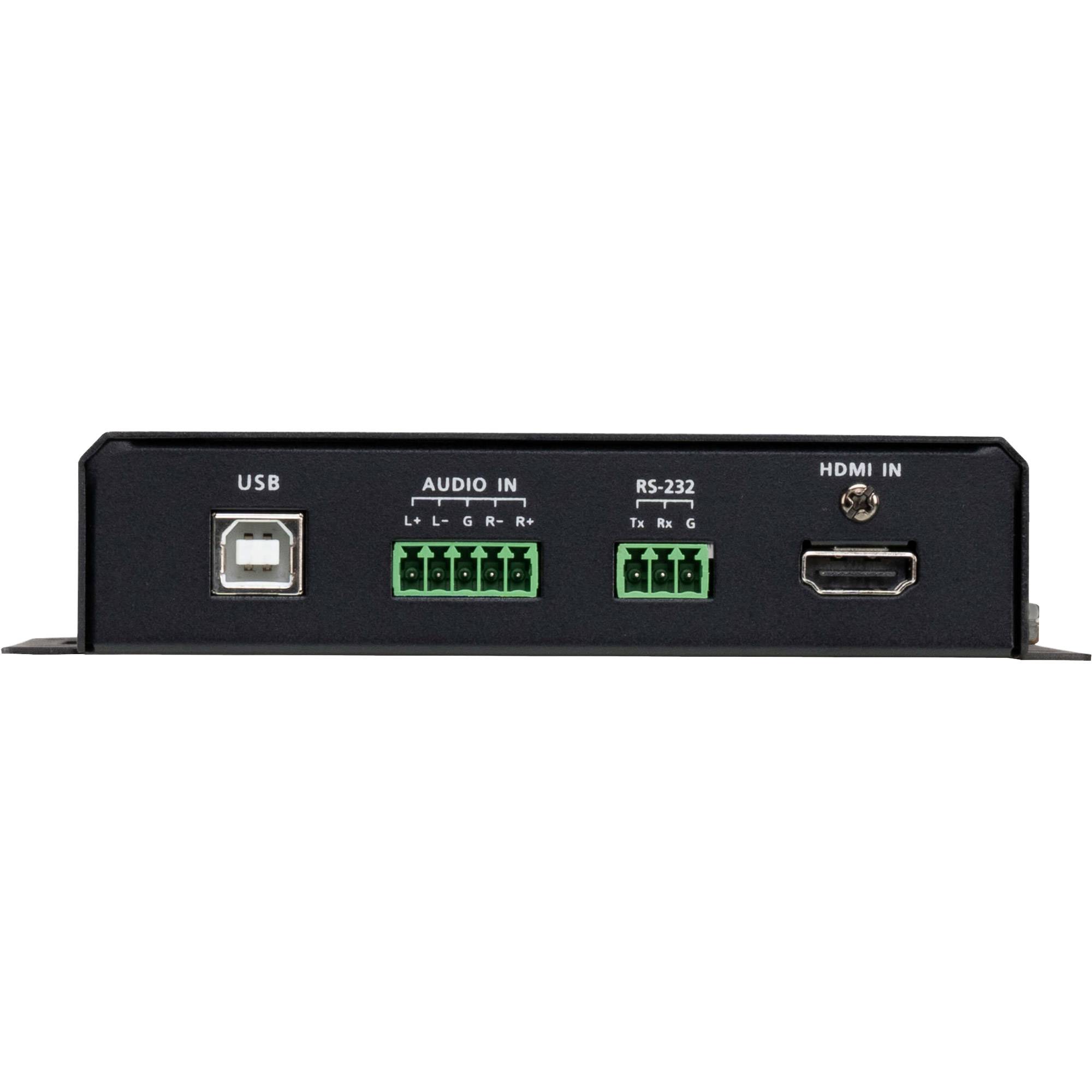

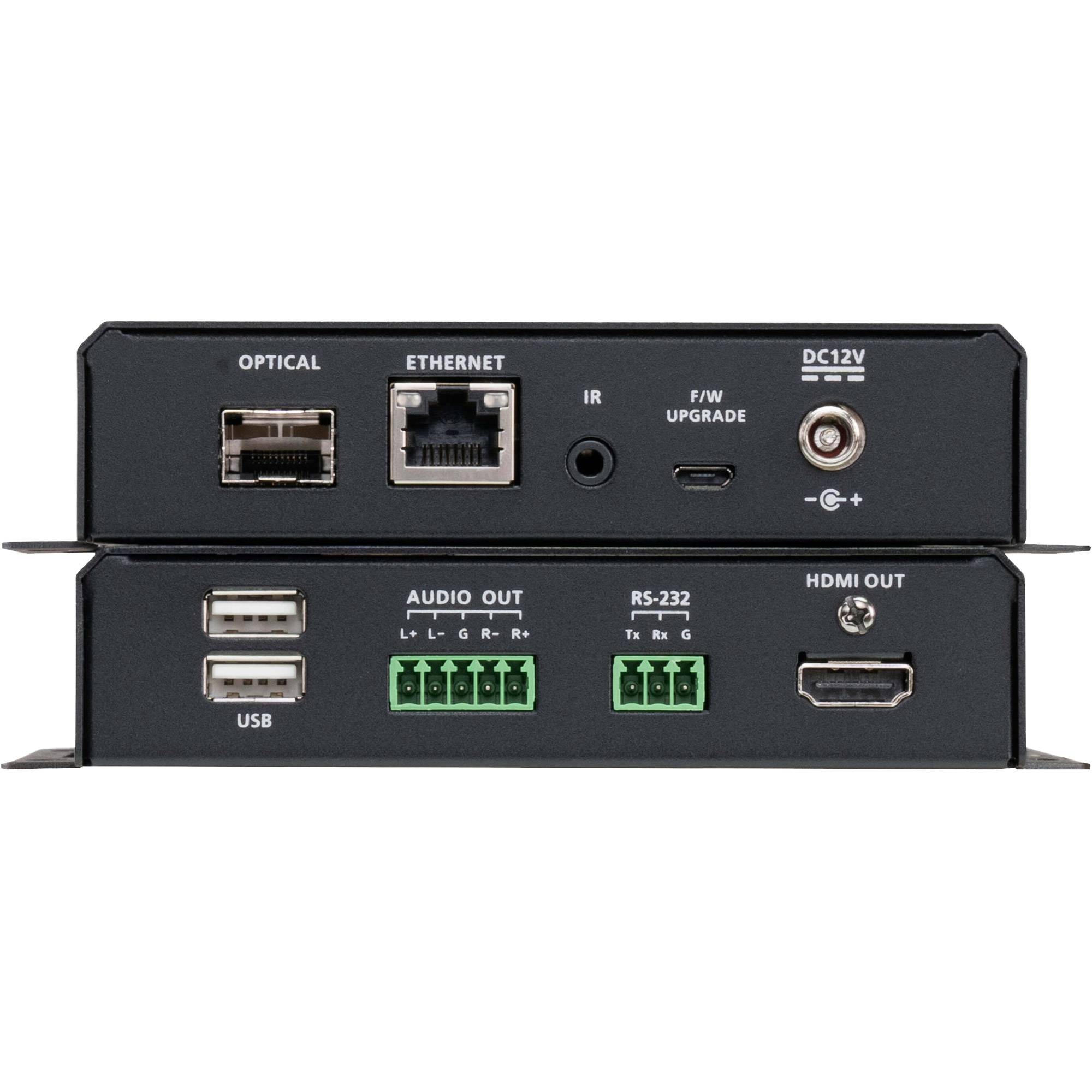

The VE883A has interfaces such as HDMI input/output, analogue audio input/output, USB 2.0, IR, RS-232 and Gigabit Ethernet. Connectivity to USB peripherals is enhanced with VE883A's dual USB type A ports. For point-to-point extensions, pluggable SFP+ duplex multi-mode modules are included that serve as an optical connection.

Extends HDMI video, audio, IR, RS-232 control and Ethernet signals to up to 10 km using a duplex fiber-optic cable

Loss-free transmission of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) signals

ATEN's exclusive FarSmooth technology prevents delays and freezes by adjusting the output rates to the input rates and ensures that the 4K@60Hz screen is stable, smooth and identical to the source due to the bandwidth of 10 Gbps

Supports transparent USB 2.0 signals for extended connectivity with USB peripherals at a maximum transfer rate of 25 MB/s.
