ATEN VK0200TTK KVM changeover switch Keyboard
EAN:
Part number:
Item no:
Highlights & Details
ATEN VK0200TTK KVM changeover switch
- Designed for installation in 2-speed EU and MK-connection boxes
- Fully adjustable with 125 layout combinations from 6 to 12 keys
- Supports native KNX IP for building management systems
- Compatible with TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF and PJLink
- Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and their checksum data
- Supports Telnet CLI (command line interface) mode for third-party integration
- Supports the Modbus protocol - enables integration with Modbus devices, including TCP, RTU and their checksum data
- Supports Telnet CLI (command line interface) mode for integration of third-party systems
- Web GUI for easy system configuration
- Supports SSH communication for data monitoring
Technical specifications
- Product type
KVM changeover switch
- Controller
Keyboard
- Ethernet ports
1
- Switch function
Key
- Factory colour
White
- Weight
800 g
- Length
151.2 mm
- Width
48 mm
- Height
86.2 mm
- Dim
(L x W x H) 151.2 x 48 x 86.2 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017712 ATEN VK0200TTK KVM changeover switch Keyboard
Description
The VK0200 is a fully customizable 12-button control panel,
The VK0200 is a fully customizable 12-button panel that integrates control into a keypad and presents it as an all-in-one solution. Designed to control small and medium sized conference and classroom environments, the VK0200 is a ready-to-use solution that easily connects devices, configures them using the intuitive VK6000 configurator software, and flexibly adapts keypad key functions and layout to suit most applications.

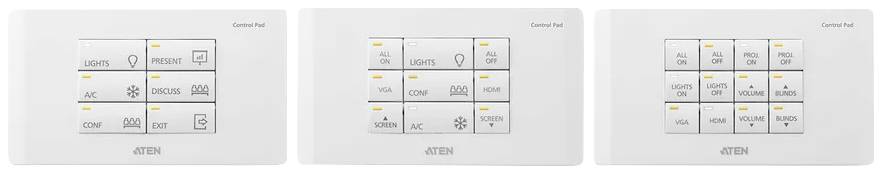

The ATEN control system is an Ethernet-based management system that connects all hardware devices in a room to one another, allowing easy control. The VK0200 control panel not only acts as the main controller that connects hardware devices, but also as a control interface with adjustable buttons and layout. The flexible keypad can be assigned in 125 different combinations of 6 to 12 keys, which snap together as simply as LEGO.
This text is machine translated.
Features
- Manufacturer: ATEN
- Product group: KVM (IP) extensions
- Product type: KVM over IP switch
Scope of delivery
- 1 x VK0200 12-button control panel
- 1x key package
- 6x connection blocks
- 1x 0X12-0078-100G front plate
- 1x user manual
