ATEN VK112EUTTK KVM changeover switch Keyboard
EAN:
Part number:
Item no:
Highlights & Details
ATEN VK112EUTTK KVM changeover switch
- Keypad - provides the connection to the ATEN HER control system
- Fully adjustable with 125 layout combinations from 6 to 12 keys
- System LED-displays for quick control of the connection status
- Two-color key LEDs for clear display and visibility in dark conditions

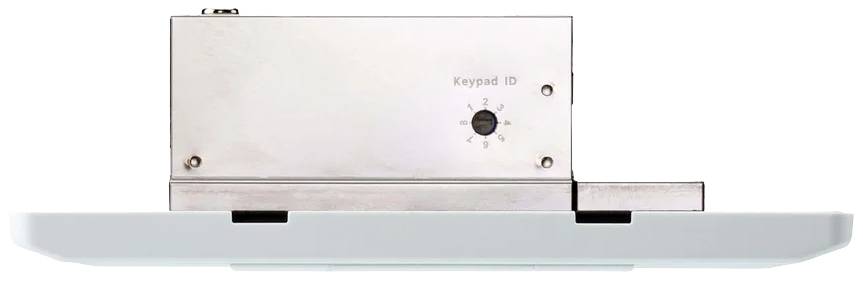

- Simple ID connection with control box for Ethernet communication
- Up to 8 keypads on one control box for future scalability
- Versatile modes support flexible behavior settings for each key
- Intuitive Web GUI for simple keypad configuration

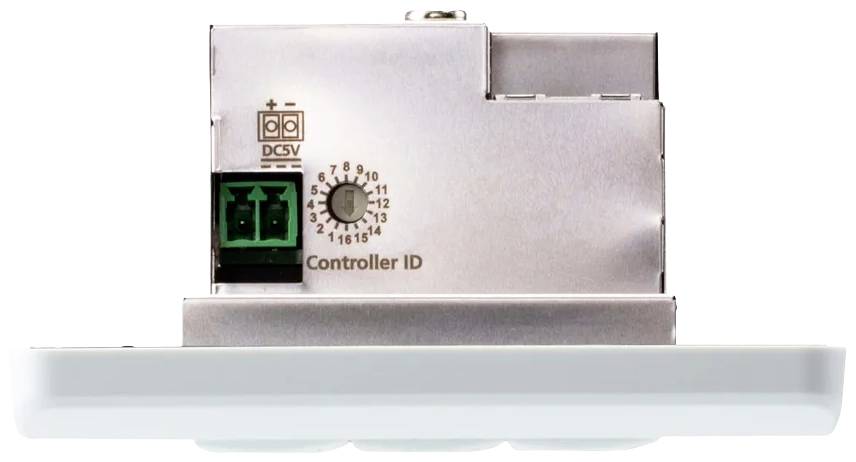

- Two power supplies with Power over Ethernet (PoE) and DC power supply
Technical specifications
- Product type
KVM changeover switch
- Controller
Keyboard
- Switch function
Key
- Distributor/switch features
LED display
- Factory colour
White
- Weight
840 g
- Length
147.6 mm
- Width
48 mm
- Height
83.2 mm
- Dim
(L x W x H) 147.6 x 48 x 83.2 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017713 ATEN VK112EUTTK KVM changeover switch Keyboard
Description

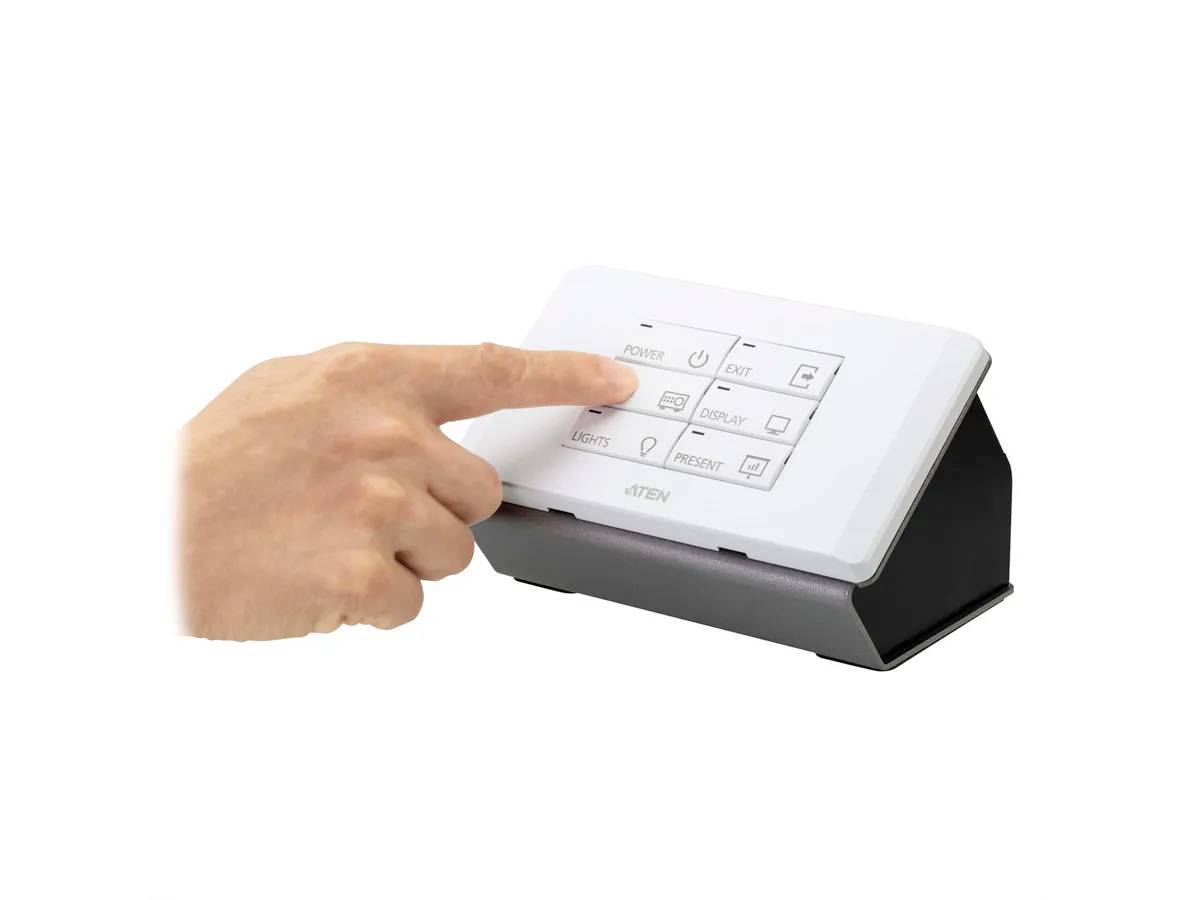

The VK112EU is an individually customizable 12-key keypad

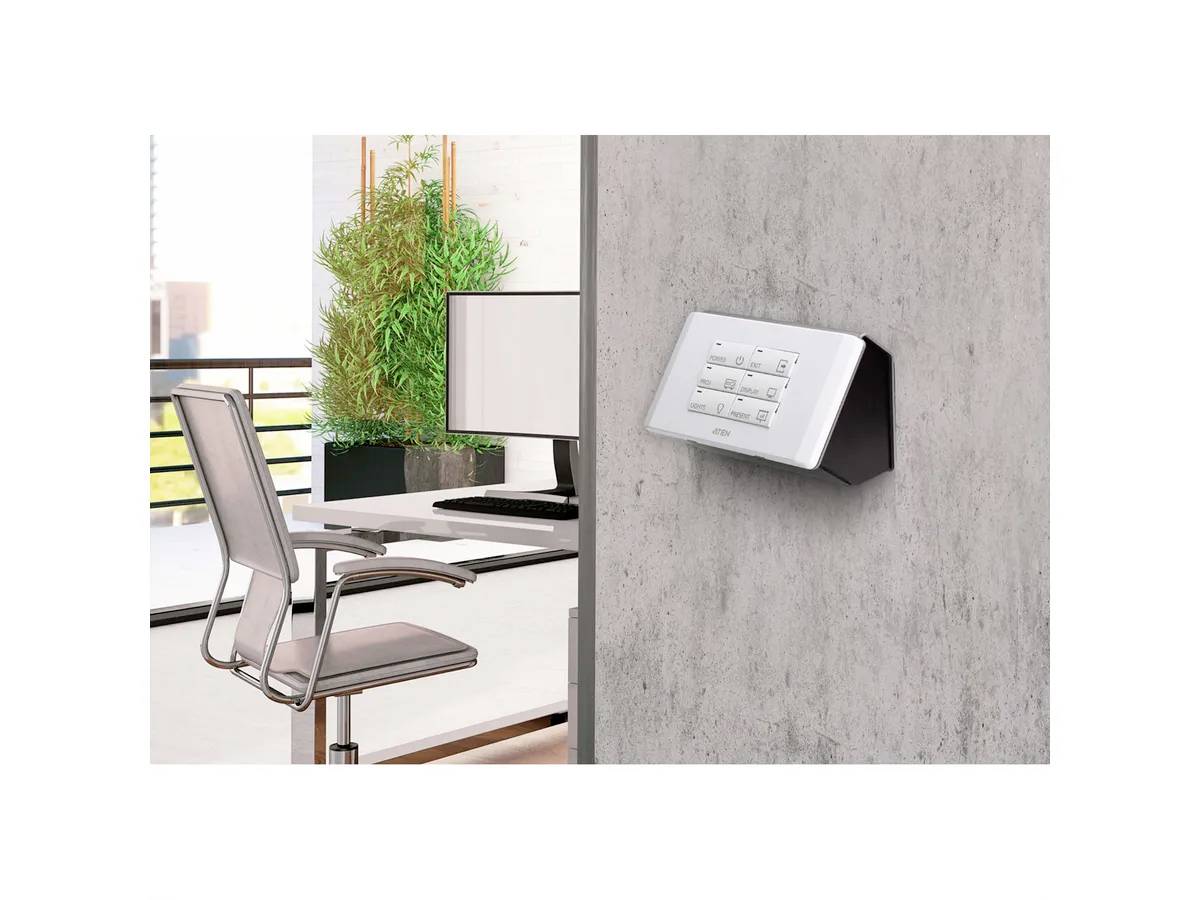

The VK112EU is an individually customizable 12-key keypad for use with the ATEN control system. The keypad provides an interface for controlling devices in a room from a standard front panel mounted on a wall.

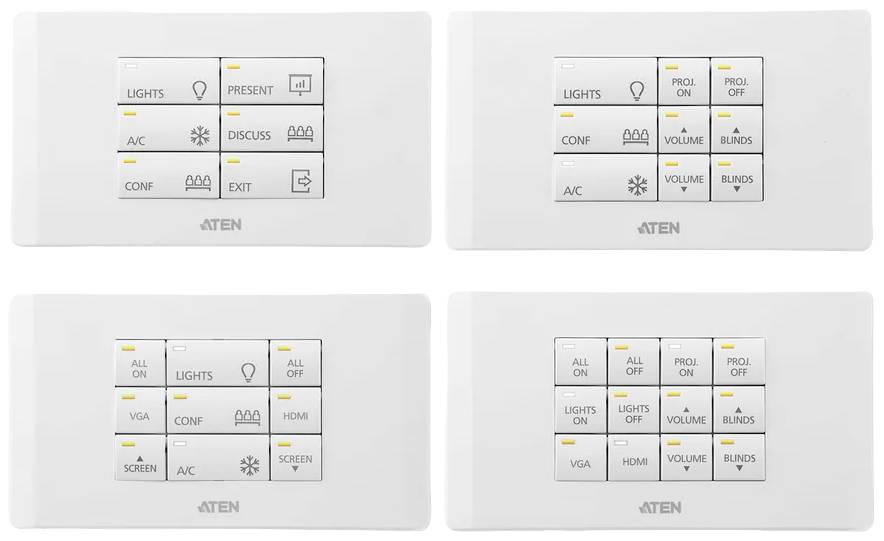

The flexible 2-speed keypad can be stuck together in 125 different combinations of 6 to 12 keys, which snap together as simply as LEGO. If you connect the VK2200 / VK1200 / VK2100A / VK1100A Control Box or the VK0100 / VK0200 control pad over a LAN, you can easily configure the desired control of each connected device via the keyboard with the VK6000 software.
With the keys ready to use immediately you have an immediate and intelligent control of the systems via a keypad or keypad that can manage any device in the room. The VK112EU is an affordable solution that is ideal as a primary interface in meeting rooms or as a secondary device control in classrooms and conference centers.
This text is machine translated.
The VK112EU is an individually customizable 12-key keypad for use with the ATEN control system. The keypad provides an interface for controlling devices in a room from a standard front panel mounted on a wall.
The flexible 2-speed keypad can be stuck together in 125 different combinations of 6 to 12 keys, which snap together as simply as LEGO. If you connect the VK2200 / VK1200 / VK2100A / VK1100A Control Box or the VK0100 / VK0200 control pad over a LAN, you can easily configure the desired control of each connected device via the keyboard with the VK6000 software.
With the keys ready to use immediately you have an immediate and intelligent control of the systems via a keypad or keypad that can manage any device in the room. The VK112EU is an affordable solution that is ideal as a primary interface in meeting rooms or as a secondary device control in classrooms and conference centers.
This text is machine translated.
Features
- Manufacturer: ATEN
- Product group: KVM (IP) extensions
- Product type: KVM over IP switch
Scope of delivery
- 1x VK112EU 12-button operator panel (EU, 2 speeds)
- 1x key pad
- 1x terminal strip
- 1x front panel
- 1x user manual
