ATEN VM5404HA HDMI matrix switcher HDMI 1920 x 1080 Pixel

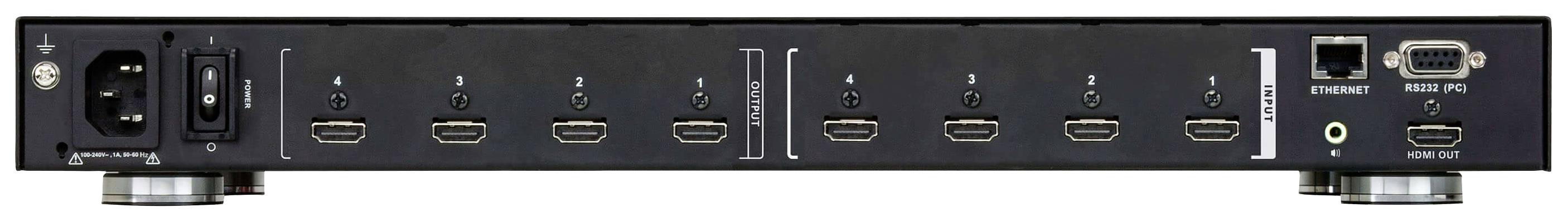

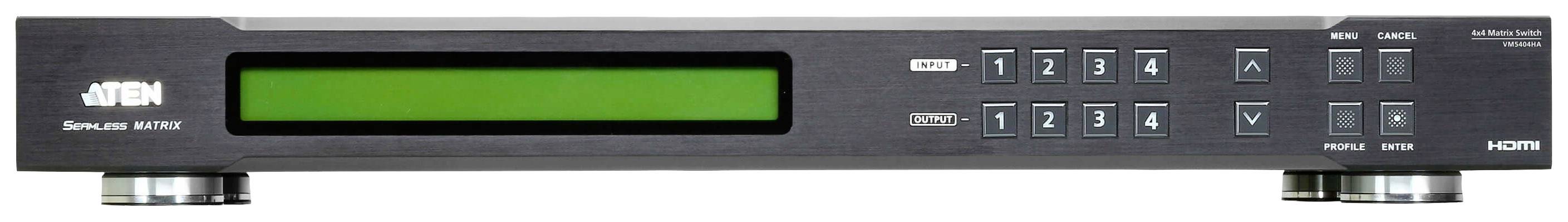

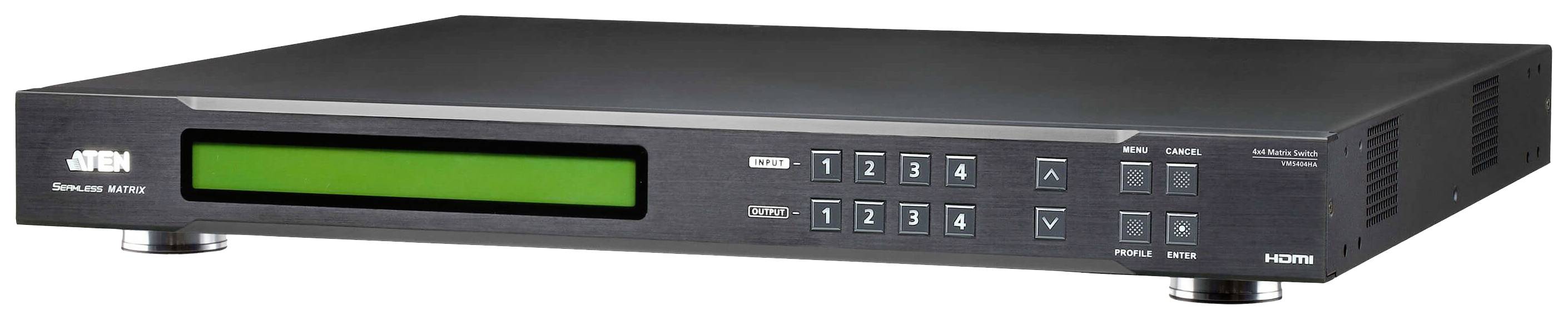

With the 4 x 4 HDMI matrix switch, each of the 4 HDMI input signals can be forwarded to any of the 4 HDMI output channels, without reducing flexibility. Several methods are available for controlling the device, such as the front panel push buttons, RS-232 and Ethernet (Telnet/Web GUI) connections. The VM5404HA also supports the ATEN video matrix control app to display and control the device status. It can also be integrated into the ATEN control system, a platform on which Ethernet-based ATEN video matrix switches and third-party devices (e.g. Projectors, lights, AV devices) can be centrally monitored, managed and controlled. Signal management is facilitated by the LCD screen on the front, which provides the user with a quick overview of all connection connections. In addition, the local HDMI output allows the real-time monitoring of multiple sources on a single screen, exactly where the matrix switch is located.

As the ultimate video wall solution, the FPGA-based VM5404HA has the exclusive seamless switch technology from ATEN, which ensures uninterrupted video streams, real-time control and stable signal transmission. The built-in scaler automatically scales each incoming video to the native resolution of the output screen to achieve the best video and picture quality. In order to prevent teaming of the screen, the VM5404HA uses the FrameSync technology for synchronizing the scaler-output frame rates with the picture rates of the input signal and thus guarantees breathtaking video walls without tearing.

Speaking of audio functionality: The matrix switch has an audio de-embedding function that allows digital audio from each HDMI input to be assigned to the stereo output, WAS increases the flexibility of the installation. The VM5404HA is an HDMI video routing solution that Ideal is suitable for scenarios where a customizable real-time AV signal transport from multiple sources to one or more destinations is required, such as control centers, server rooms, and all types of video wall applications.
