Buy ATEN VM7104-AT VGA controller card

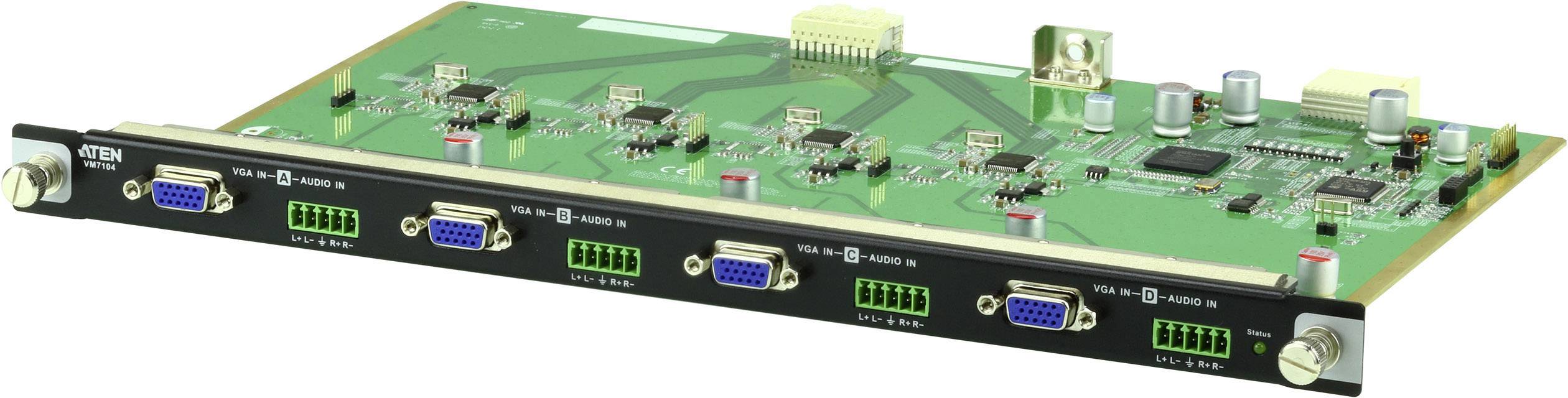

Expansion card with multiple VGA and audio ports on a green circuit board, suitable for rack servers or switching systems.

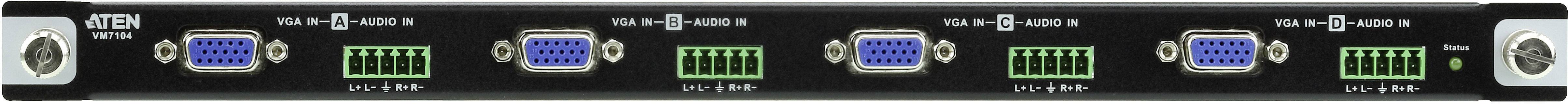

Network distributor with four blue VGA ports and three green connection blocks, arranged symmetrically in a row.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ATEN 4 Port VGA input card

Input card suitable for the ATEN VM 1600 matrix switcher

Technical specifications

Product type: VGA controller card

Connection type: VGA

Factory colour: Black

Weight: 930 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1462415 ATEN VM7104-AT VGA controller card

User & Safety Instructions

User & Safety Instructions 1462415 ATEN VM7104-AT VGA controller card

Description

The VM7104 4-Port VGA input card offers a simple possibility of forwarding 4 VGA video and audio sources to up to 16 if you in combination with ATEN Modular matrix switch is used. The VM7104 supports RGBHV/RGBS / YCbCr/YPbPr input signals; stereo audio output can be embedded in the HDMI audio. The card has hot-swappable design that is compatible with the VM1600, so that the device is not switched off when the card is replaced.

This text is machine translated.

Features

Connection with up to 4 VGA or component inputs.
Supports RGBHV/RGBS / YCbCr/YPbPr input signals
Hot-swap design for easy integration of I/O boards
Compatible with the VM1600 and can be mixed with other modular output cards for optimum flexibility
