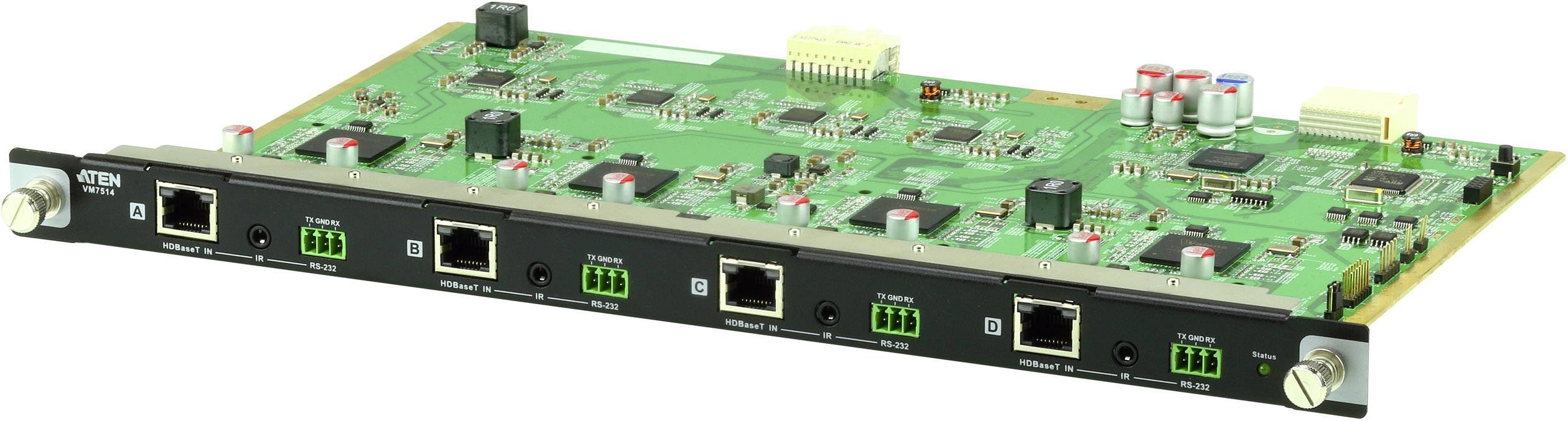

A green circuit board with multiple network interfaces and electronic components used for data processing.

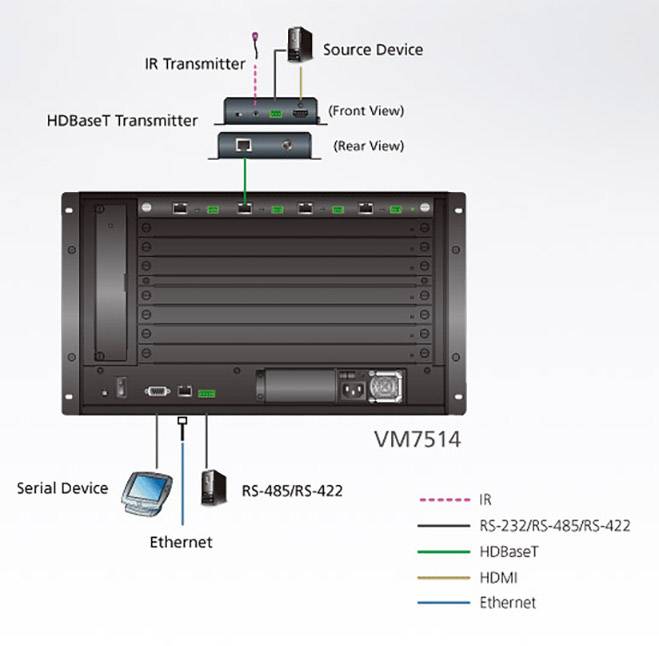

Block diagram of an AV installation. An IR transmitter and a source device are at the top. An HDMI device is connected to an HDR device. Below are serial and Ethernet connections.

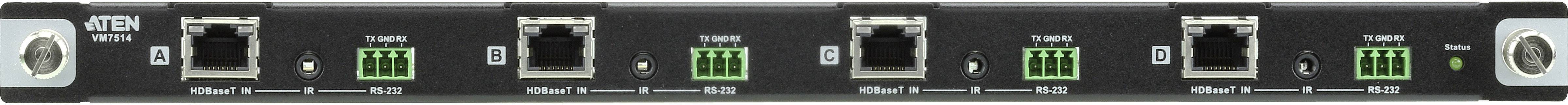

A black rack-mounted device with multiple ports and green socket spaces on the front panel. It appears to be part of a network system.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ATEN 4-Port HDBaseT input card

Input card suitable for the ATEN VM 1600 matrix switcher

Technical specifications

Product type: HDBaseT controller card

Connection type: HDMI

Type A: HDMI plug

Type B: HDMI plug

Factory colour: Black

Weight: 1047 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1462416 ATEN VM7514-AT HDBaseT controller card

User & Safety Instructions

User & Safety Instructions 1462416 ATEN VM7514-AT HDBaseT controller card

Description

The VM 7514 4-Port HDBaseT input card offers a simple possibility to 4 HDMI sources connected HDBaseT transmitters at 4 to HDMI monitors connected HDBaseT receivers forward, in combination with the ATEN Modular matrix switch up to 16 input and output connections to forward 16 Hdbaset

This text is machine translated.

Features

Compatible with the VM 1600 and can be used with other modular I/O cards for optimum flexibility can be mixed
Bi-directional RS-232 channel allows you to connect to serial terminals or serial devices, for example, touch screens and barcode reader
HDBaseT connectivity - extends 4 HDBaseT connections up to 100 meters via a single Cat 5e/6 cable
HDBaseT anti-jamming-resistant to signal disturbances during transfer of video through HDBaseT technology
Bi-directional IR channel IR transmission per direction is processed simultaneously
Hot-swap design for easy integration of I/O boards
