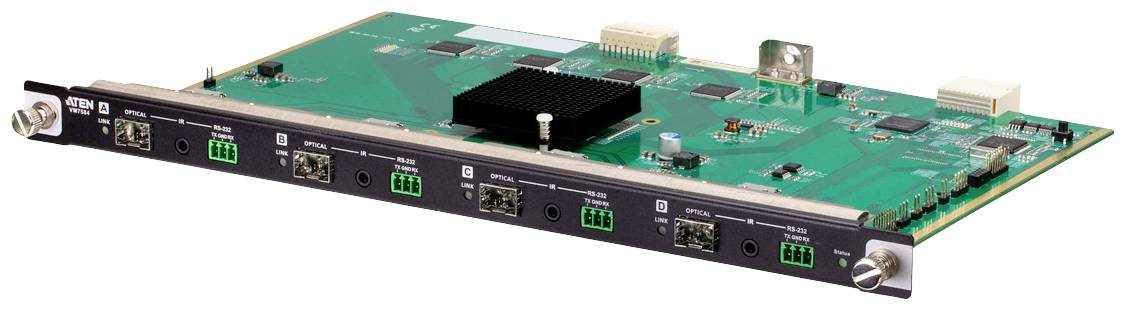

ATEN VM7584K1 Expansion card Ultra HD compatibility Black
EAN:
Part number:
Item no:
Aten VM7584K1 4-Port 10G Optical Input Board 4K 300m
Technical specifications
- Max. Distance: 300 m.
- Product type
Expansion card
- No. of inputs
4 x
- Interfaces (input)
HDMI™
- Interfaces (output)
SFP+
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
0.57 kg
- Width
23.8 cm
- Height
35.2 cm
- Depth
2.33 cm
- Dim
(W x H x D) 23.8 x 35.2 x 2.33 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558240 ATEN VM7584K1 Expansion card Ultra HD compatibility Black
Description
4-Port Optical 10G Input Card The VM7584 4-Port Optical 10G Input Card provides a simple way to route 4 HDMI sources via optical extenders and up to 16/32 input and 16/32 output ports to a modular Aten Matrix Switch via various AV interfaces to HDMI monitors. Designed with fiber optic technology for long-distance transmission, the VM7584, along with its SFP+ modules, extends the uncompressed 4K signal up to 300m (with VM7584K1) or 10km (with VM7584K2) over duplex fiber optic cables. Fiber simplifies cabling by ensuring long-distance, interference-free transmission of audio, video, IR, and RS-232 control signals over a single set of duplex cables that can easily be connected to the SFP+ slot. In addition, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI specifications including 3D, Deep Color and 4K to ensure excellent video quality. Aten VM input/output cards are hot swappable, was designed to provide system integrators with great flexibility and efficiency in installation and maintenance. Compatible with the VM3250 / VM3200 / VM1600A; can be combined with modular I/O cards of all kinds for optimum flexibility Advanced Audio/video, IR and RS-232 control signals over long distances via duplex glass fiber cable Excellent video quality over long distances – up to 4096 x 2160 at 60 Hz (4:2:0), 300 m with VM7584K1 via multimode cable or 10 km with VM7584K2 via singlemode cable HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible Consumer Electronics Control (CEC) support Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, For example, touch screens and bar code reader Bi-directional IR channel – IR transmission is processed in direction, in the range from 30 kHz to 60 kHz EDID Expert™– configures optimal EDID settings for smooth switching on, high-quality display , and use of the optimum resolutions via several screens Hot-swappable fiber module and I/O cards for easy integration and maintenance
