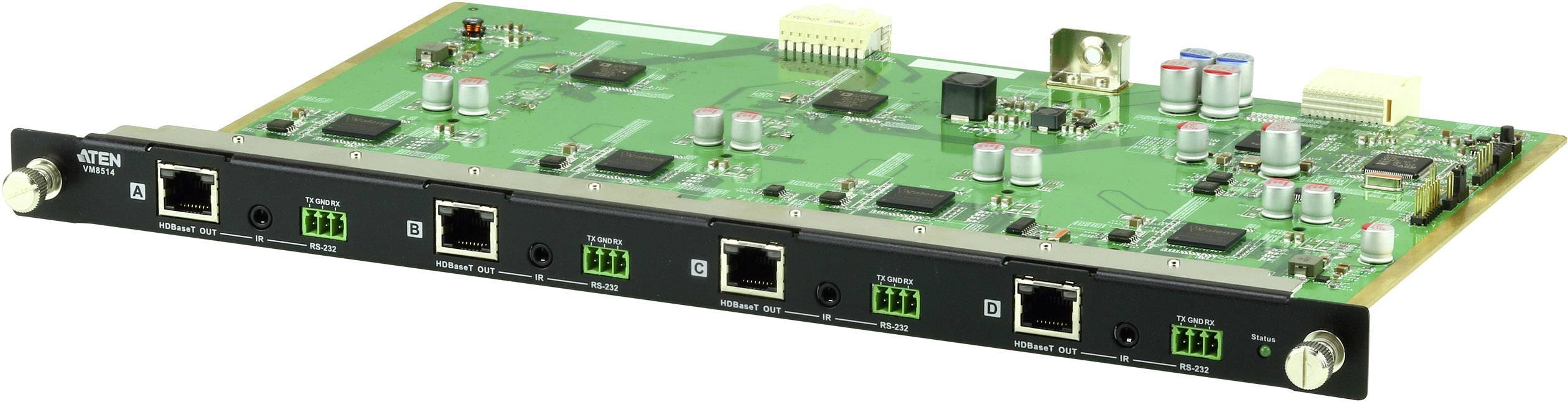

Electronic circuit board with multiple connections and components mounted on a metal plate, likely for network applications.

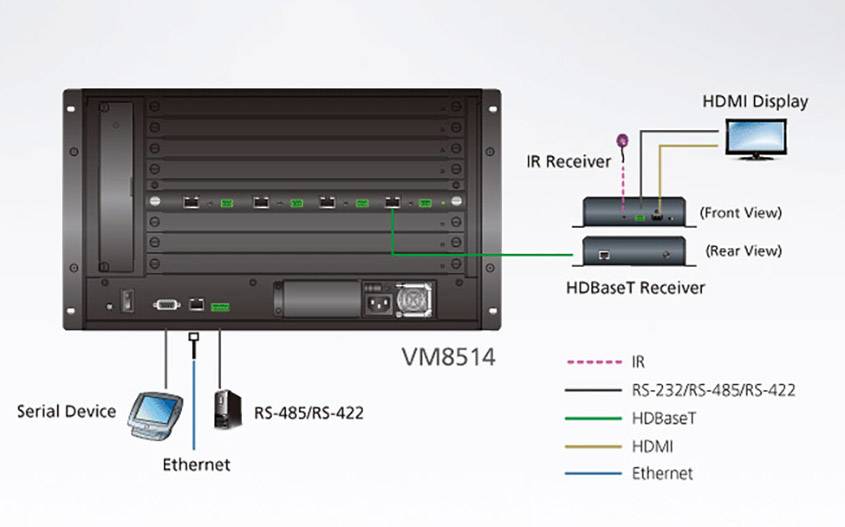

Diagram of the VM8514 with Connections. Shows Ethernet, HDMI, RS-232/RS-485/RS-422, HDBaseT, IR and their connection to devices.

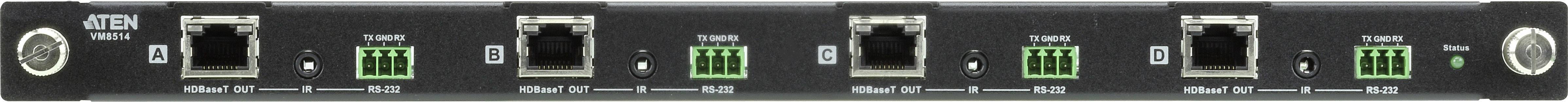

A black network device with six ports, including two RJ45 ports and four green connection terminals.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ATEN 4-Port HDBaseT output card

Output suitable for the ATEN VM 1600 matrix switcher

Technical specifications

Product type: HDBaseT controller card

Connection type: HDMI

Factory colour: Black

Weight: 1027 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1462418 ATEN VM8514-AT HDBaseT controller card

User & Safety Instructions

User & Safety Instructions 1462418 ATEN VM8514-AT HDBaseT controller card

Description

The VM 8514 4-Port HDBaseT output card provides a simple way to 4 HDMI sources connected HDBaseT transmitters at 4 to HDMI monitors connected HDBaseT receivers forward, in combination with the ATEN Modular matrix switch up to 16 input and output connections to forward 16 Hdbaset

If the VM 8514 HDBaseT output card together with the VE805 R HDBaseT receiver is being used, the seamless transition seamless video wall switch™ technology and functionality. The ATEN seamless transition Seamless switch™ technology offers video change in real-time with an integrated scaler, the different video resolutions on different monitors and video wall functions processed, making the configuration of up to 32 profiles for use defined layouts using the Point-n-click Web GUI.

This text is machine translated.

Features

Compatible with the VM 1600 and can be used with other modular I/O cards for optimum flexibility can be mixed
Bi-directional RS-232 channel allows you to connect to serial terminals or serial devices, for example, touch screens and barcode reader
HDBaseT connectivity - extends 4 HDBaseT connections up to 100 meters via a single Cat 5e/6 cable
HDBaseT anti-jamming-resistant to signal disturbances during transfer of video through HDBaseT technology
Connected with VE805 R:
Seamless transition Seamless switch™ offers change in almost real-time, continuous video streams, real-time change and stable signal transmissions
Video Wall offers configurable video wall profiles for custom layouts vua point-n-click Web GUI
Bi-directional IR channel IR transmission per direction is processed simultaneously
Hot-swap design for easy integration of I/O boards
