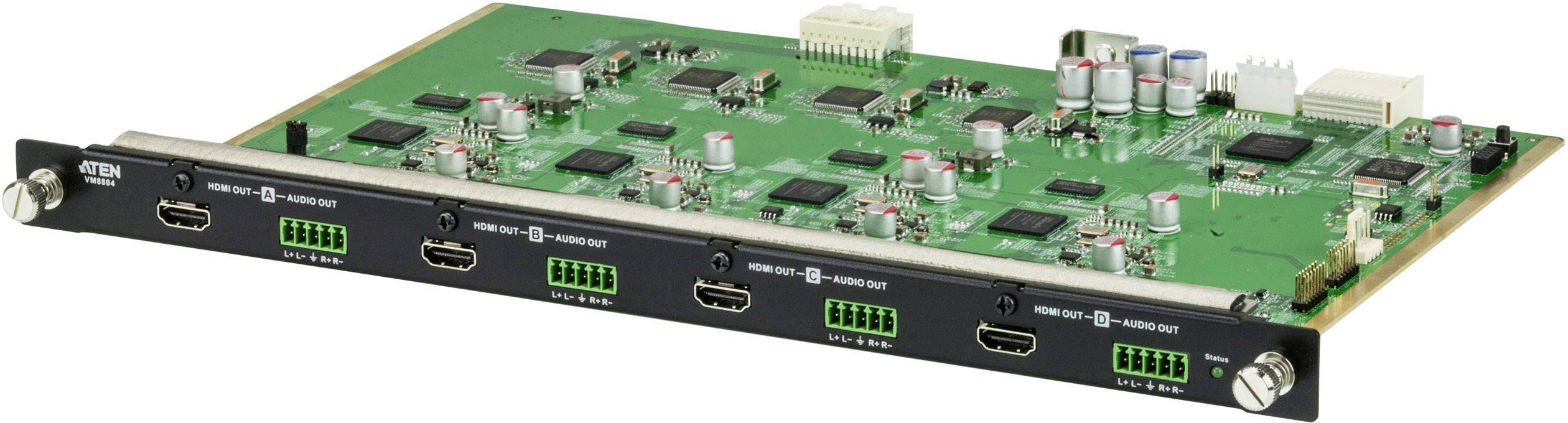

ATEN VM8804-AT HDMI controller card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ATEN 4-Port HDMI output
- Output suitable for the ATEN VM 1600 matrix switcher
Technical specifications
- Product type
HDMI controller card
- Connection type
HDMI
- Type A
HDMI plug
- Type B
HDMI plug
- Factory colour
Black
- Weight
941 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1462414 ATEN VM8804-AT HDMI controller card
User & Safety Instructions
User & Safety Instructions 1462414 ATEN VM8804-AT HDMI controller card
Description

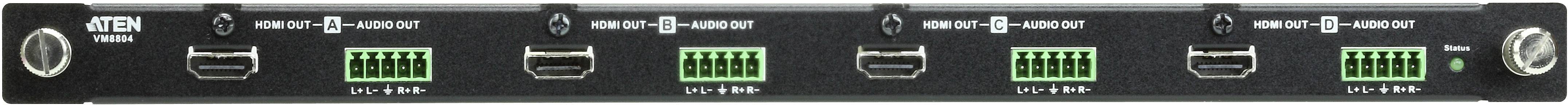

The VM 8804 4-Port HDMI output card offers a simple possibility to conduct of 4 Audio/video sources to 4 displays, if you in combination with ATENs Modular matrix switch is used.
The VM 8804 supports Seamless switch technology, the video change in real-time, an integrated scaler for processing of different video resolutions, and EDID experts technology for a fast and fluid change between displays what you the perfect display experience.™ The VM 8804 also supports HDMI audio, the extracted and stereo audio, which can be integrated.
This text is machine translated.
The VM 8804 supports Seamless switch technology, the video change in real-time, an integrated scaler for processing of different video resolutions, and EDID experts technology for a fast and fluid change between displays what you the perfect display experience.™ The VM 8804 also supports HDMI audio, the extracted and stereo audio, which can be integrated.
This text is machine translated.
Features
- Excellent video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep Color); HDCP 1.4 compatible
- Seamless switch™ offers fluent video streams, real-time change and stable signal transmissions*
- Integrated scaler on each output in support of the scaling function for different video resolutions
- Consumer Electronics Control (CEC) support
- EDID Expert - selects optimum EDID settings for a liquid start and display with the highest quality
- Integrated EDID wizard provides an easy way for customized EDID settings
- Hot-swap design for easy integration of I/O boards
- Audio-enabled, HDMI audio can be integrated extracted and stereo audio
Hints
If Seamless switch™ is enabled, the video output no 3D, Deep Color or interlaced (i.e. 1080i) resolutions. If you want to make these functions available, you must disable™ Seamless switch
