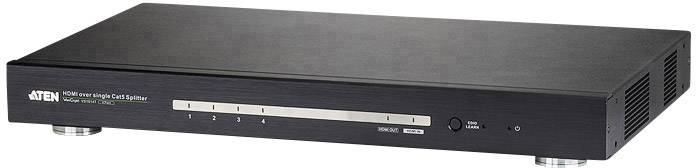

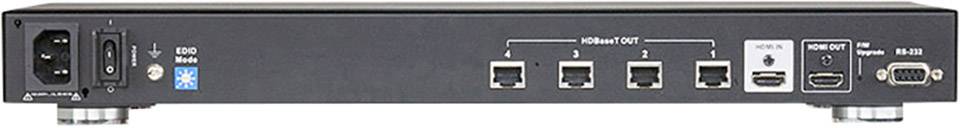

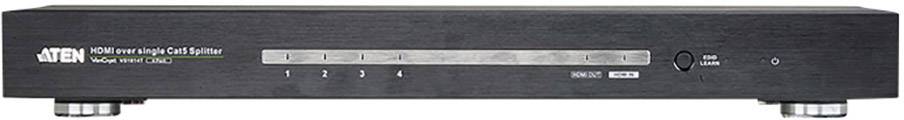

ATEN VS1814T-AT-G HDMI/HDBaseT Lite splitter 4096 x 2160 p Black
EAN:
Part number:
Item no:
Datasheet (PDF)
ATEN VS1814T VIDEO SPLITTER HDMI
Highlights & Details
- An HDMI input is distributed to 4 HDMI outputs via Cat. 5e network cable
- Extends the transmission path up to 100 m.
- Implements HDBaseT technology, and uses only one Cat. 5 cable to connect the transmitter and receiver units.
- Supports resolutions up to Ultra HD 4kx2k and 1080p Full HD
Technical specifications
- Product type
HDMI/HDBaseT Lite splitter
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
4 x
- Interfaces (output)
RJ45
HDMI™
- Resolution (max.)
4096 x 2160 p
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
3.47 kg
- Width
43.24 cm
- Height
4.4 cm
- Depth
26.11 cm
- Dim
(W x H x D) 43.24 x 4.4 x 26.11 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879874 ATEN VS1814T-AT-G HDMI/HDBaseT Lite splitter 4096 x 2160 p Black
User & Safety Instructions
User & Safety Instructions 1879874 ATEN VS1814T-AT-G HDMI/HDBaseT Lite splitter 4096 x 2160 p Black
Description
The VS1814T HDMI over single cat 5 splitter offers a fast and efficient possibility of changing high-resolution video from an input source to 4 displays. When using the recommended HDBaseT receivers*, the VS1814T can be a complete solution ideal for any professional installation where HDMI multimedia content must be sent over several destinations up to 100m away from the source.
The solution uses HDBaseT Extension technology to connect the VS1814T receiver units via a single cat 6 cable for transmitting HDMI multimedia content in real time. It supports up to 4k2k resolution and offers an EDID selection method to ensure a constant and reliable EDID data relay for the HDMI source device in order to optimize the video resolution efficiently.
The VS1814T solution is perfect for a range of applications:
· Digital signature in store or at trade fairs
· Sending information at public locations (e.g. news, stations, flight and train schedules and information)
· Sports events
· Cinema and lecture halls
· Classrooms and classrooms
This text is machine translated.
The solution uses HDBaseT Extension technology to connect the VS1814T receiver units via a single cat 6 cable for transmitting HDMI multimedia content in real time. It supports up to 4k2k resolution and offers an EDID selection method to ensure a constant and reliable EDID data relay for the HDMI source device in order to optimize the video resolution efficiently.
The VS1814T solution is perfect for a range of applications:
· Digital signature in store or at trade fairs
· Sending information at public locations (e.g. news, stations, flight and train schedules and information)
· Sports events
· Cinema and lecture halls
· Classrooms and classrooms
This text is machine translated.
Scope of delivery
- 1 x VS1814T 4-port HDMI-Over-Single-Cat 5 splitter
- 1 x LIN2-418K-E12G power cable
- 1 x KC06-0012-B05G mounting kit
- 1 x user manual
Hints
* Recommended compatible receiver units: VE812R HDMI Over Single cat 5 receiver
