ATEN VS481B-AT-G HDMI switch 4096 x 2160 p
EAN:
Part number:
Item no:
Datasheet (PDF)
ATEN VS481B HDMI SWITCH
Highlights & Details
- Enables the connection of up to four HDMI A/V sources To the HDMI screen
- Quick and easy change between HDMI sources via buttons on the front, RS-232 or IR remote control
- Supports 300MHz bandwidth for ultra-high resolution 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP compatible
Technical specifications
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
4 x
- No. of outputs
1 x
- Switch function
Key
- Resolution (max.)
4096 x 2160 p
- Factory colour
Silver
- Power supply (LOV)
via PSU
- Width
200 mm
- Height
25 mm
- Depth
82.5 mm
- Weight
480 g
- Supported audio file formats
DTS
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879756 ATEN VS481B-AT-G HDMI switch 4096 x 2160 p
User & Safety Instructions
User & Safety Instructions 1879756 ATEN VS481B-AT-G HDMI switch 4096 x 2160 p
Description

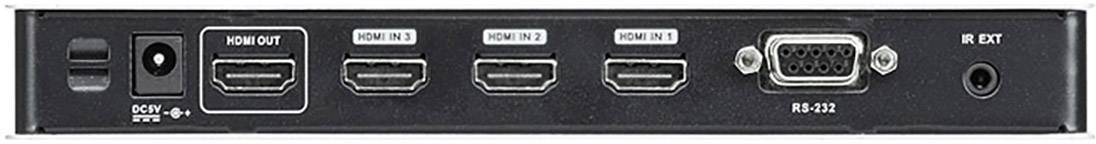

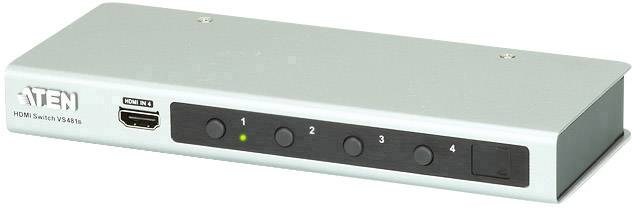

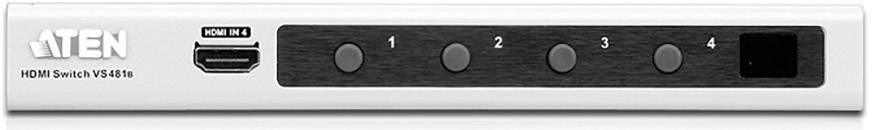

The VS481B 4-port HDMI switch enables you to quickly connect 4 HDMI sources to your HDMI screen and quickly switch via buttons on the front, RS-232 or IR remote control. The LEDs on the front panel indicate the source device selected for display at a glance.
The VS481B supports Ultra HD 4Kx2K, the latest resolution for high-resolution screens; automatic change modes for automatic connection selection; direct change for a smooth video transition between HDMI ports with improved efficiency; And has an integrated bidirectional serial RS-232 port, which allows the switch to be controlled via a high-end controller, PC and/or home automation/home theater software package.
This text is machine translated.
The VS481B supports Ultra HD 4Kx2K, the latest resolution for high-resolution screens; automatic change modes for automatic connection selection; direct change for a smooth video transition between HDMI ports with improved efficiency; And has an integrated bidirectional serial RS-232 port, which allows the switch to be controlled via a high-end controller, PC and/or home automation/home theater software package.
This text is machine translated.
Scope of delivery
- 1x VS481B 4-port HDMI switch
- 1x 2L-7D02H HDMI cable
- 1x 2XRT-0101G IR remote control
- 1x 0AD6-1005-10AG power supply
- 1x User Guide
