ATEN VS481C 4+1 ports HDMI switch PC-controlled, + remote control 4096 x 2160 p
EAN:
Part number:
Item no:

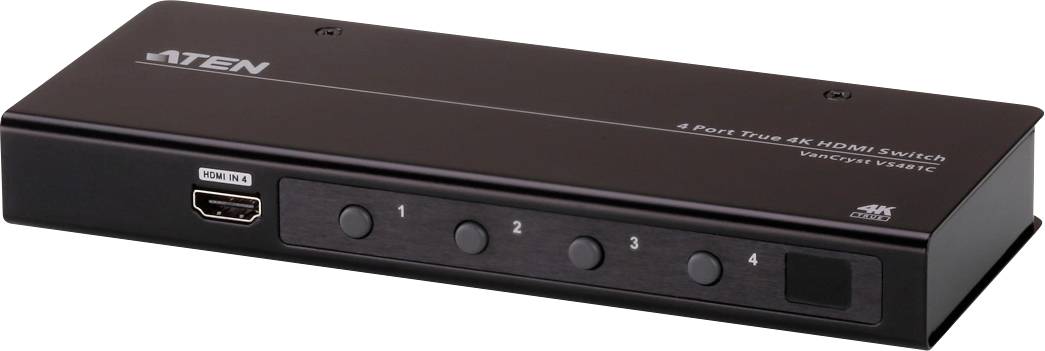

Aten VS481C HDMI Switch with 4 Ports True 4K
Technical specifications
- Product type
HDMI switch
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
4 x
- No. of outputs
1 x
- Switch function
Automatic
- Resolution (max.)
4096 x 2160 p
- Distributor/switch features
PC-controlled
+ remote control
- Factory colour
Black
- Power supply (LOV)
via PSU
- Width
200 mm
- Height
25 mm
- Depth
82 mm
- Weight
470 g
- Port
4+1 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342326 ATEN VS481C 4+1 ports HDMI switch PC-controlled, + remote control 4096 x 2160 p
Description
4-Port True 4K HDMI Switch
Aten VS481C is designed for applications that require routing from 4 sources to a compatible display device.
It enables the reliable transmission with video resolutions up to True 4K (4096 x 2160 at 60 Hz 4:4:4), data rates up to
18 Gbps, 3D, Deep Color up to 12 bits and lossless HD audio formats. The integrated functions include automatic change modes for automatic connection selection, direct change for a smooth video transition between HDMI ports, bidirectional RS-232 and IR for remote control of devices.
Aten VS481C is designed to meet today's demands for true 4K signal transmission and user-oriented design. It is a powerful solution for a wide range of environments including home theater, conference rooms, trade shows and shopping centers.
This text is machine translated.
Aten VS481C is designed for applications that require routing from 4 sources to a compatible display device.
It enables the reliable transmission with video resolutions up to True 4K (4096 x 2160 at 60 Hz 4:4:4), data rates up to
18 Gbps, 3D, Deep Color up to 12 bits and lossless HD audio formats. The integrated functions include automatic change modes for automatic connection selection, direct change for a smooth video transition between HDMI ports, bidirectional RS-232 and IR for remote control of devices.
Aten VS481C is designed to meet today's demands for true 4K signal transmission and user-oriented design. It is a powerful solution for a wide range of environments including home theater, conference rooms, trade shows and shopping centers.
This text is machine translated.
Features
- Enables the connection of up to four HDMI A/V sources to the HDMI screen
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compatible
- Superior video quality - true 4K resolutions of 4K x 2k at 60 Hz (4:4:4)
- Supports IR extension
- Integrated bi-directional, serial RS-232 port for high-quality control panel
- Automatic changing modes for automatic connection selection
- Direct change between HDMI input sources
- LED display of the status of the source device
- Plug-and-Play
