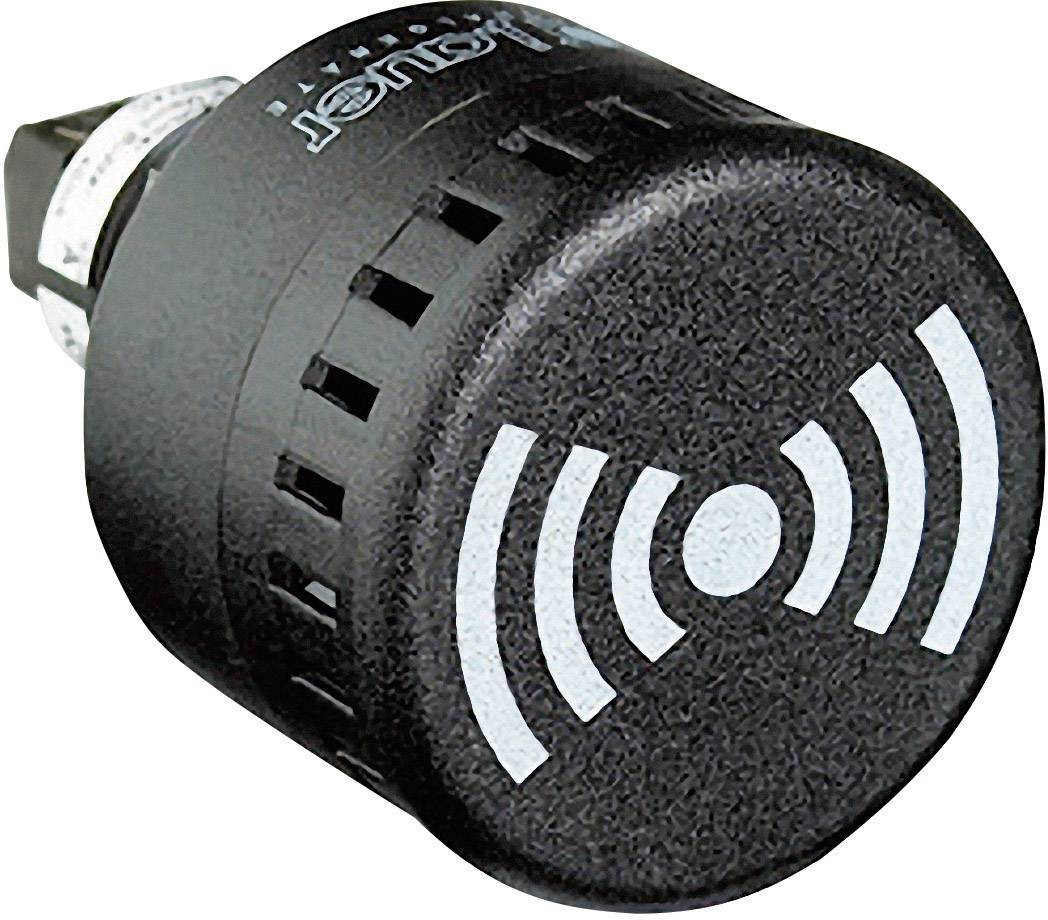

Auer Signalgeräte Buzzer 813500405 ESM Non-stop acoustic signal, Acoustic pulse 12 V DC, 12 V AC, 24 V DC, 24 V AC 65 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 78.14
-12 %
€ 68.90
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Buzzer
- Series
ESM
- Operating voltage
12 V DC
12 V AC
24 V DC
24 V AC
- Signal type
Non-stop acoustic signal
Acoustic pulse
- (Ø)
45 mm
IP65
- Dim
(Ø) 45 mm
- Case colour
Black
- Material
Polycarbonate (PC)
- Type
ESM
- Noise emission (max.)
65 dB
- Pitch
3300 Hz
- Max. temperature
+80 °C
- Min. temperature
-25 °C
Documents & Downloads
Datasheet
Datasheet 516267 Auer Signalgeräte Buzzer 813500405 ESM Non-stop acoustic signal, Acoustic pulse 12 V DC, 12 V AC, 24 V DC, 24 V AC 65 dB
User & Safety Instructions
User & Safety Instructions 516267 Auer Signalgeräte Buzzer 813500405 ESM Non-stop acoustic signal, Acoustic pulse 12 V DC, 12 V AC, 24 V DC, 24 V AC 65 dB
Conformity certificate
Conformity certificate 516267 Auer Signalgeräte Buzzer 813500405 ESM Non-stop acoustic signal, Acoustic pulse 12 V DC, 12 V AC, 24 V DC, 24 V AC 65 dB
Description
M22 built-in buzzer with a large voltage range (8-24 V) · For 22.5 mm fault/warning signal devices. · Continuous and pulsed sound via terminal can be controlled · Continuously adjustable volume also the built-in condition · For universal applications · Sealed Electronics · Low power consumption · Removable plug-in clamp for easy electrical connection / Mounting · Protection rating: IP 65 · SPS-compatible.
