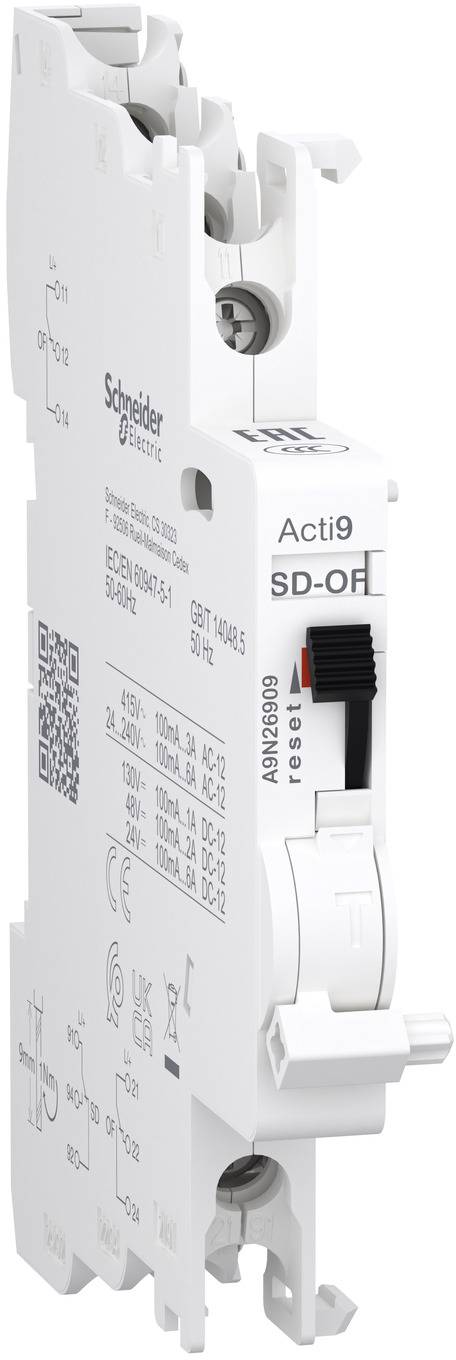

Auxiliary contactor 1.5 mm² 2 change-overs Schneider Electric A9N26909
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
Number of pins
4
Contact type
2 change-overs
Cross section
1.5 mm²
Dim
(W x H x D) 9 x 90 x 68 mm
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
14-day return policy included
Technical specifications
- Number of error signal switches: 1
- Number of contacts as N/O contacts: 0
- Number of contacts as changer: 2
- Number of contacts as NC contacts: 0
- Rated switching current 0.1 A
- Rated voltage: 240 V
- Width in division units: 0.5
- Function: Auxiliary switch/fault signal switch
- Suitable for max. Main contact unit number (total): 4
- FI/LS and circuit breaker
- With auto-test for fault current function: No.
- Voltage type AC/DC
- Product type
Auxiliary contactor
- Contact type
2 change-overs
- Cross section
1.5 mm²
- Number of pins
4
- Dim
(W x H x D) 9 x 90 x 68 mm
- No. of partitions
0.5
- Width
9 mm
- Height
90 mm
- Depth
68 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3754606 Auxiliary contactor 1.5 mm² 2 change-overs Schneider Electric A9N26909
User & Safety Instructions
User & Safety Instructions 3754606 Auxiliary contactor 1.5 mm² 2 change-overs Schneider Electric A9N26909
Description
This electric Acti9 auxiliary is a modular double OC or fault contact. The 2 contacts (2 NO/NC) can report the signaling information of the corresponding device. In the AC network, the rated current is 6A at 24VAC to 240VAC and 3A at 415VAC with an operating frequency of 50Hz to 60Hz. In the DC network, the rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It is intended for new or renovated installations in small businesses and buildings. This OC contact is compatible with Acti9 products such as C120, C60H-DC, SW60-DC, C60PV-DC and XC60. The OF and OF or OF and SD is used for either the device short name or the compatibility code. The mechanical display is provided in the product for local signaling. It has a screw clamp connection on top and bottom. The connection permits rigid copper cables with a cable cross-section of 0.5 mm² up to 2.5 mm². It has a screw clamp connection on top and bottom. The connection permits flexible copper cable (2 cables) with a cable cross-section of 1.5 mm². It has a screw clamp connection on top and bottom. The connection enables the flexible use of wire-end sleeves copper cables (2 cables) with a cable cross-section of 1.5 mm². The rated insulation voltage UI is up to 500 V. The rated surge voltage Uimp is 4kV. It can be mounted on a DIN rail for modular installation. The width in the 9 mm grid is 1. The dimensions are (W) 9mm x (H) 90mm x (D) 68mm. The product color is white. The product weight is 38g. The degree of contamination is 3. The degree of tropicalization is treatment 2. The stripping length is 9 mm. The tightening torque of the connection is 1N.m (top and bottom) for the screwdriver type PZ1. The IP protection class is IP20. The operating temperature is between -25°C and +50°C. The storage temperature is between -40°C and +85°C. This product complies with the standards EN/IEC 60947-5-1 and GB/T 14048.5. It has EAC and CCC seals and is provided with CE and UKCA certificates.
