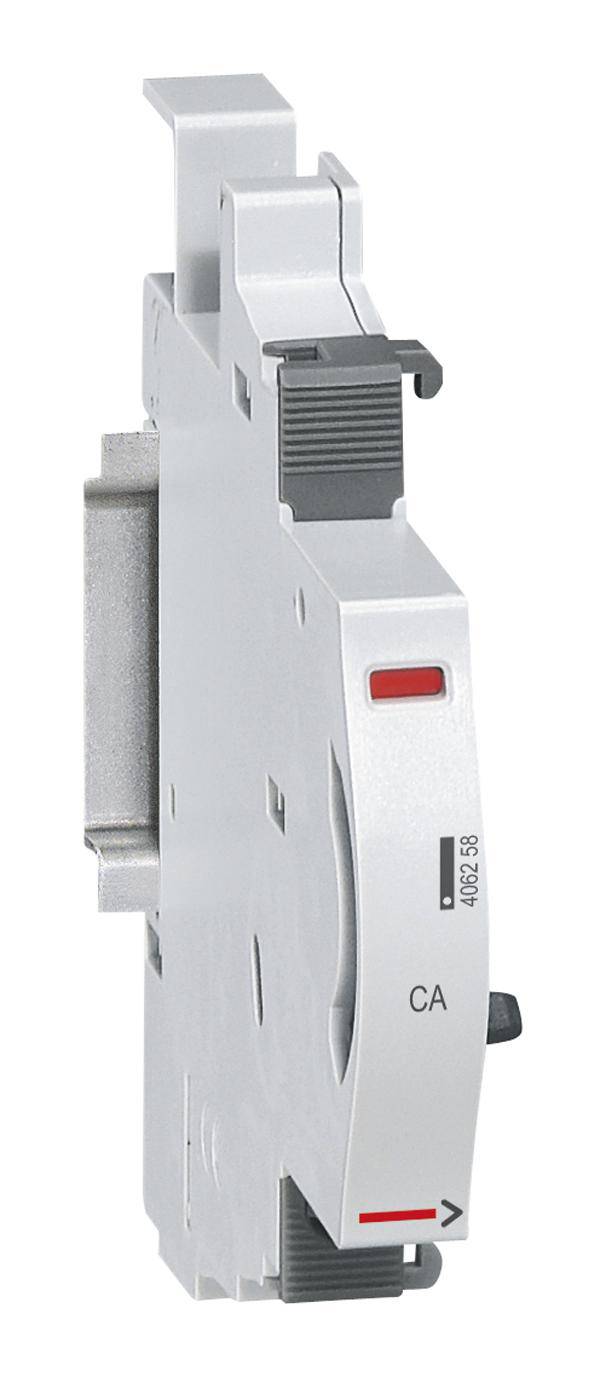

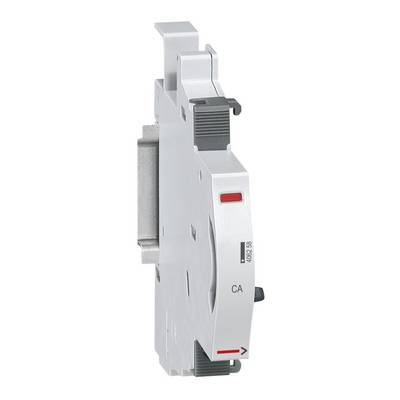

Auxiliary switch Multicolour 6 A 240 V Legrand 406258
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Nominal voltage
240 V
Nominal current - rounded value
6 A
Factory colour
Multicolour
Dim
(W x H x D) 26.0000 x 86.0000 x 98.0000 mm
Datasheet (PDF)
Technical specifications
- Mounting type: Top hat profile rail
- Suitable for max. number of poles of the main contact unit (total): 4
- Suitable for max. current of the main contact unit: 125 A.
- Product type
Auxiliary switch
- Nominal voltage
240 V
- Factory colour
Multicolour
- Dim
(W x H x D) 26.0000 x 86.0000 x 98.0000 mm
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Width
26.0000 mm
- Height
86.0000 mm
- Depth
98.0000 mm
- Weight
0.50
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2156107 Auxiliary switch Multicolour 6 A 240 V Legrand 406258
User & Safety Instructions
User & Safety Instructions 2156107 Auxiliary switch Multicolour 6 A 240 V Legrand 406258
Description
Auxiliary switch, reports the switching state with manual and error triggering, for LS-switch, FI-/ FILS-protection switch of the Legrand TX3 and DX3 series. Tool-free assembly by simply linking to the left side of the main unit, maximum of 3 auxiliary devices or 2 auxiliary devices + 1 control device per main unit. 1 changeover contact, 6 A 240 V AC, device width 0.5 division units
