AXAGON ADE-AR Network adapter RJ45, USB A (USB 3.2 1st gen)
EAN:
Part number:
Item no:
Highlights & Details

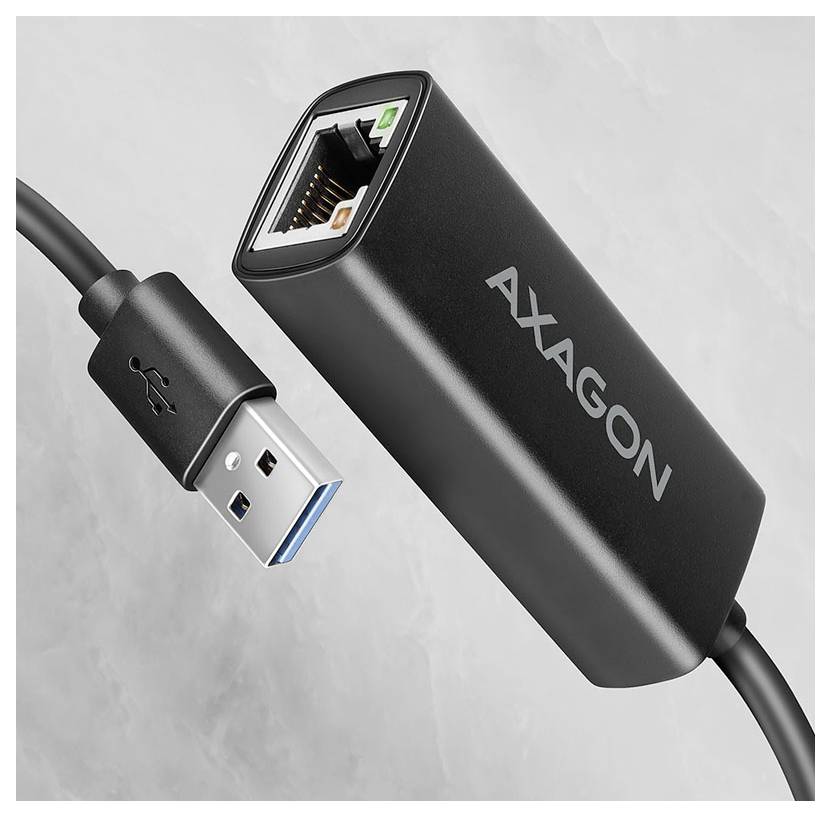

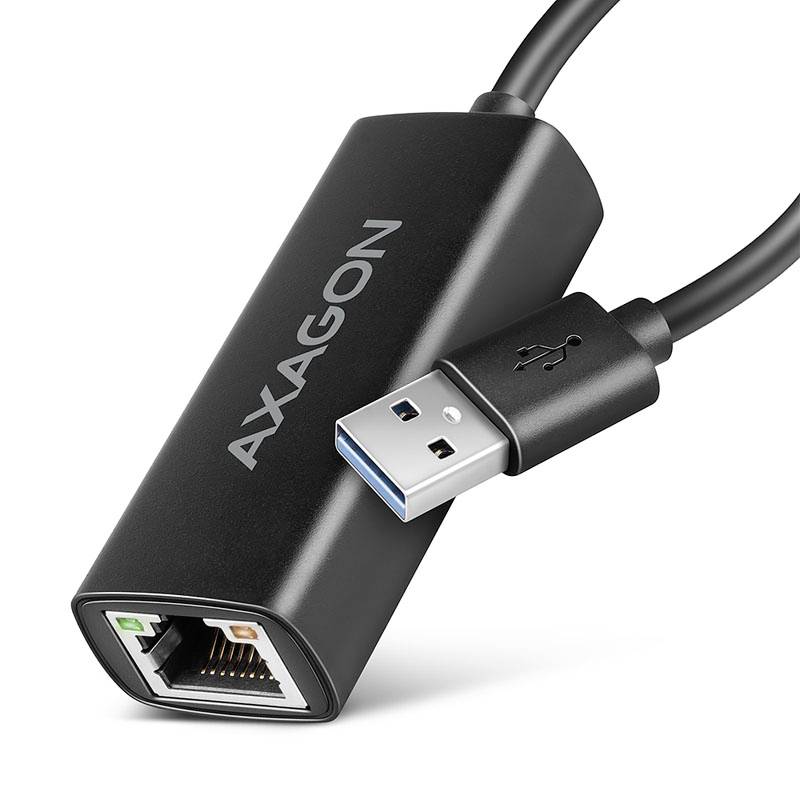

AXAGON ADE-AR USB-A 3.2 1st Gen 1 - Gigabit Ethernet 10/100/1000 Adapter
- Ethernet adapter from AXAGON
- USB-A to Gigabit Ethernet
- Compact
- With cable extension
Technical specifications
- Dimensions: 58 x 24 x 16 mm (W x H x D)
- Weight: 22 g (incl. Cable)
- Input: USB 5 Gbps (USB 3.2 Gen 1 / USB 3.0); Backward compatible with USB 480 Mbps (USB 2.0) and USB 1.1; connection to a computer via USB 2.0 Type A male plug

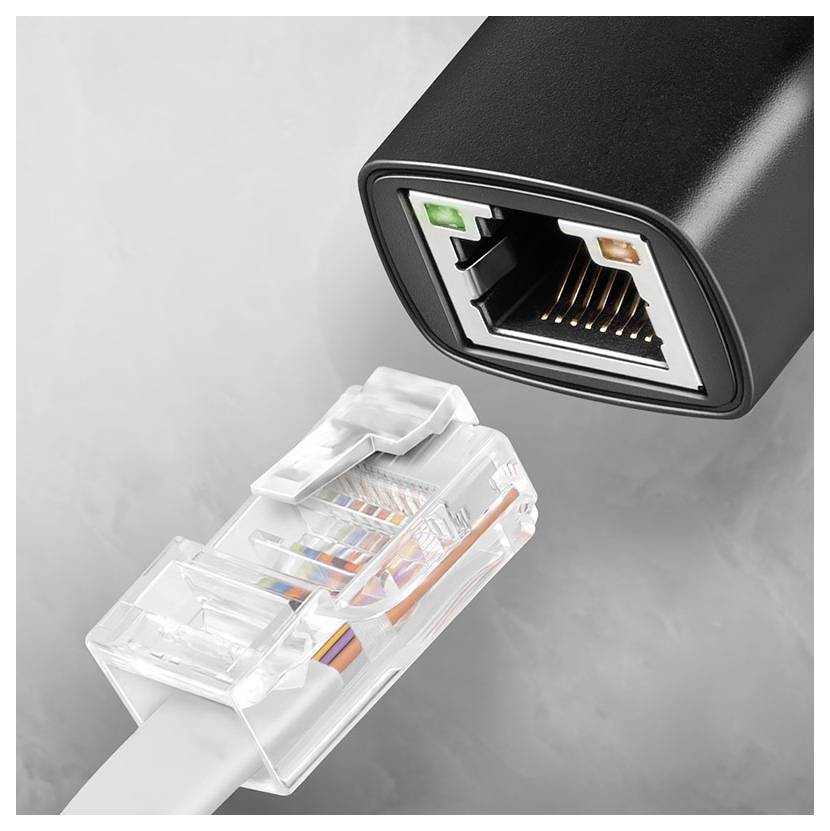

- Output: Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection; Supported transfer speeds of Ethernet interface 10/100/1000 MB/s; Supported specifications IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
- Chip set: Realtek RTL8153
- Product type
Network adapter
- Interfaces
RJ45
USB A (USB 3.2 1st gen)
- No. of Gigabit LANs
1 x
- No. of USB type A 3.0 ports
1 x
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742244 AXAGON ADE-AR Network adapter RJ45, USB A (USB 3.2 1st gen)
Description
AXAGON ADE-AR - USB-A zu Gigabit Ethernet Adapter

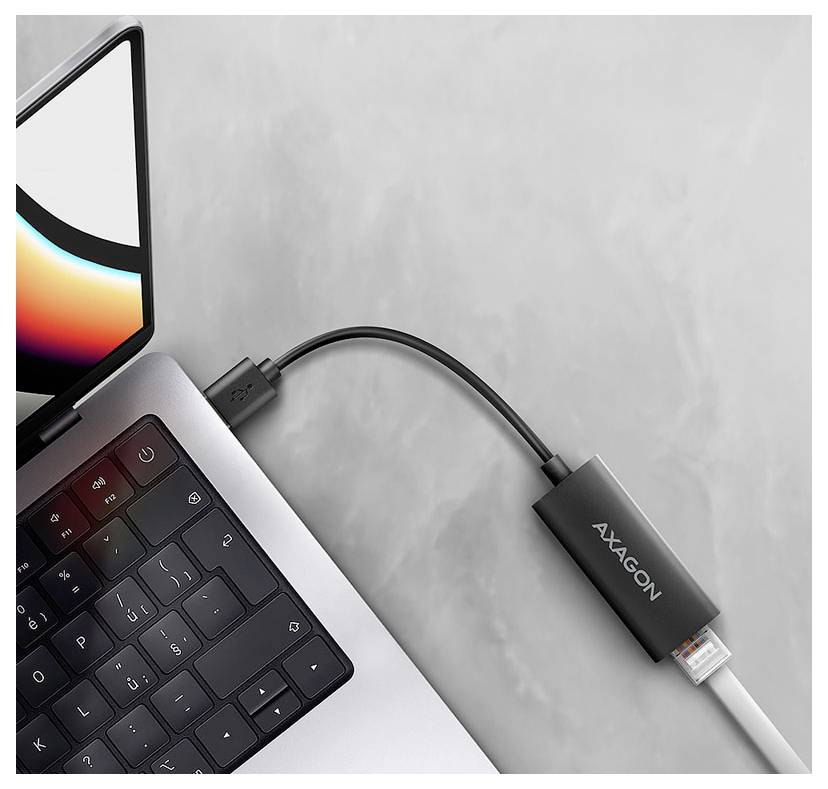

The external network card AXAGON ADE-AR converts the USB-A 3.2 Gen 1 port simply in a Gigabit Ethernet port. It enables transfer speeds of 10/100/1000 Mbit/s and provides stable network connections to computers without RJ-45 connection. In addition, it can add additional network cards or replace non-functioning ports.
The LAN adapter provides IPv4/IPv6 checksums, crossover detection and auto-correction, TCP large send offload, VLAN support, and advanced Power management features.

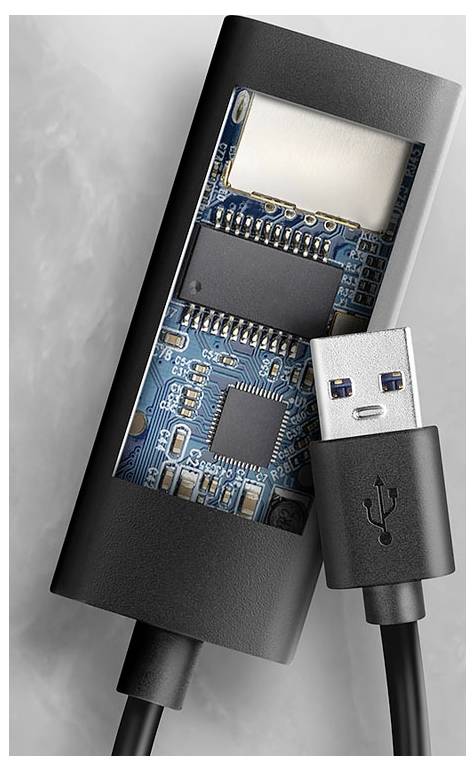

Thanks to its compact aluminum casing the adapter offers protection, heat dissipation and Ideal is suitable for laptops and mobile devices.
This text is machine translated.
Features
- Support of IPv4/IPv6 packet checksum offload engine (COE), TCP large send offload V1 and V2, IEEE 802.1p layer 2 priority encoding & decoding, IEEE 802.1Q VLAN tagging, IEEE 802.3az EEE (energy efficient Ethernet), Jumbo frame, full duplex transmissions with IEEE 802.3x flow control and half duplex transmissions with back-pressure flow control, auto MDI/MDIX, Hardware-based cyclic redundancy check (CRC), pair swap/polarity/skew correction
- Support for ACPI, ARP & NS Power management offload, Microsoft Always On Always Connected (AOAC), Intel Converged Platform Power Management (CPPM), Link Power Management (LPM), operating system-directed Power Management (OSPM)
- Full plug-and-play and hot-plug support
- Two LEDs to indicate network activity and connection to the network
System requirements
- Windows, MacOS, Linux
