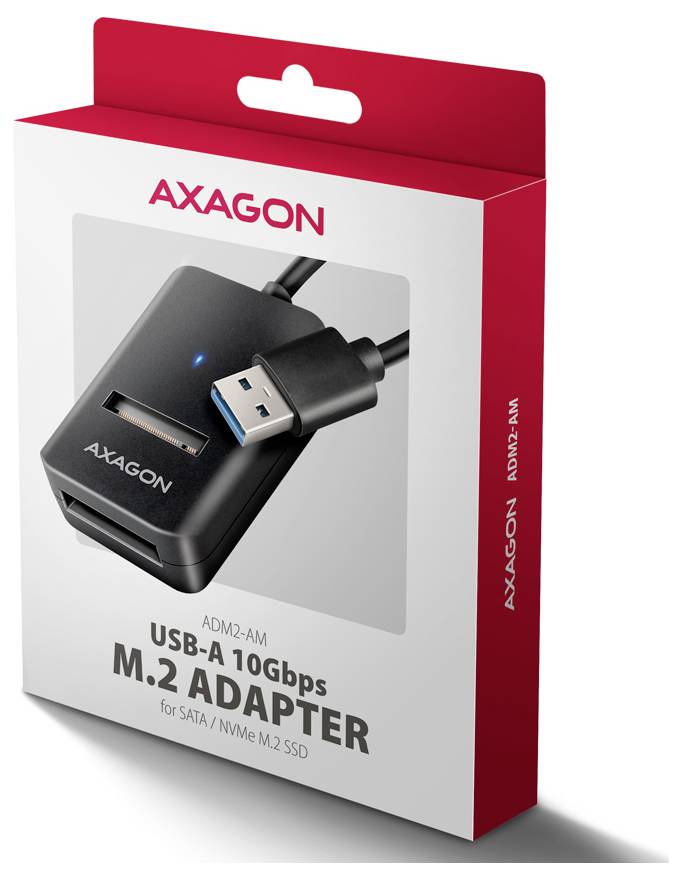

AXAGON ADM2-AM USB A (USB 3.2 2nd gen) M.2 1 port M.2 SSD adapter
EAN:
Part number:
Item no:
Axagon ADM2-AM USB-A 10Gbps-M.2 NVMe SSD & SATA adapter
Highlights & Details
- USB-A M.2 SSD ADAPTER
- Supports NVMe SSD & SATA
- 10 cm cable length
- Plug-and-Play
- Connects to USB A 3.1
Technical specifications
- Product type
M.2 SSD adapter
- Connector (PC)
USB A (USB 3.2 2nd gen)
- Connector (HDD)
M.2
- Weight
23 g
- Width
55 mm
- Height
12 mm
- Depth
37 mm
- No. of HDDs (max.)
1 x
- Port
1 port
- UKCA
not relevant
- USB connectivity
yes
- UASP support
yes
- External power adapter
no
- NVMe
yes
- Integrated USB cable
yes
- Manual
yes
- S.M.A.R.T. support
yes
- Package weight
41 g
- Plug and Play
yes
- TRIM support
yes
- Number of storage drives supported
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3746441 AXAGON ADM2-AM USB A (USB 3.2 2nd gen) M.2 1 port M.2 SSD adapter
Description
Compact AXAGON ADM2-AM M.2 adapter with USB 10Gbps interface for easy use of M.2 NVMe or SATA SSDs. The reliable connection to the computer is made possible by a permanently connected USB A cable of 10 cm length.

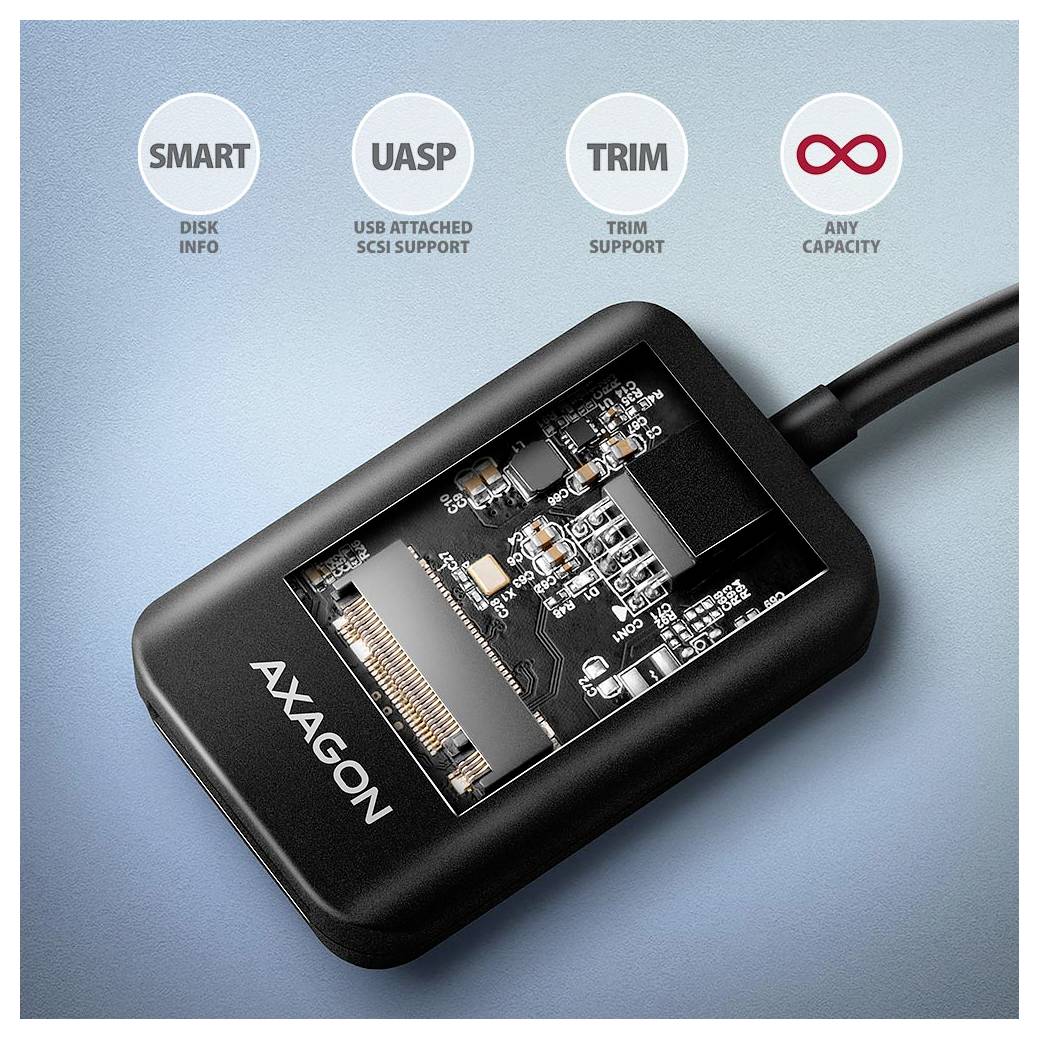

The USB 3.2 Gen 2 interface is a transfer speed of up to 10 GB/s. The second generation of fast USB interface allows you to enjoy the speed of modern M.2 SSD drives. The external M.2 adapter also supports other modern functions, e.g. UASP, TRIM and enables the reading of S.M.A.R.T. Information on how to monitor disk status. Standby support when idle.
Unique possibility to use both M.2 NVMe as well as SATA hard discs thanks to the new chipset. You don't have to think about which type of M.2 drive the adapter is designed for, it just reads all types. Another advantage of the adapter is the ability to insert the data carrier into the adapter slot very quickly. It is also easy to change the hard disks. The properties mentioned make the adapter a practical and useful tool for the frequent working with different types of discs. This makes it an ideal tool for testing hard disks, transferring, saving and restoring data etc.
Thanks to its small size it can be handy at all times. The adapter does not prevent the heat from being discharged from the hard-disk, WAS its life is extended and also prevents the slowdown of the hard-disk, the so-called "thermal throbbing". This USB-A-to-M.2 drive adapter can be used with computers and laptops as well as with mobile phones and tablets.
Input:
· USB 10Gbps (USB 3.2 1st Gen 2), USB-A male plug.
· Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4.
Supported devices:
· NMVE M.2 SSD hard disks.
· SATA M.2 SSD HARD DRIVES.
· Designed for M-Key or B+M-Key card formats,
· NGFF 75-pin M-Key slot for M.2-hard disks.
This text is machine translated.
The USB 3.2 Gen 2 interface is a transfer speed of up to 10 GB/s. The second generation of fast USB interface allows you to enjoy the speed of modern M.2 SSD drives. The external M.2 adapter also supports other modern functions, e.g. UASP, TRIM and enables the reading of S.M.A.R.T. Information on how to monitor disk status. Standby support when idle.
Unique possibility to use both M.2 NVMe as well as SATA hard discs thanks to the new chipset. You don't have to think about which type of M.2 drive the adapter is designed for, it just reads all types. Another advantage of the adapter is the ability to insert the data carrier into the adapter slot very quickly. It is also easy to change the hard disks. The properties mentioned make the adapter a practical and useful tool for the frequent working with different types of discs. This makes it an ideal tool for testing hard disks, transferring, saving and restoring data etc.
Thanks to its small size it can be handy at all times. The adapter does not prevent the heat from being discharged from the hard-disk, WAS its life is extended and also prevents the slowdown of the hard-disk, the so-called "thermal throbbing". This USB-A-to-M.2 drive adapter can be used with computers and laptops as well as with mobile phones and tablets.
Input:
· USB 10Gbps (USB 3.2 1st Gen 2), USB-A male plug.
· Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4.
Supported devices:
· NMVE M.2 SSD hard disks.
· SATA M.2 SSD HARD DRIVES.
· Designed for M-Key or B+M-Key card formats,
· NGFF 75-pin M-Key slot for M.2-hard disks.
This text is machine translated.
Features
- Supports transfer speeds 10,000 / 5,000 / 480 Mbit/s.

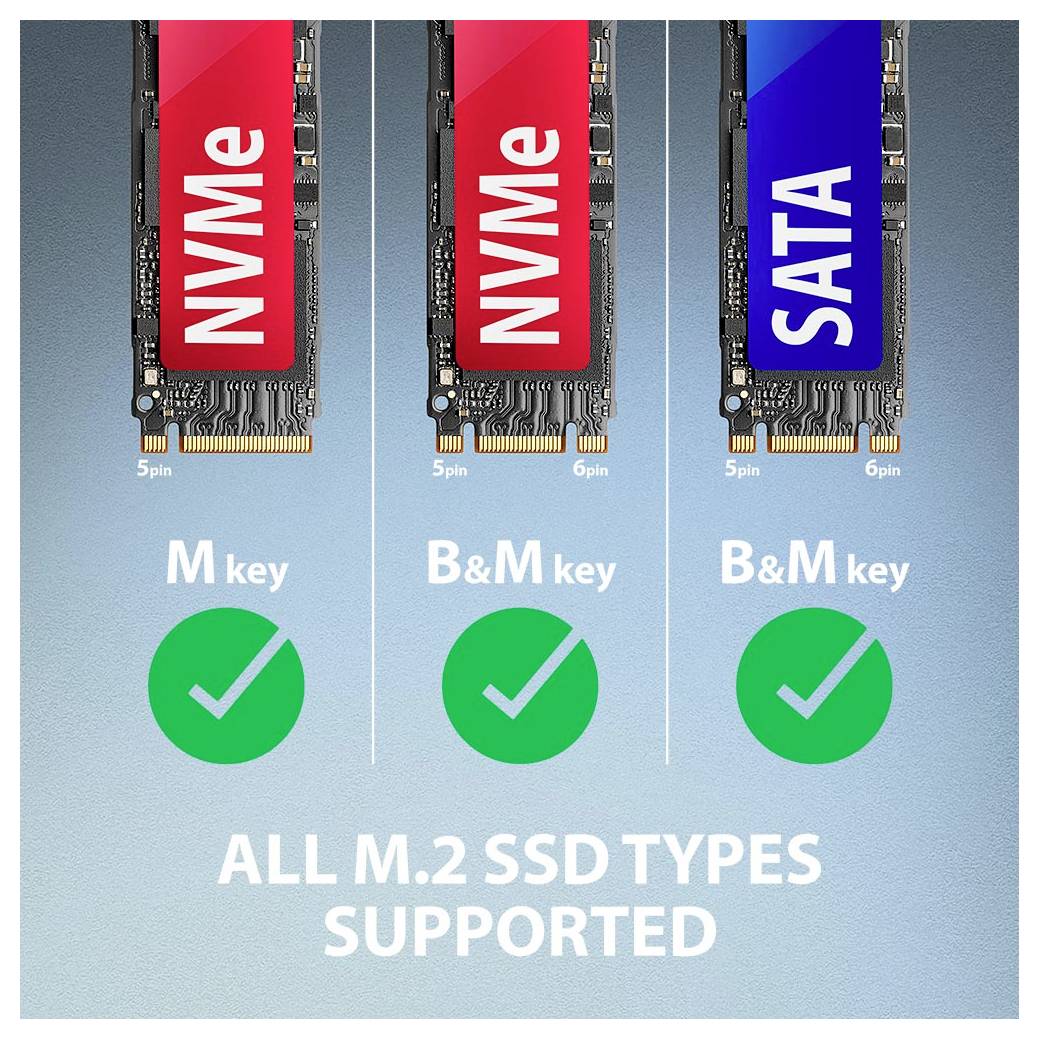

- Supports M-Key or B+M-Key NVMe (PCI-Express) and SATA (AHCI) M.2 SSD hard drives without limitation of maximum capacity.
- Support for M.2 drives - without length limitation.
- Support of single and double sided M.2 hard drives.
- Conforms to the specifications of PCI Express Base Specification Revision 3.1a.
- Complies with NVM Express 1.3 specification.
- Corresponds to the specifications for Serial ATA 3.2 (SATA/600), transfer speeds of up to 6 GB/s (600 MB/s).
- Conforms to the USB Mass Storage Class specification.
- The total permeability / transfer speed of the adapter is caused by the USB interface (theoretical 10 Gbit/s).
- The actual permeability / transfer speed of the adapter 1 is given by the limits of the USB 3.2 Gen 1000 GB 2 interface.
- Support of BOT (bulk-only transport).
- USB Attached SCSI (UASP) support for faster data transfer in Windows 8 and later.
- Support of the TRIM-function reduces the gradual loss of power of SSDs over time.
- Support of S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) systems for monitoring disk status.
- Support of booting from SSD in the external box.
- The device can be connected during operation thanks to the support of Hot Plug.
- Full plug-and-play support.
- The power supply via the USB-bus with up to 900mA of one USB-port is completely sufficient in all cases.

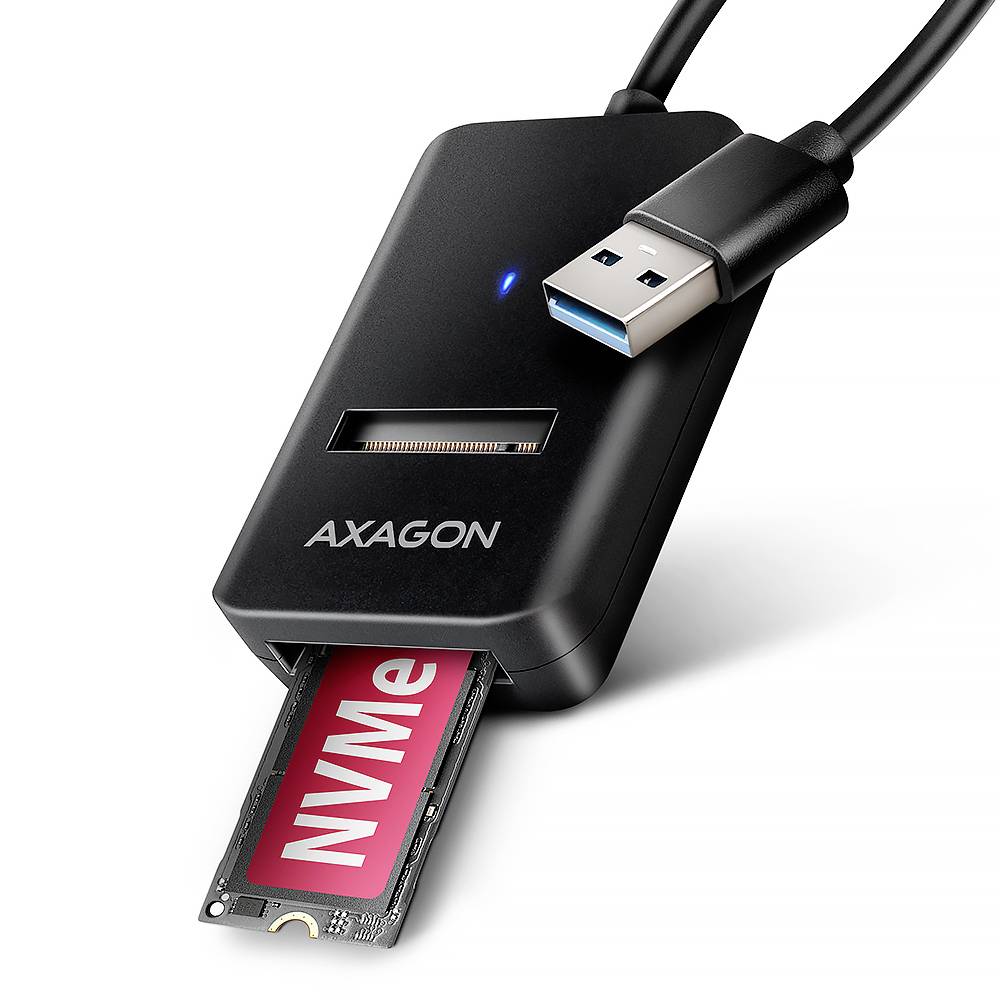

- A discreet blue LED indicates the connection to a computer's USB port (lights permanently) and data transfer (flashes).

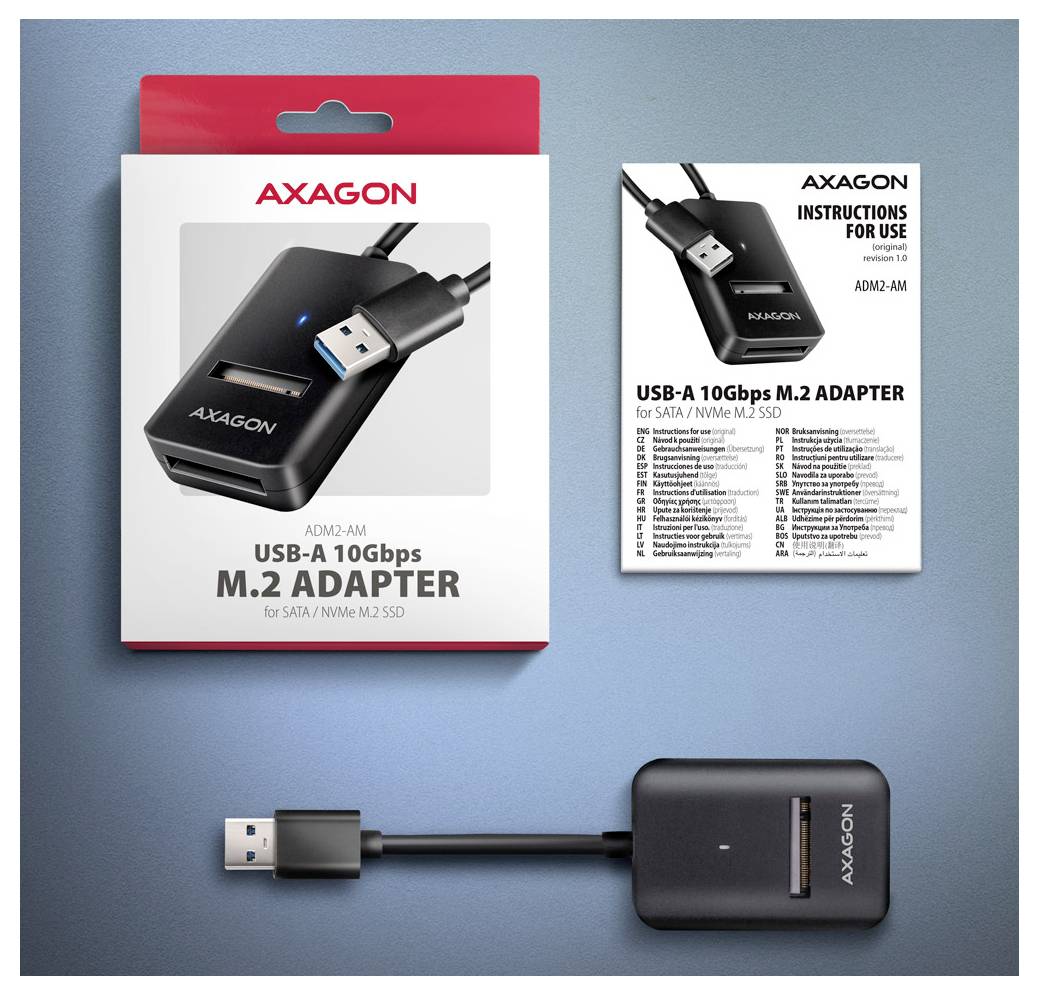

Scope of delivery
- M.2 Adapter
- User manual
System requirements
- Windows 7 / 8.1 / 10 / 11 and later
- MacOS, iPadOS, iOS, Linux, Chrome OS and Android
