Name: AXAGON PCEM2-ND 2 ports M.2 controller PCIe x8 Compatible with: 2230, 2242, 2260, 2280, 22110 incl. slot panel
Brand: AXAGON
SKU: 3746360

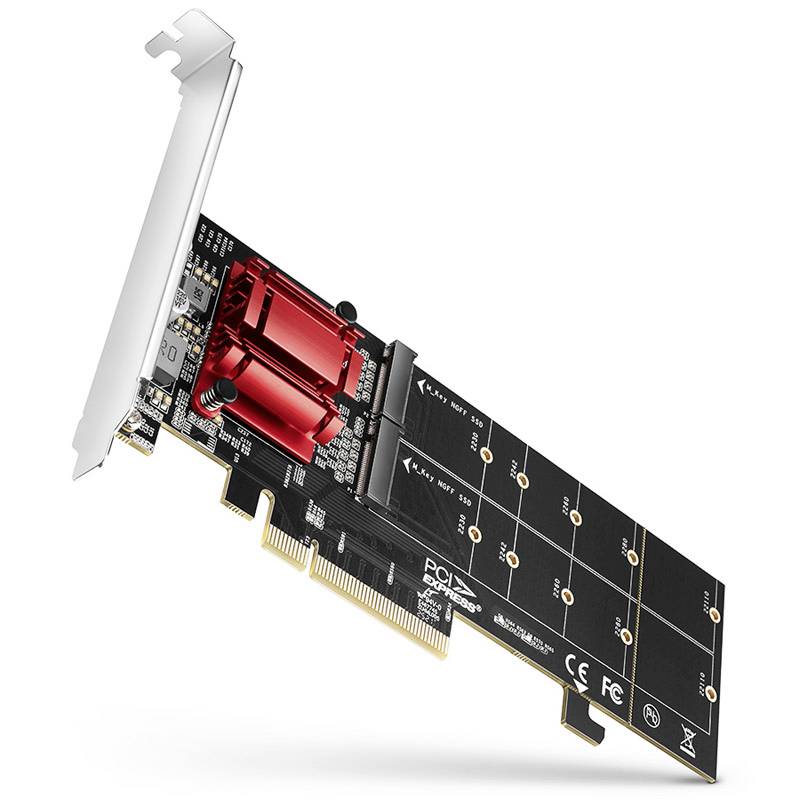

Internal PCIe expansion card with a silver bracket and black circuit board, featuring a red heatsink and mounting holes for computer hardware.

Dual NVMe PCIe expansion card with two M.2 SSDs and a silver bracket for desktop installation.

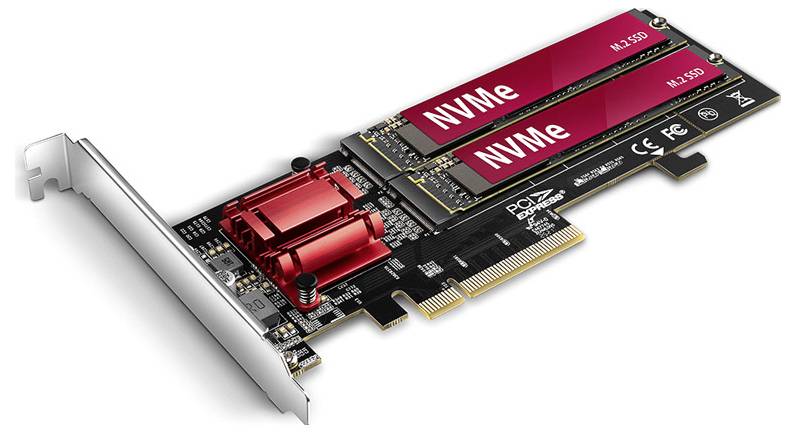

PCIe NVMe SSD expansion card with two red M.2 drives and a metal bracket, shown on a white background.

PCI Express expansion card with a red heatsink and metal bracket, shown on a white background.<br>

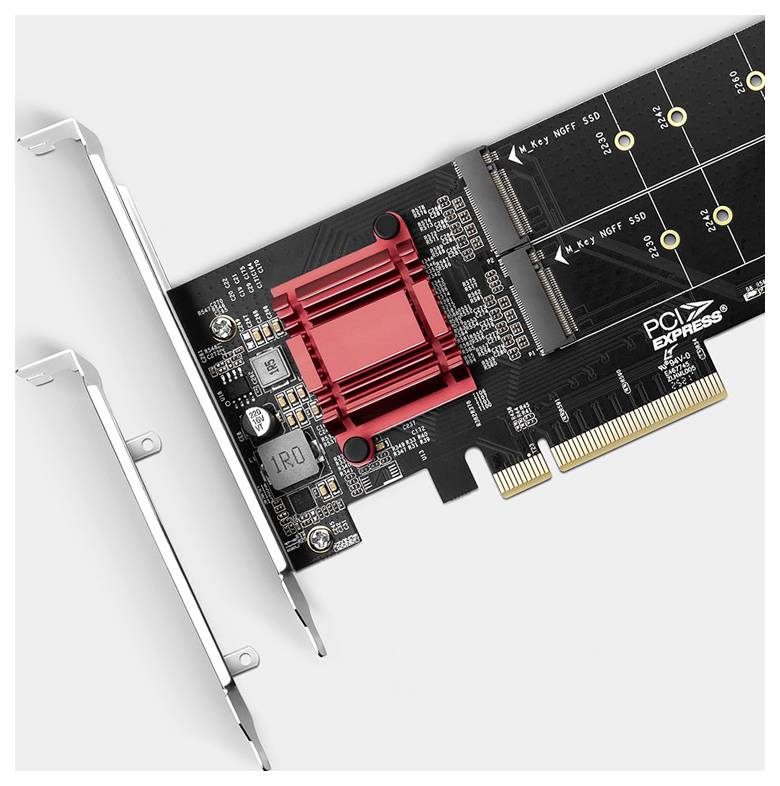

PCIe expansion card with a red heatsink and silver dual-slot bracket, shown on a white background.<br>

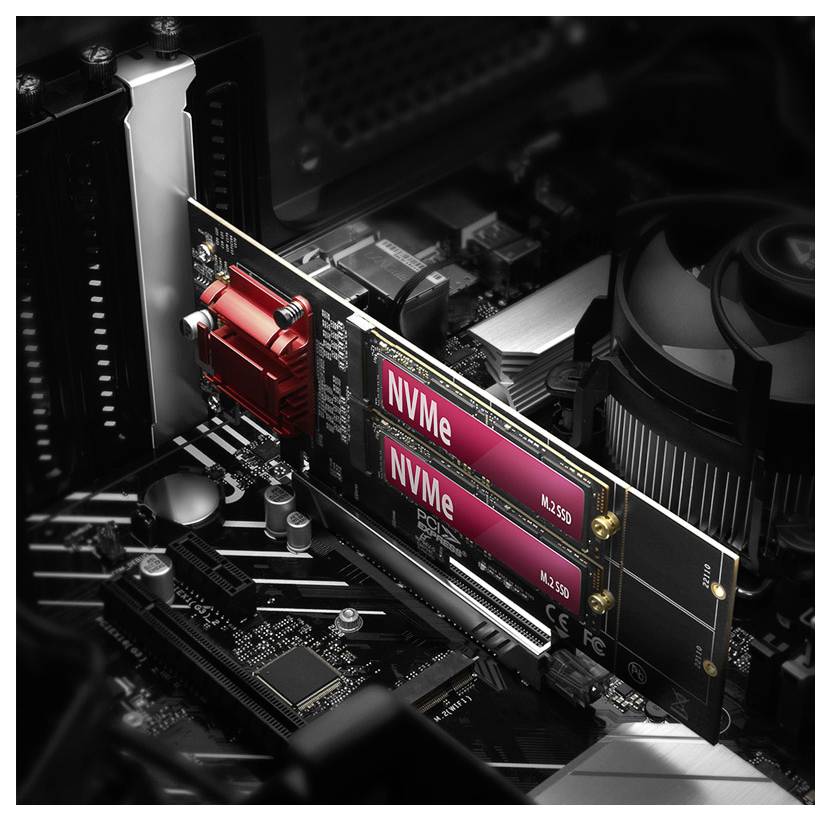

Close-up of a PC motherboard showing two NVMe M.2 SSDs installed, with a black graphics card cooling fan nearby.

Close-up of a computer motherboard with a dual NVMe SSD installed, showing a red heatsink and a cooling fan inside the PC case.

Product box for AXAGON PCIe adapter for 2x NVMe M.2 SSD, with support for motherboards without PCIe bifurcation.

AXAGON PCIe adapter for 2x NVMe M.2 SSD, with support for motherboards without PCIe bifurcation.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

AXAGON PCEM2-ND PCIe adapter for two M.2 SSDs

PCIe-3.0 expansion card
For additional installation of two M.2-SSDs
For x8 and x16 slots with 8 lanes

Technical specifications

Dimensions: 180 x 20 x 64 mm (W x H x D)
Material: Aluminium
Weight 75 g
Interface PCIe 3.0 x8
Supported M.2 SSD lengths: 2230 (22 x 30 mm) to 22110 (22 x 110 mm)
Supported drive interface: NVMe or SATA M.2 (M-Key)
Maximum disk capacity: No limit

Product type: M.2 controller

Slot: PCIe x8

Compatible with: 2230
2242
2260
2280
22110

Power supply: via bus

Specs: incl. slot panel

Port: 2 ports

Type: PCIe-3.0 expansion card

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3746360 AXAGON PCEM2-ND 2 ports M.2 controller PCIe x8 Compatible with: 2230, 2242, 2260, 2280, 22110 incl. slot panel

Description

With the AXAGON PCEM2-ND adapter for M.2 SSDs, you can easily extend your PC with two slots for M.2 SSDs. It is plugged into a PCI Express slot for this. This enables you a fast and reliable data connection. With the fast PCIe 3.0 interface you can transfer your data at 4 Gbit/s and saves you the annoying waiting while moving or copying your files.

It is installed in one of the expansion slots on your chassis. The PCIe adapter supports SW-RAID, which you can set up in the operating system with suitable software or with integrated tools. This keeps your data safe from being lost. Through the integrated passive heat sink the adapter remains well cooled at all times.

This text is machine translated.
