AXAGON Series Adapter [1x PCI Express - 4x RS232 socket]
EAN:
Part number:
Item no:
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 5 Piece(s) available
Highlights & Details

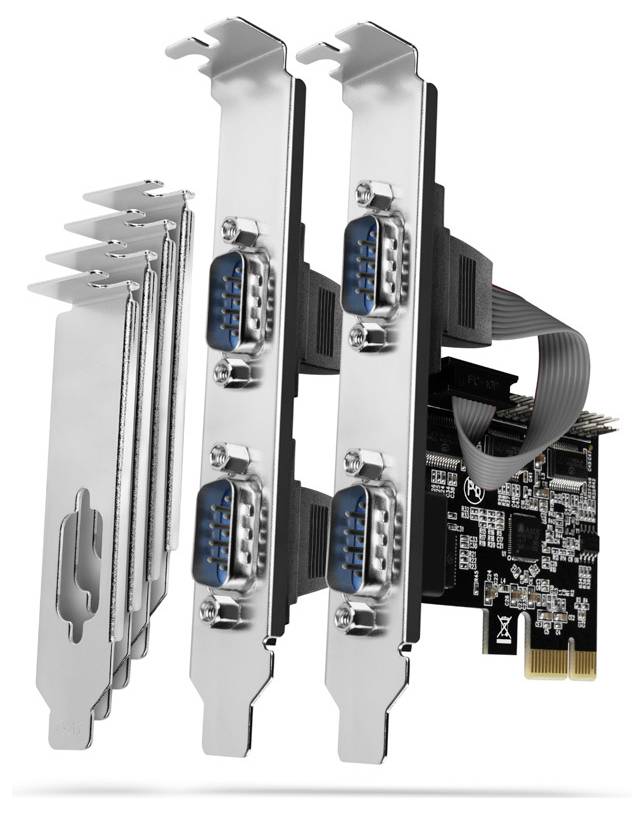

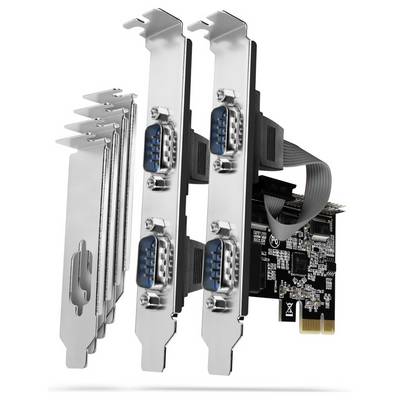

AXAGON PCEA-S4N PCIe-adapter with 4x serial ports - ASIX AX99100 chipset
- PCI adapter card with serial ports
- 4x RS-232 (DB9)
- With ASIX AX99100 chipset
- Supports PCIe 2.0 x1

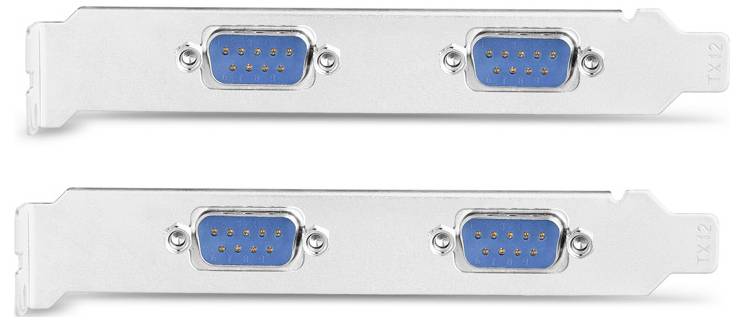

- Includes low-profile bracket
- This text is machine translated.
Technical specifications
- Input:
- PCIe-2.0 (compatible with PCI3 1.0a, 1.1, 2.1, 3.0, max. 5 GB/s)
- Lanes: X1 (compatible with x1, x4, x8, x16 PCI3 slots)
- Slot height: 2-slot (separate slot aperture for two serial ports, low-profile or standard)
- Outputs:
- Interface (serial): RS-232 with DB9 slot
- Speed 250 kBd, 250 kbit/s.
- Compatibility: 16C550, Extended 16C550, 16C950 UART
- Flow control: Xon/Xoff, hardware, none
- Word length: 5, 6, 7, 8, 9 bits
- Parity:even, odd, none, characters, space, 1, 1.5, 2 stop bits
- Buffer: 256-byte transmit & receive FIFO buffer for each port
- Supported signals: XD, RXD, RTS, CTS, DTR, DCD, DSR, RI
- Compatibility:
- Windows: 8 / 8.1 /10, server 2003 / 2008 / 2012 / 2016 (32- and 64-bit)
- Linux Kernel 2.6.11 and up
- Product type
Series Adapter
- Connection type
PCI Express
- No. of A connectors
1 x
- Type A
PCI Express
- No. of B connections
4 x
- Type B
RS232 socket
- Version
Adapter
- Cable use
Series
- Range of use
Serial/parallel port adapters
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742197 AXAGON Series Adapter [1x PCI Express - 4x RS232 socket]
