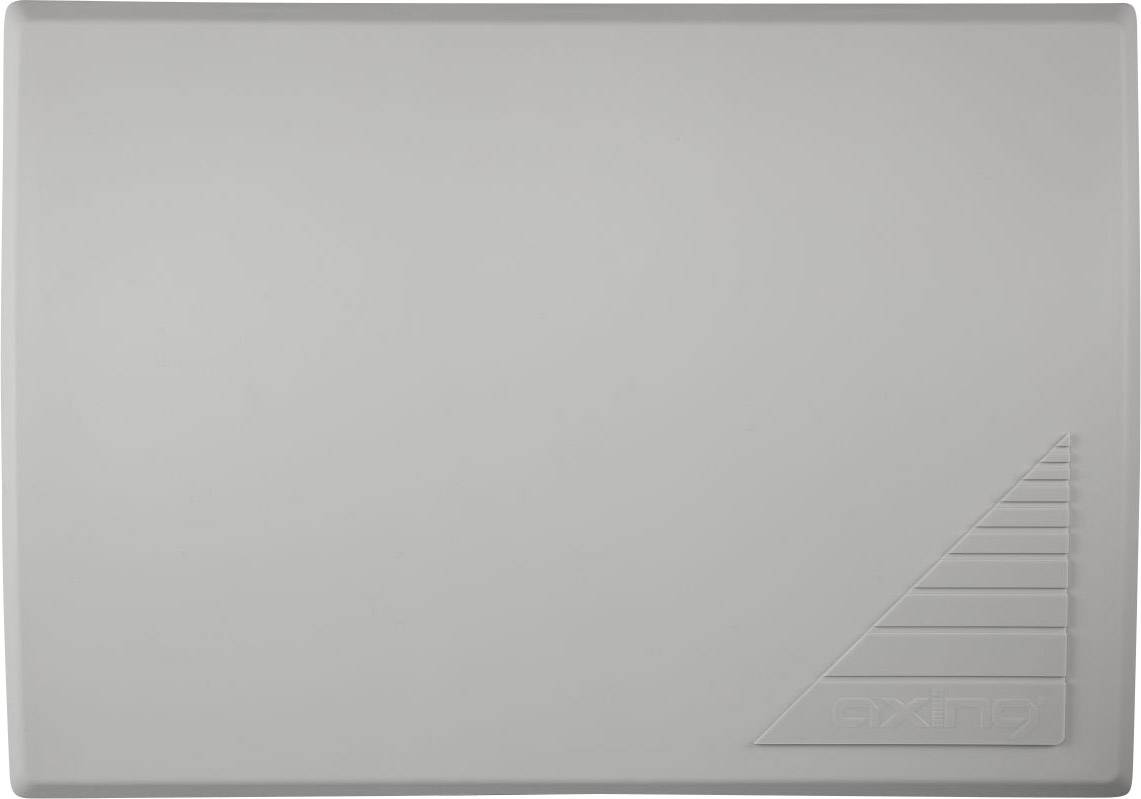

Axing TAA00320 DVB-T/T2 active planar antenna Indoors, Outdoors Amplification: 22 dB White
EAN:
Part number:
Item no:
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
DVB-T/T2/FM/DAB+ room and outdoor antenna
Highlights & Details
- For receiving digital terrestrial transmitter
- FM & DAB+ reception
- Suitable for indoor and outdoor use
- Protection class IP 35
Technical specifications
- Product type
DVB-T/T2 active planar antenna
- Used at
Indoors
Outdoors
- Dim
(L x W x H) 370 x 49 x 260 mm
- Length
370 mm
- Type
Planar antenna
- Reception
DVB-T (aerial)
DVB-T2 (aerial)
FM
DAB
DAB+
- Frequency range
85 - 774 MHz
- Weight
1.72 kg
- Factory colour
White
- Width
49 mm
- Height
260 mm
- Tuner
FM
DAB
DAB+
- Amplification
22 dB
Description

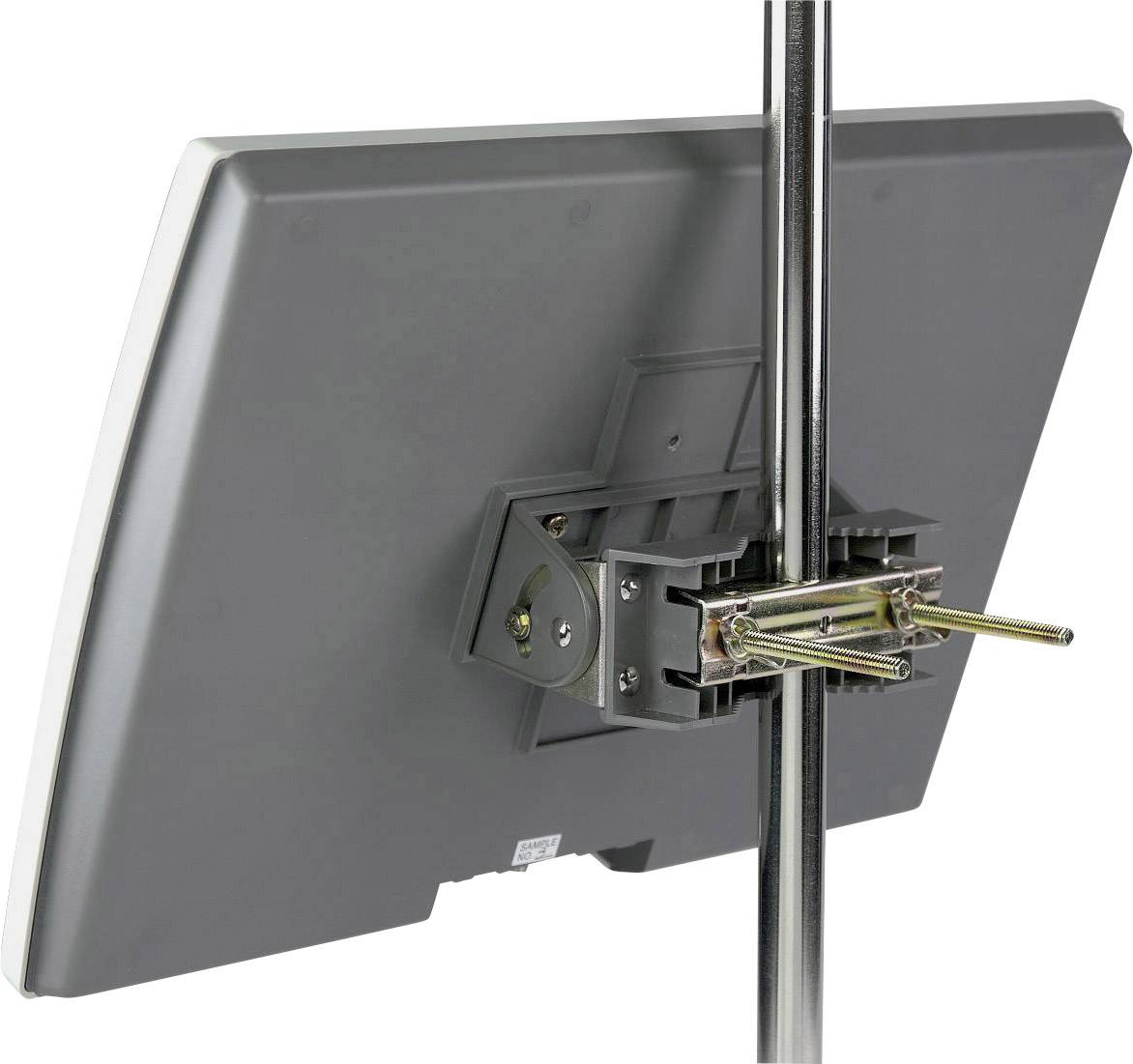

For receiving digital terrestrial transmitter including FM Universal use as indoor antenna (stand), for mast mounting or for wall mounting.
This text is machine translated.
This text is machine translated.
Features
- Frequency range 85 - 774000 Hz
- Connections: F-socket
- Impedance: 75 Ohm
- Amplification Ter: 22 dB
- Power supply voltage: 12V=/0.2A
- Supply voltage 5-12 V/DC
- Power consumption: 50mA
- Ambient temperature -20 - +50 °C
- Net weight of antenna: 1.72 kg
- Dimensions: 370x260x49 mm
- Protection class: IP35.

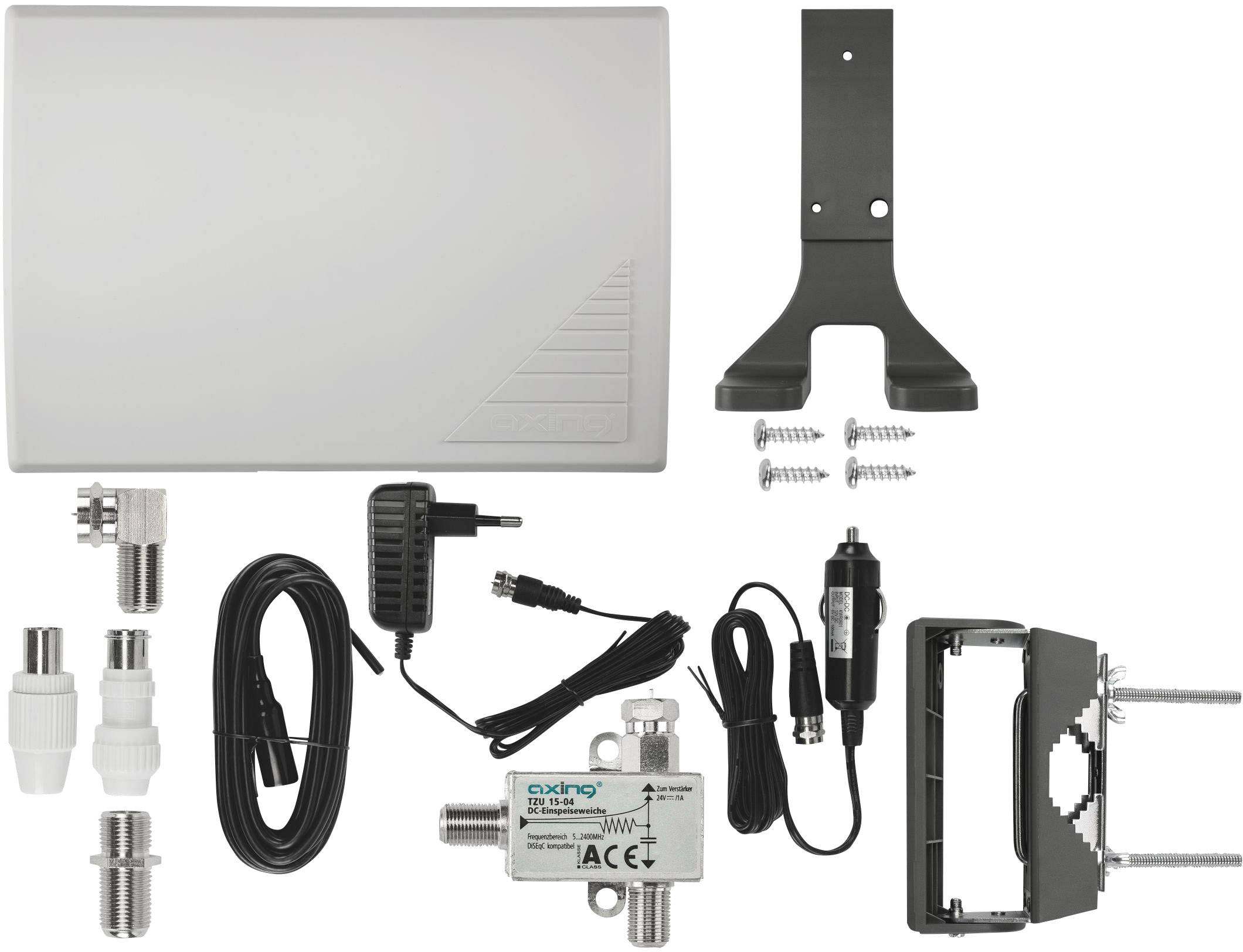

Scope of delivery
- Mast brackets
- Table base
- Coaxial Cables
- F-angle adapter.
- F/F adapter
- IEC connector
- KFZsupply cable/adapter
- Power supply unit
- Feed point.
