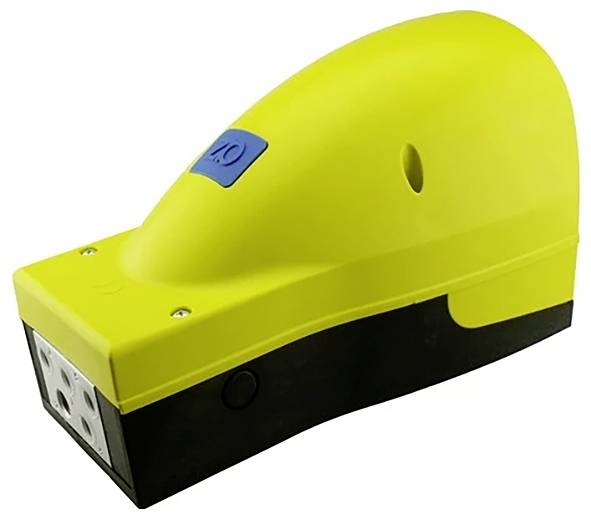

AZ Pneumatik Foot valve AZPED 502M AZPED 502M Enclosure material Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Operating medium
Filtered compressed air 50 µm, with or without lubrication
- Product type
Foot valve
- Enclosure material
Aluminium
- Connection
G 1/4
- Max. operating pressure
10 bar
- Operation
Pneumatic, with pedal
- Type
Bi-stable, latch
- Manufacturer part #
AZPED 502M
- Function
5/2-way
- Media temperature (range)
0 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
0 °C
- Nominal width
8 mm
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3400128 AZ Pneumatik Foot valve AZPED 502M AZPED 502M Enclosure material Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3400128 AZ Pneumatik Foot valve AZPED 502M AZPED 502M Enclosure material Aluminium 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
