B + B Thermo-Technik 0381 0015 0381 0015 Temperature and humidity sensor -40 up to 125 °C
EAN:
Part number:
Item no:
Temperature reading range (max.)
125 °C
Product type
Temperature and humidity sensor
Type
0381 0015
Humidity reading range (max.)
100 RH
Humidity reading range (min.)
0 RH
Datasheet (PDF)
9 Piece(s)
Sales and shipping:
Number
Total (€ 50.41 / piece)
€
Only 9 Piece(s) available
Highlights & Details

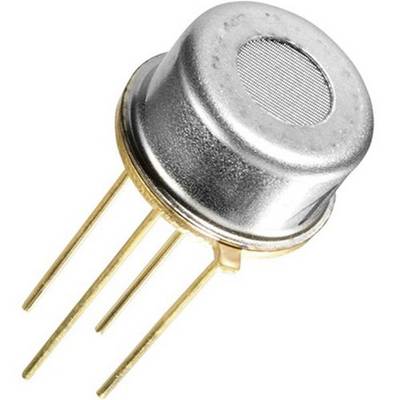

Digital humidity/temperature sensor HYT 939
- Digital interface: I²C, address 0x 28; connection: TO 39 Footprint
Technical specifications
- Accuracy: ±0.2 °C (0 - +60°C); ±1.8% RH at +23 °C (0 - 90% RH)
- Type
0381 0015
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
125 °C
- Temperature reading range
-40 up to 125 °C
- Min. operating voltage
2.7 V
- Max. operating voltage
5.5 V
- Operating voltage
2.7 - 5.5 V
- Height
5.2 mm
- (Ø)
9 mm
- Dim
(Ø x H) 9 mm x 5.2 mm
- Product type
Temperature and humidity sensor
Documents & Downloads
Datasheet
Datasheet 2135041 B + B Thermo-Technik 0381 0015 0381 0015 Temperature and humidity sensor -40 up to 125 °C
Description
Precision, reliability and long-term stability are our digital humidity and temperature sensors with I²C interface.
