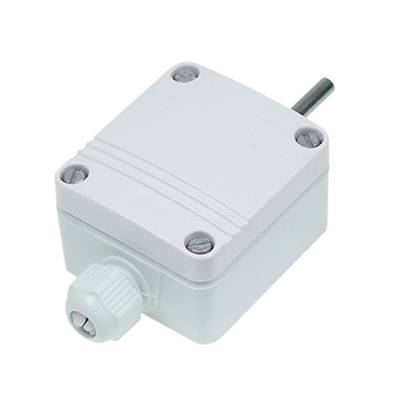

B + B Thermo-Technik 0551 1210 Outdoor sensor -40 up to +125 °C
EAN:
Part number:
Item no:
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
14-day return policy included
Highlights & Details
Outdoor sensor Temperature | 4...20 mA | Without display
- -40 up to +125 °C
- Screw terminals
Technical specifications
- Cable gland M16x1.5
- Clamping range 6.0...9.5 mm
- Response time temperature > 20 s
- Output signal 4 - 20 mA
- Operating voltage 16 - 24 V DC
- Working temperature of the sensor tip
- -40...+125 °C.
- Operating temperature of case: -30...+70 °C
- Housing: Plastic housing
- 59 x 65 x 38 mm
- Accuracy ±0.2 K (0...90 °C)
- ±0.5 K (-40...+125 °C)
- Sleeve diameter 12 mm
- Sleeve length 45 mm
- Sleeve material: Stainless steel 1.4571
- Scaling adjustable via DIP switches
- Protective filter
- Polyethylene: 25 µm
- Ø 12 x 30 mm
- Sensor: Digital humidity/temperature sensor
- Temperature drift of the measurement electronics
- ±0.01% / K referring to 23 °C.
- Environmental data: RoHS and REACH compliant
- Product type
Outdoor sensor
- Pick-up time (details)
12
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
+125 °C
- Dim
(Ø) 12 mm
- Probe length
45 mm
- Connector
Screw terminals
- Temperature reading range
-40 up to +125 °C
- (Ø)
12 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089207 B + B Thermo-Technik 0551 1210 Outdoor sensor -40 up to +125 °C
Description
High-quality and precise sensor with integrated measuring transducer in the AF design for building management systems or industrial applications Measuring variables: Temperature, humidity Optionally with display output signal 0-10V or 4-20mA
