B + B Thermo-Technik 0625 0389 Immersion probe -50 up to +300 °C Sensor type Pt1000
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 10 Piece(s) available
Highlights & Details

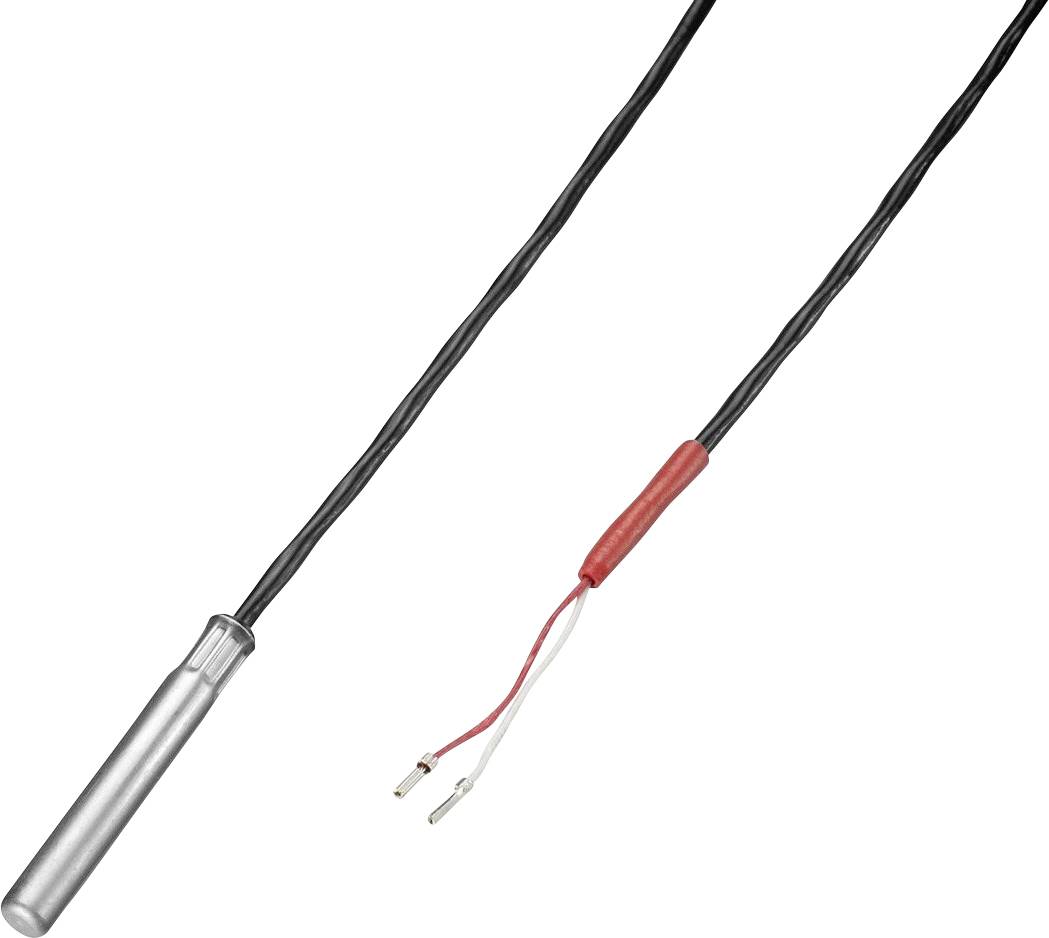

Cable sensor 1xPt1000/B/2 PTFE
- Sensor type Pt1000
- -50 up to +300 °C
- Open end cable
Technical specifications
- Stainless steel sleeve Ø 6 mm, L 40 mm
- Connection cable PTFE length 2000 mm
- Product type
Immersion probe
- Sensor type
Pt1000
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
+300 °C
- Dim
(Ø x L) 6 mm x 2040 mm
Manufacturer's standards (no certificate)
- Connector
Open end cable
- Weight
100 g
- Temperature reading range
-50 up to +300 °C
- Length
2040 mm
- (Ø)
6 mm
Documents & Downloads
Datasheet
Datasheet 125039 B + B Thermo-Technik 0625 0389 Immersion probe -50 up to +300 °C Sensor type Pt1000
User & Safety Instructions
User & Safety Instructions 125039 B + B Thermo-Technik 0625 0389 Immersion probe -50 up to +300 °C Sensor type Pt1000
Description
The cable temperature sensor measures the temperature using a sensor Pt 1000 within the protection sleeve and is ideal for use in collectors.
This text is machine translated.
This text is machine translated.
Features
- Protection class IP67
- Protective sleeve stainless steel 1.4404
- Dielectric withstanding voltage 2 kV
- Connection cable with PTFE-coated.
